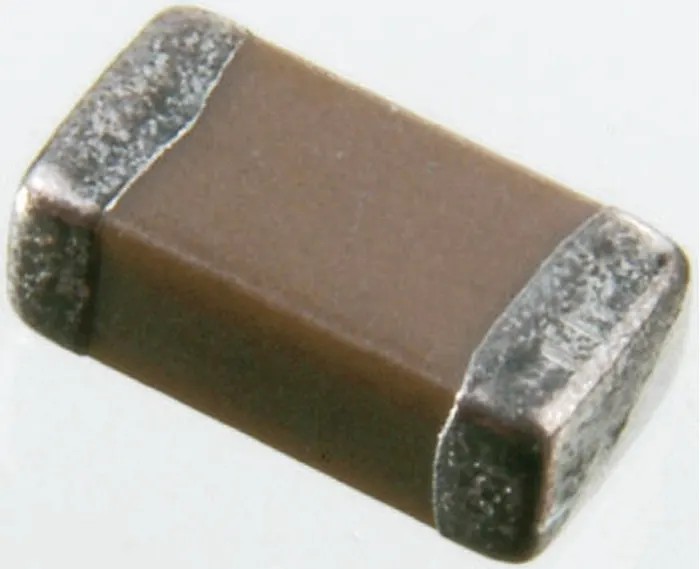

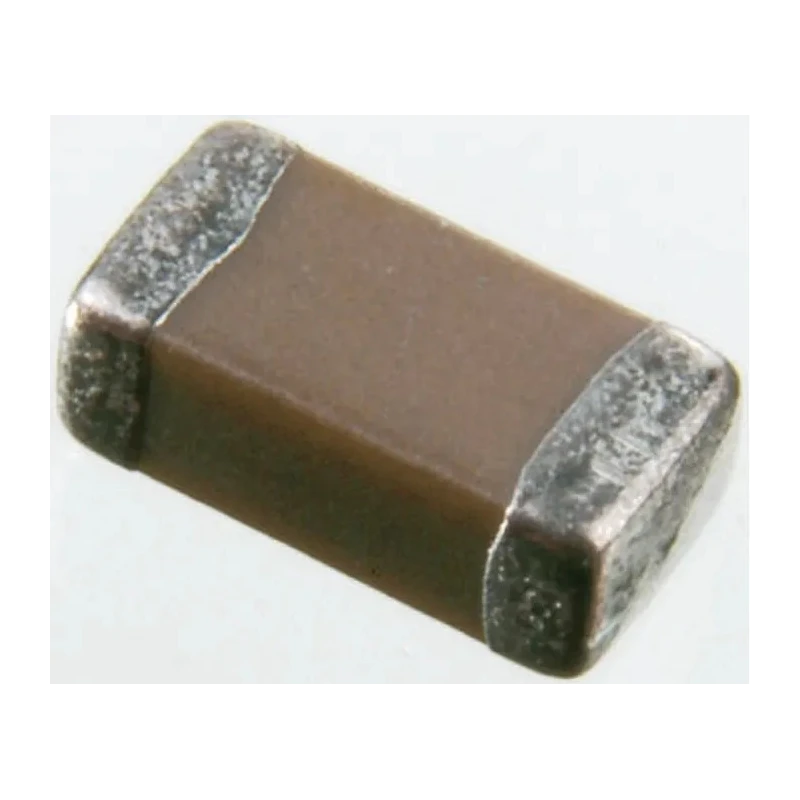

KYOCERA AVX Multilayer Ceramic Capacitor 56pF, 500V DC, Surface Mount, ±10% Tolerance, C0G Dielectric, 1206 12067A560KAT2A

The KYOCERA AVX 12067A560KAT2A Multilayer Ceramic Capacitor is a high reliability electronic component designed for precise circuit control in industrial, electronics, and laboratory applications. This capacitor features a 56pF capacitance with a 500V DC voltage rating, making it suitable for high voltage and signal integrity requirements. Its surface mount configuration in a 1206 package offers easy integration into compact PCB layouts, supporting high-density circuit design.

Equipped with a C0G dielectric, the capacitor delivers excellent temperature stability and low capacitance drift across the full operating range of -55°C to 125°C. The ±10% tolerance ensures accuracy and repeatability in sensitive electronic circuits, while the reel packaging supports automated assembly lines for efficient installation.

Industrial applications benefit from the capacitor's low leakage and robust construction, allowing its use in snubber circuits, high frequency power converter resonators, and DC coupling/blocking environments. The high voltage chip exhibits low ESRs at high frequencies, maintaining performance under demanding electronic conditions.

Its 1206 package is recognized for compatibility with standard surface mount processes, and the C0G (NP0) dielectric is favored for temperature compensating tasks in EIA Class I ceramic materials. This model aligns with temperature-stable requirements, making it an essential part of advanced signal processing and power management systems.

Each capacitor undergoes stringent quality standards, with no automotive or specific industry approvals, and is designed for universal applicability in electronics manufacturing, industrial machines, laboratory setups, and research environments. Applications include signal filtering, voltage decoupling, snubber networks, and coupling for SMPS and high-voltage circuits.
