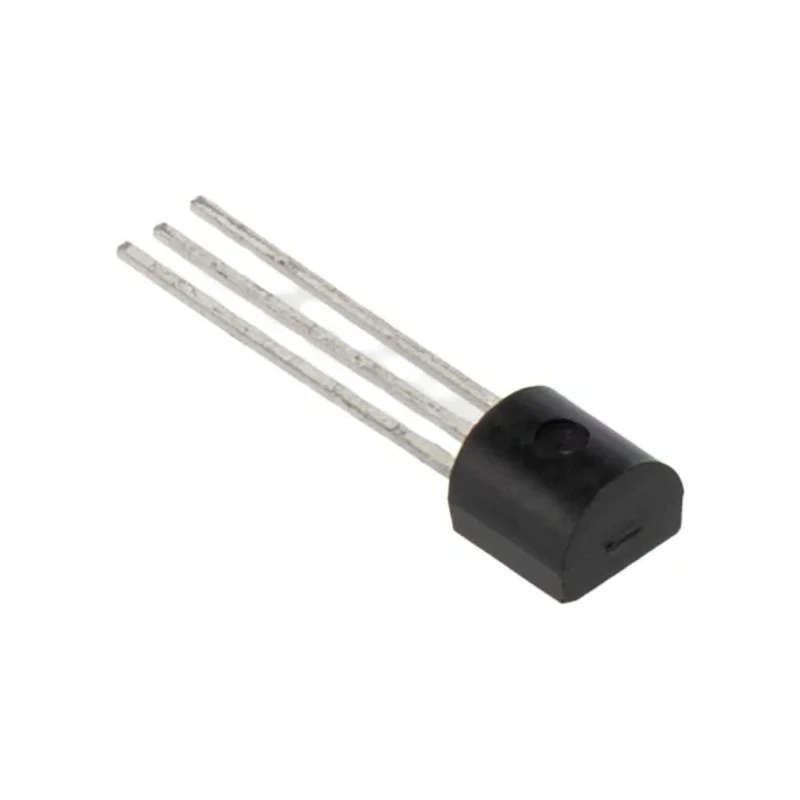

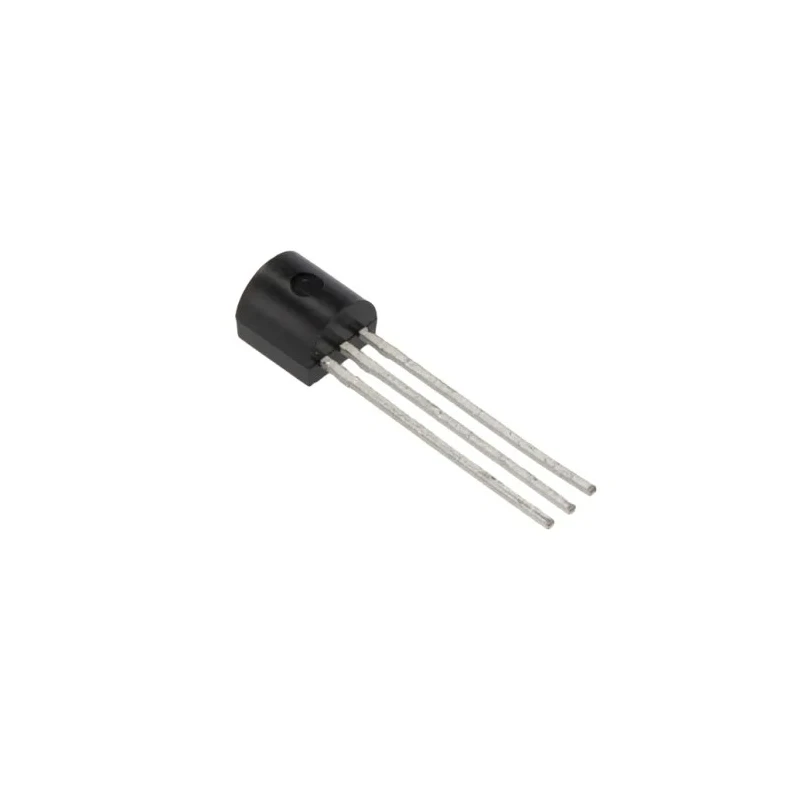

Microchip Voltage Output Temperature Sensor, Analogue, Accuracy ±1°C, TO-92 Package MCP9700

Microchip MCP9700-E/TO is a voltage output, analogue temperature sensor designed to deliver accurate temperature measurements across a broad range of environments. Featuring a compact TO-92 package, this sensor is ideal for through hole PCB mounting in both industrial and consumer applications.

This device delivers a voltage signal directly proportional to temperature, with a sensor gain of 10mV per degree Celsius. With an accuracy of ±1°C, it ensures reliable monitoring for critical operations such as thermal management of office equipment, home appliances, entertainment systems, hard disk drives, battery packs, and other electronic devices.

The MCP9700-E/TO operates within a supply voltage range of 2.3V to 5.5V, making it compatible with a variety of circuit designs. Its wide operating temperature range from -40°C to 125°C offers flexibility for environments with varying thermal demands. The sensor’s 3-pin TO-92 package supports easy integration and secure through hole mounting on PCBs.

Resistance to parasitic capacitance and the ability to drive large capacitive loads make the MCP9700 series thermistor ICs robust for precision temperature measurements. The device is designed for analogue interfaces, simplifying integration into temperature sensing circuits without the complexity of digital protocols.

Applications include temperature control in manufacturing, laboratory instrumentation, HVAC systems, commercial equipment, and diverse embedded electronics needing precise temperature feedback.

With its proven reliability, wide electrical compatibility, and compact footprint, the Microchip MCP9700-E/TO is a preferred sensor for designers targeting efficient and accurate thermal management. Explore more Temperature Sensors from Microchip in the Electronics & Electricals category at EnvMart.
