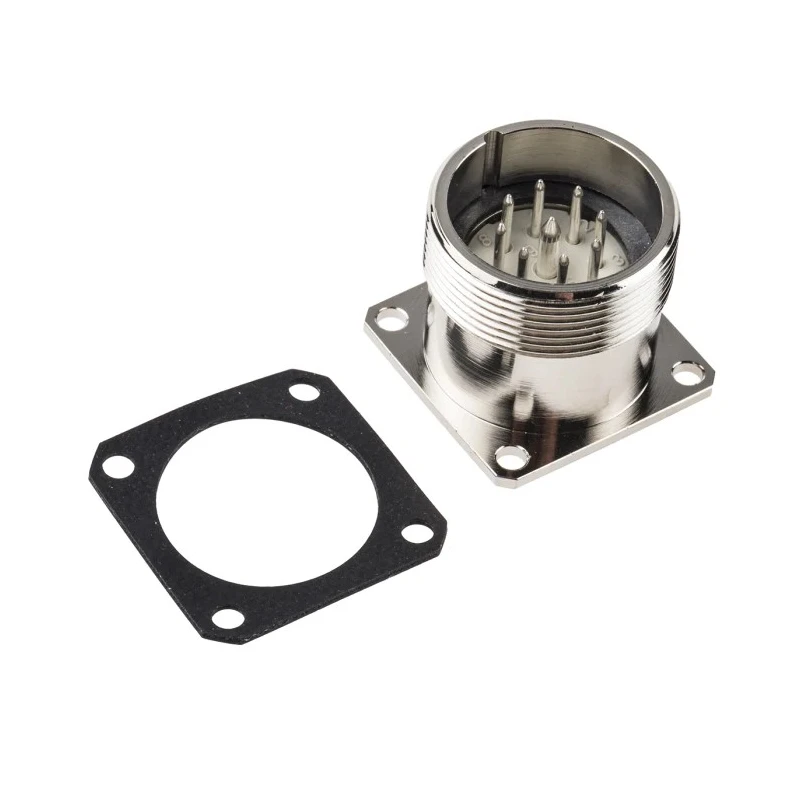

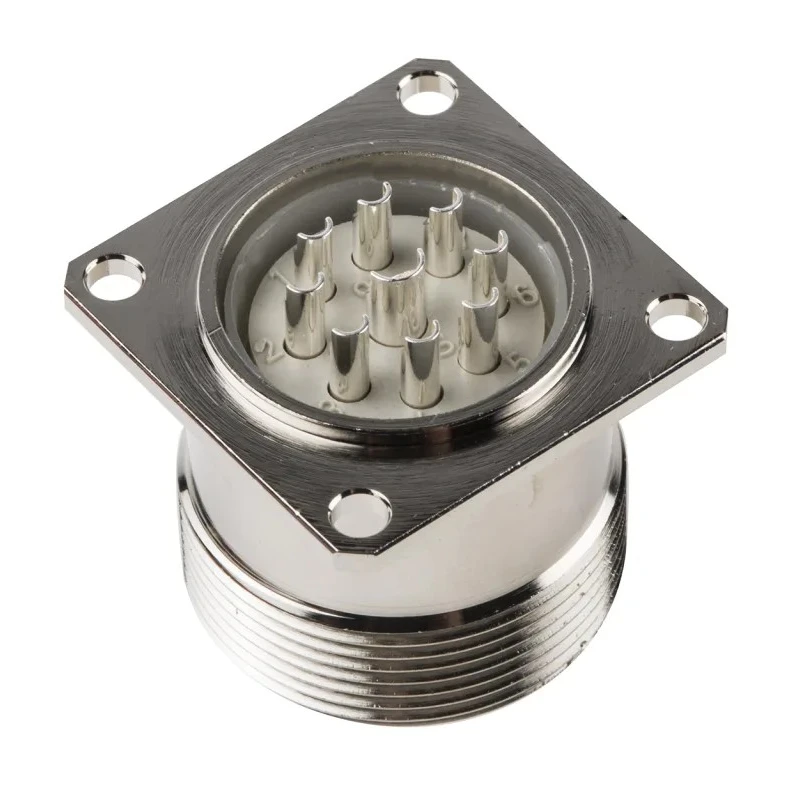

Lapp Circular Connector, 9 Contacts, Panel Mount, 19.5 mm, Plug, Male, IP65, EPIC R Series 50101200+00008764

Lapp 50101200+00008764 Circular Connector is a high-performance EPIC R Series industrial connector designed for panel mounting in demanding environments. Its compact design integrates 9 contacts within a 19.5 mm shell, allowing for efficient space utilization where installation space is limited. The panel mount flange provides a robust interface for secure mechanical attachment to control panels, equipment, and machinery.

This connector features a screw locking mating system, ensuring a stable and vibration-resistant electrical connection. Its copper alloy housing with nickel plating offers excellent mechanical protection and corrosion resistance, making it suitable for industrial signal and power applications where reliability is critical.

The IP65 ingress protection rating means the connector is dust-tight and resistant to low-pressure water sprays, supporting use both indoors and in exposed open-air installations. The solder termination ensures secure electrical contact and compatibility with a wide range of signal cabling setups.

Operating over a temperature range from -40°C to +125°C, the connector meets the demands of machine and equipment manufacturing, measurement and control technology, and automation projects. Its straight orientation and male plug configuration are compatible with corresponding cable-mount sockets - panel-mount shells with pin inserts mate only with cable-mount shells with socket inserts, ensuring correct assembly and system integration.

Applications include industrial signal transmission, multicore cable connections, automation systems, equipment control panels, and measurement technologies. The compact profile, mechanical robustness, and environmental resistance make it suitable for dynamic and static machine installations.

Features a robust flange for secure panel mounting and mechanical protection. Compact size allows for efficient space utilization in industrial applications. High contact density within a 19.5 mm connector shell. Screw locking mating system ensures reliable electrical connection.

IP65 rating for dust-tightness and resistance to low-pressure water spray. Suitable for multicore cabling, signal, and power transmission. Operates across a wide temperature range from -40°C to +125°C. Male plug contact configuration for compatibility with matching cable-mount sockets.

This connector is a valued component for professional users in industrial manufacturing, process automation, laboratory electronics, and commercial equipment integration. Browse more Lapp EPIC R Series connectors and accessories in the Industrial Circular Connector category on EnvMart.
