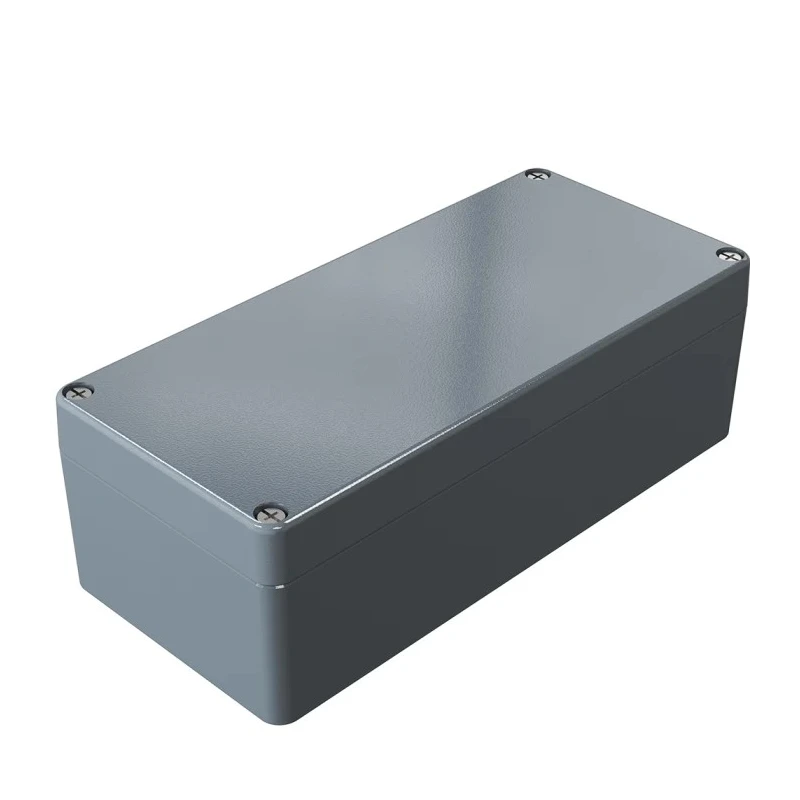

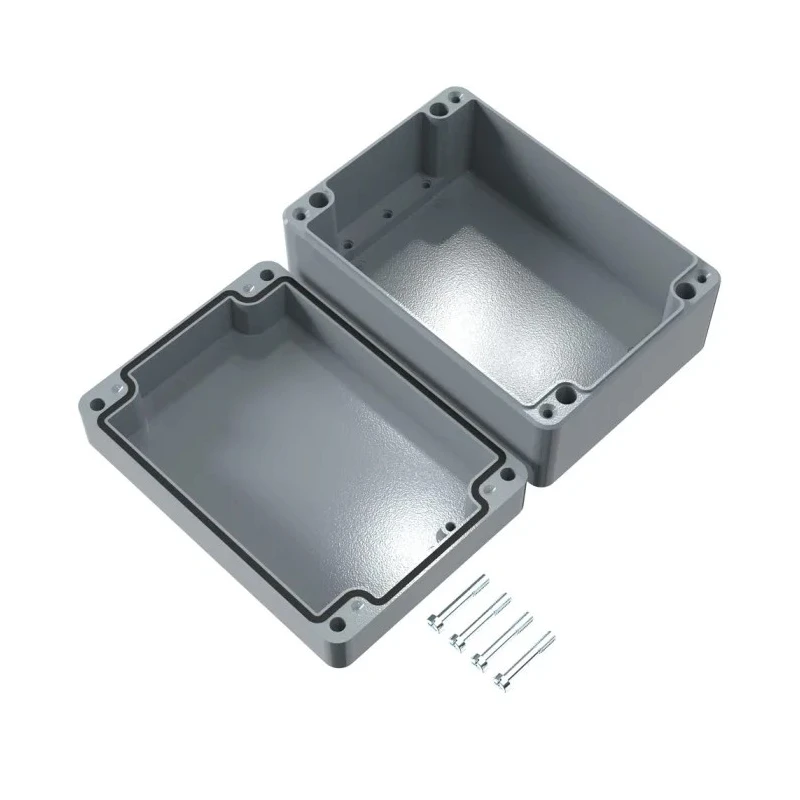

Rose Aluminium Standard Series Die Cast Aluminium Enclosure, IP66, IK09, 200x140x200 mm, Grey Lid 01142009

Rose model 01142009 is an Aluminium Standard Series Die Cast Enclosure engineered for reliability and protection of sensitive electronic components in industrial, laboratory, and commercial settings. This enclosure is constructed from high-quality die cast aluminium, providing superior resistance to corrosion, wear, and environmental stresses. With external dimensions of 200mm height, 140mm width, and 200mm length, it offers optimal capacity for printed circuit boards, relays, and other small devices. The enclosure features a grey polyurethane gasket, ensuring a sealed barrier against dust and high-pressure water jets, and operates across a wide temperature range from -40°C to +90°C.

The enclosure is IP66 rated, guaranteeing full dust-tightness and protection against strong jets of water, making it suitable for both indoor and outdoor installations. An IK09 impact rating ensures the housing can withstand mechanical shocks up to 7 joules, offering enhanced safety and robustness. The die-cast construction provides uniform shielding against electromagnetic interference (EMI), maintaining electronic integrity even in electrically noisy environments. The enclosure incorporates captive screws to securely fix the lid, preventing unauthorized access and facilitating easy maintenance.

Compliant with UL508 and Maritime hazardous area certifications, this enclosure meets high standards for safety in demanding industrial applications. Its lightweight design at 1.6kg means minimal strain on mounting structures, making it ideal for telecommunication equipment, solar power systems, cable management, and laboratory installations. Polyurethane gasketing maintains performance over extended use, withstanding temperature extremes and chemical exposure.

Typical industrial use cases include protection for control electronics, terminator blocks, interface modules, and custom PCBs in environments that require mechanical robustness and consistent shielding from electromagnetic interference.

Die cast aluminium ensures longevity and corrosion resistance in industrial applications. Wide temperature range (-40°C to +90°C) suitable for harsh operating conditions. IP66 and IK09 ratings for comprehensive environmental and mechanical protection.

Shielded against EMI for electronic reliability. UL508, Maritime, and EN 60079-0 certifications facilitate deployment in hazardous or explosive atmospheres. Captive screw system minimizes tampering and enables efficient component servicing.

Ideal for telecommunications, renewable energy, laboratory, and manufacturing roles. Browse more Rose enclosures and advanced industrial protection solutions in the General Purpose Enclosure category at EnvMart.
