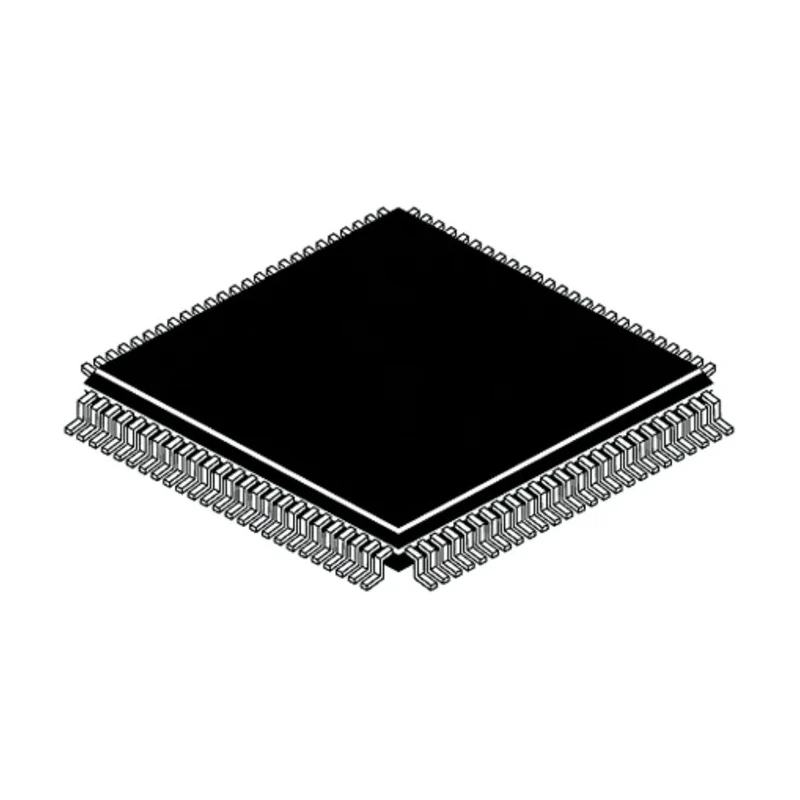

Texas Instruments 16-bit Microcontroller 8 MHz 256 B RAM 60 KB Flash 100-Pin LQFP MSP430F449IPZ

The Texas Instruments MSP430F449IPZ is a high-performance, ultra-low-power 16-bit microcontroller designed to meet the demanding requirements of embedded systems across industrial, medical, metering, and portable device applications.

As part of the MSP430F4xx series, this microcontroller leverages a robust RISC architecture for efficient computation and minimal energy consumption. Its integrated LCD controller and peripheral mix enable advanced display functionalities, making it ideal for metering applications and medical instruments. With an 8 MHz maximum clock frequency, the device allows swift operation while maintaining a very low power profile, supported by a range of dedicated low-power modes and fast standby wake-up (< 6 μs).

The MSP430F449IPZ features 256 bytes of RAM and 60 KB of FLASH program memory, providing ample storage for embedded code and data. The device boasts a serial interface, 48 programmable I/Os, and up to 10 timers, allowing designers to tailor hardware control and integration for complex system requirements.

Designed in a compact 100-pin LQFP surface-mount package, the microcontroller measures 14.2 mm × 14.2 mm × 1.45 mm, facilitating easy PCB assembly in space-constrained designs. Operating from a supply voltage range of 1.8 V to 3.6 V, this device delivers reliable performance across a wide spectrum of power sources and battery-operated products.

Additional features include 8 × 12-bit ADC channels, an analogue comparator, and compatibility with serial interfaces. The architecture supports rapid development of wireless, industrial, and portable electronics with a strong developer ecosystem through the MSP430 platform.

Industrial use cases span smart meters, portable medical equipment, consumer electronics, low-power wireless modules, and test instrumentation, thanks to the product's capability for efficient control and data acquisition.

Operates at up to 8 MHz clock frequency for efficient processing performance. Features 256 bytes RAM and 60 KB Flash memory for program and data storage. Provides a 16-bit RISC architecture ideal for low-power and portable solutions.

Includes integrated LCD controller suitable for metering and medical devices. Surface mount package type (LQFP) with 100 pins ensures easy integration in PCBs. Operates with a supply voltage range from 1.8 V to 3.6 V for flexible power management.

Supports 48 programmable I/O pins for versatile interfacing options. Offers multiple low-power modes and fast wake-up capability from standby. Explore more Microcontroller solutions from Texas Instruments and other brands in the EnvMart catalog for industrial and laboratory electronics projects.
