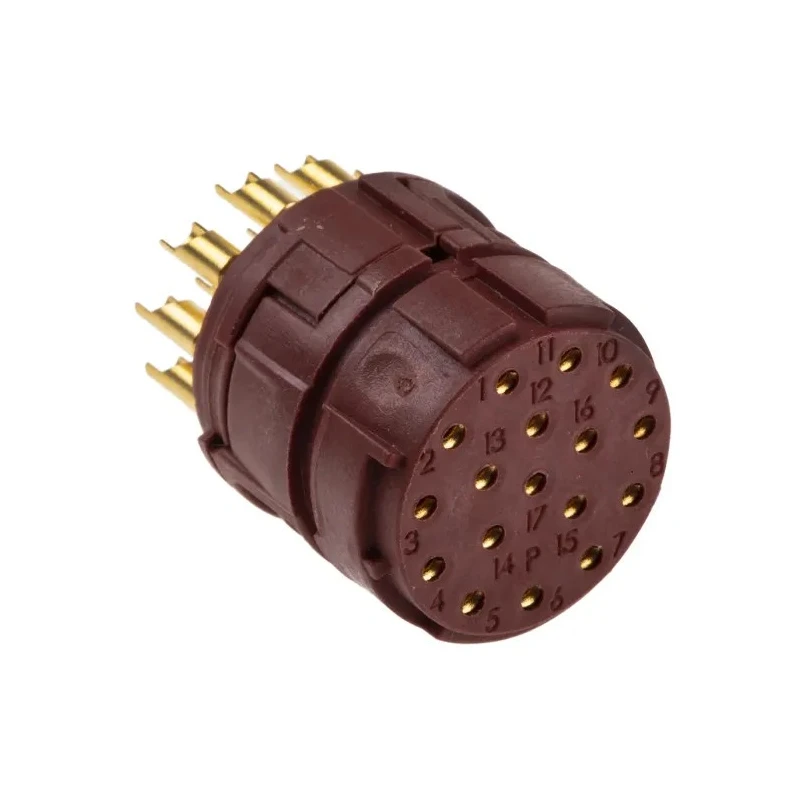

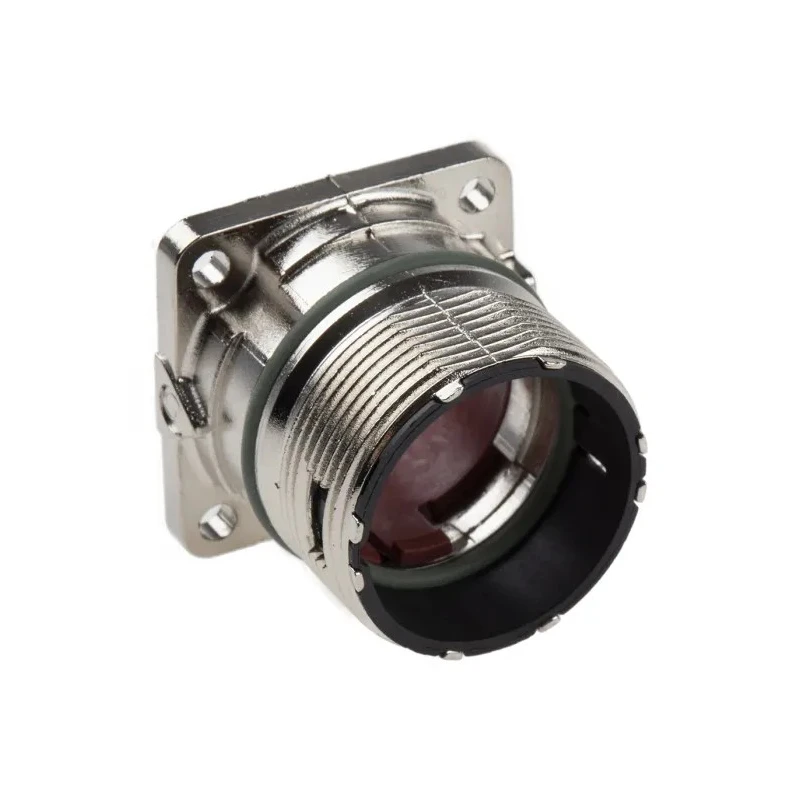

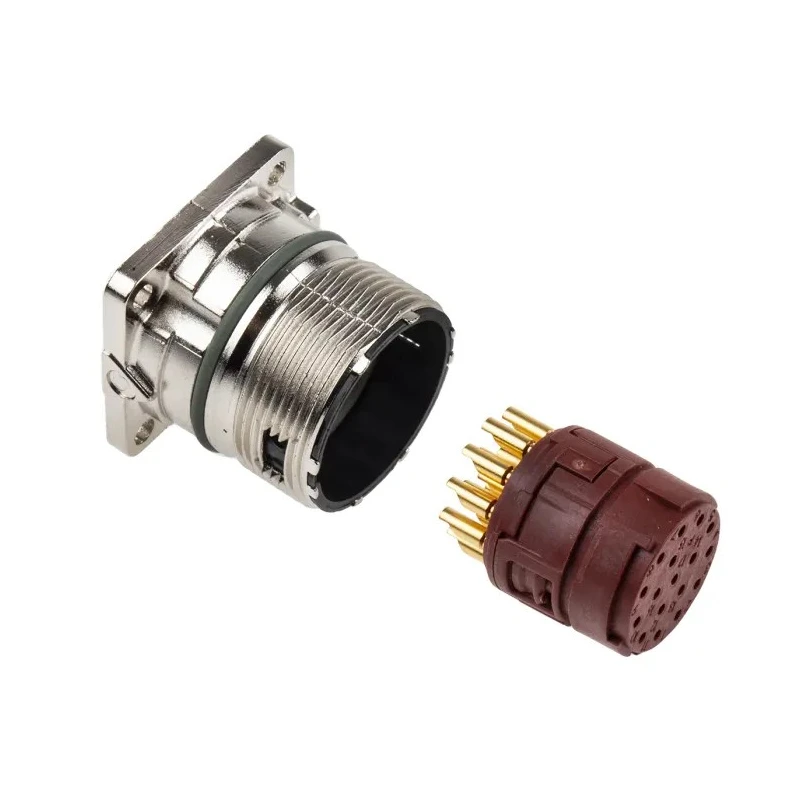

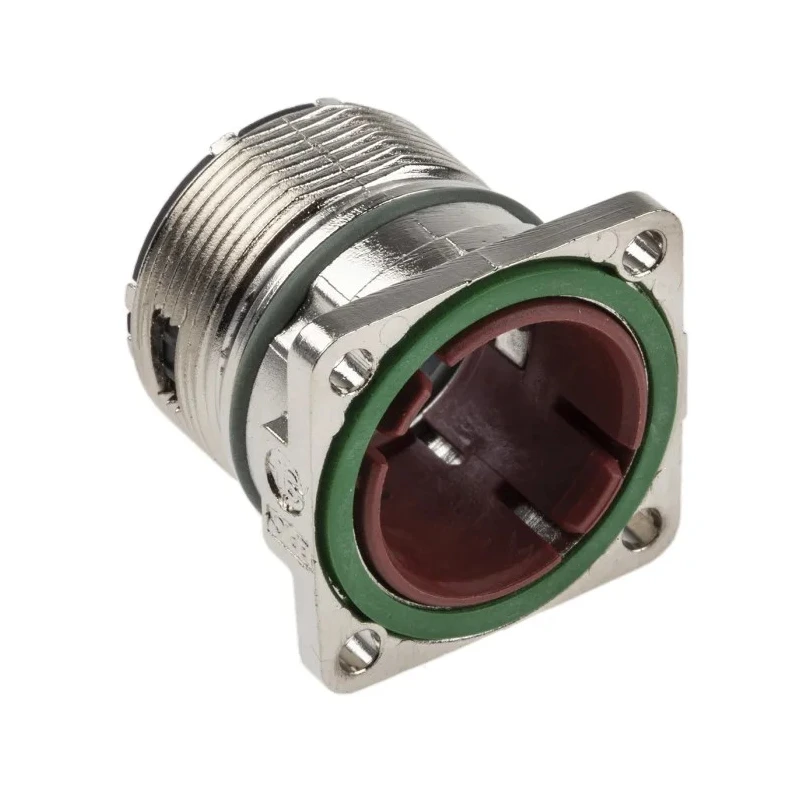

Lapp EPIC CIRCON M23 Circular Connector, Panel Mount, 17 Contacts, Socket, Female, IP68, 7A, 50V, 25.6 72004000 + 73018000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 50.0V |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7A |
| Model | 72004000 + 73018000 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Zinc |
| Contact Material | Copper |
| Series | EPIC CIRCON |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | DIN EN61984 |
| Pole Format | 17 |
| Contact Plating | Gold |
| Number of Contacts | 17 |
| Contact Gender | Female |
| Shell Size | 25.6 mm |
| Mating Type | Keyed |
| Connector Size | M23 |
| Plug/Socket | Socket |
| Coding | N |
Key Features
- High-quality circular connector, ideal for industrial applications.
- M23 form factor with 17 contacts ensures robust connectivity.
- Panel mount design allows secure installation for machinery and relay systems.
- Female socket type provides reliable mating for signal and power transmission.
- IP68 rating offers superior protection against dust and water ingress.
- Zinc housing delivers mechanical strength and resistance to corrosion.
- Supports maximum current of 7A and voltage up to 50V.
- Gold-plated copper contacts enhance electrical performance and durability.
Product Description
The Lapp 72004000 + 73018000 EPIC CIRCON M23 Circular Connector is engineered for demanding industrial environments. Featuring a panel mount configuration and accommodating 17 contacts in a compact M23 size, this socket connector is designed for quick, secure attachment in machinery, relay panels, and automation equipment. The female socket gender ensures compatibility with corresponding plug assemblies and streamlines both signal and power wiring requirements.
Utilizing a zinc housing, the connector resists mechanical impacts and corrosion, making it suitable for vibration-prone and harsh environments. The IP68 protection class guarantees sealing against dust and water when mated, supporting continuous operation even in wet or dirty conditions. Easy to assemble, the connector includes an indented area for color coding rings, facilitating cable management and fast identification during maintenance.
Electrical capabilities include a maximum current rating of 7A and voltage tolerance of up to 50V, making it fit for a wide range of instrumentation, control systems, and power distribution tasks. Gold-plated copper contacts are used to ensure low contact resistance and extended life cycle. Its keyed mating design prevents misconnection, reinforcing both operational safety and equipment uptime.
With solder termination and a straight orientation, installation is straightforward for technicians using standard tools. Operating temperatures range from -25°C to 125°C, accommodating both indoor and outdoor applications. The connector shell size is 25.6 mm, and the housing meets DIN EN61984 standards for industrial connectors.
Typical use cases include manufacturing automation, robotics, industrial machinery, and process control in environments requiring secure panel mounting and reliable connectivity. The connector is especially suitable for applications subjected to frequent vibrations, moisture, and EMI exposure.
Explore other Lapp connectors and accessories in the Industrial Circular Connector category to build resilient end-to-end wiring systems. Lapp's EPIC CIRCON series is trusted across industries for its quality, durability, and versatile mounting options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum current of 7A and a voltage of up to 50V.
It has an IP68 rating, providing superior protection against dust and water ingress when mated.
The housing is made of zinc, and the contacts are made of copper with gold plating.
The operating temperature range is from -25°C to 125°C, making it suitable for various environments.
This model features 17 contacts in its design.
It uses solder termination, which allows for secure connections during installation.
The shell size of this connector is 25.6 mm.
Yes, it is suitable for outdoor applications due to its IP68 rating and wide operating temperature range.
It supports panel mount installation, allowing for secure attachment in machinery and relay systems.
The connector features a keyed mating design, which prevents misconnection and enhances operational safety.
It meets the DIN EN61984 standards for industrial connectors.
It is typically used in manufacturing automation, robotics, industrial machinery, and process control environments.
