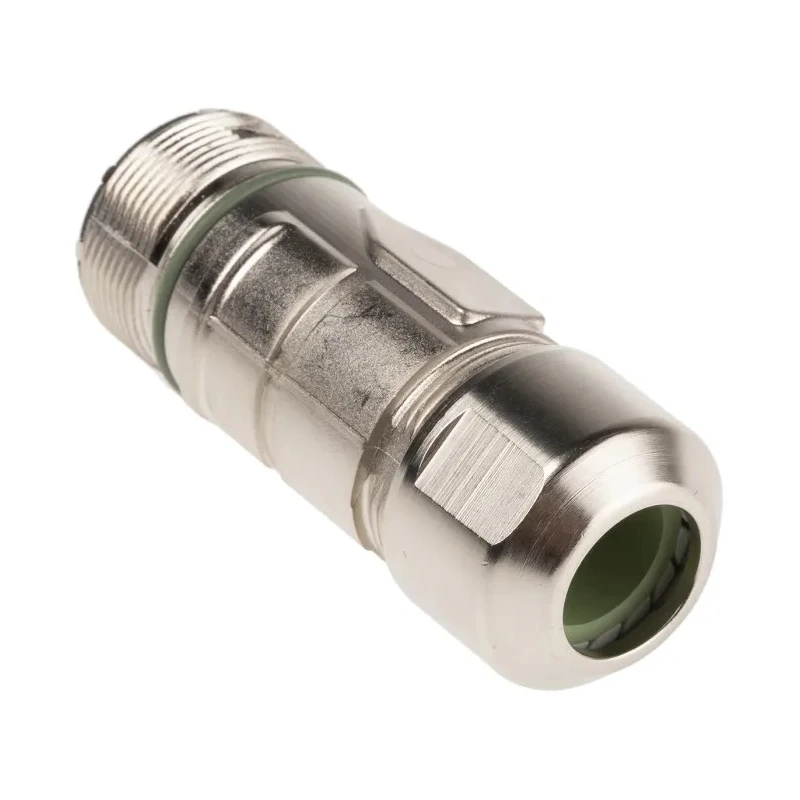

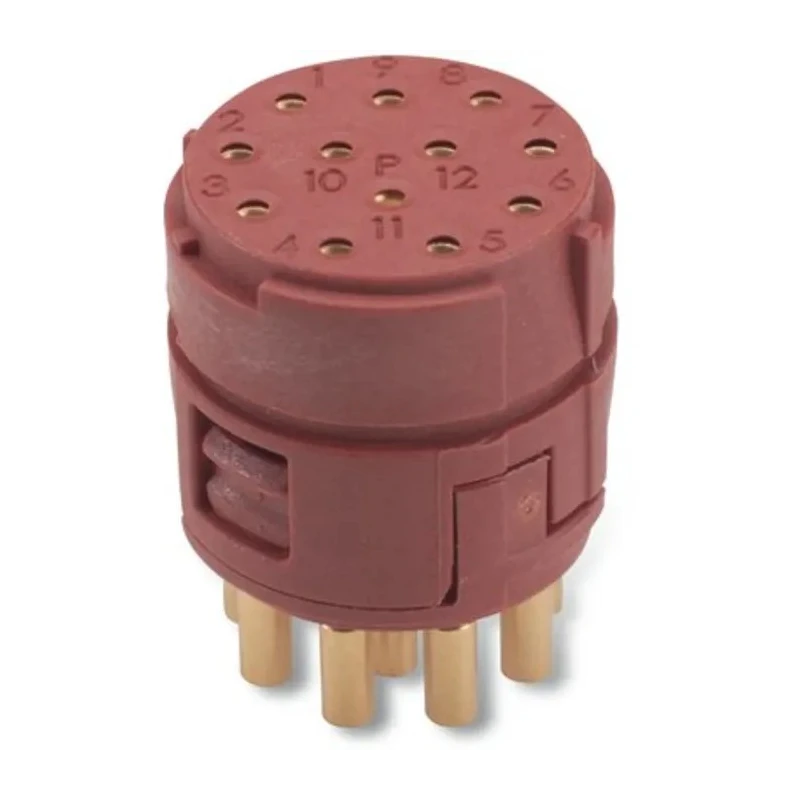

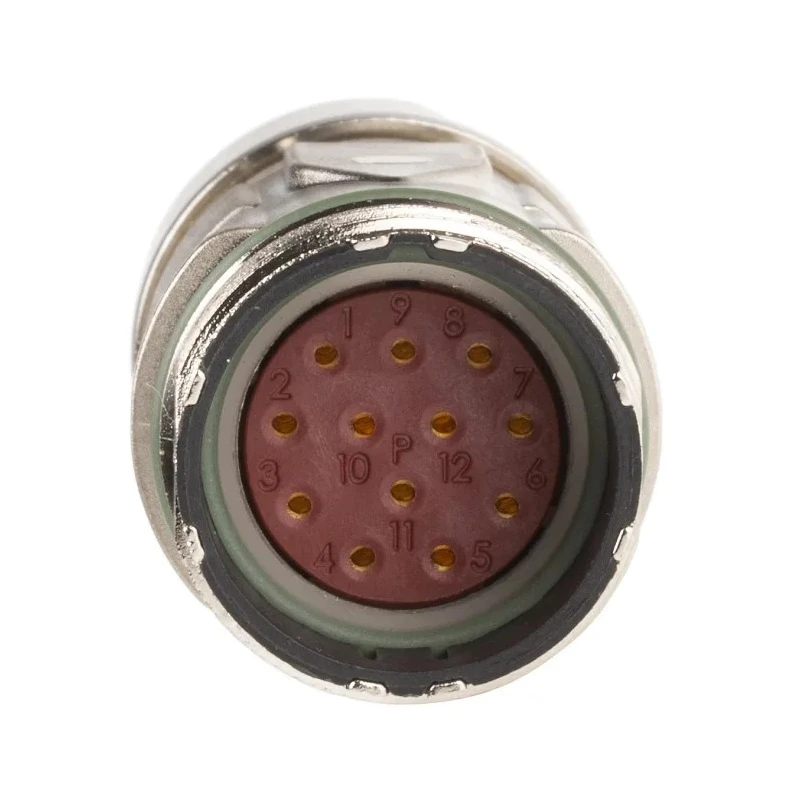

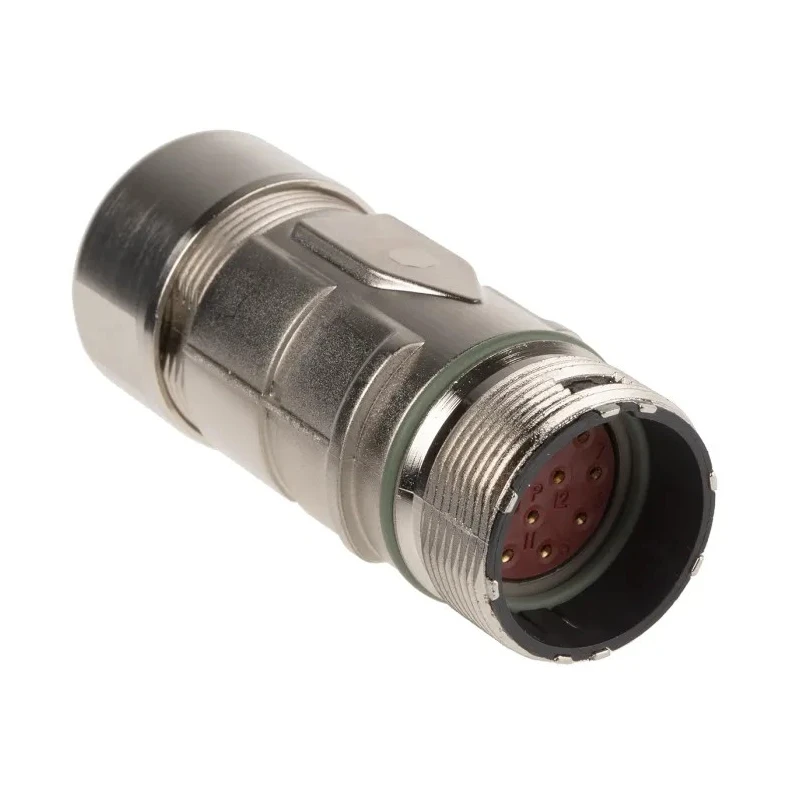

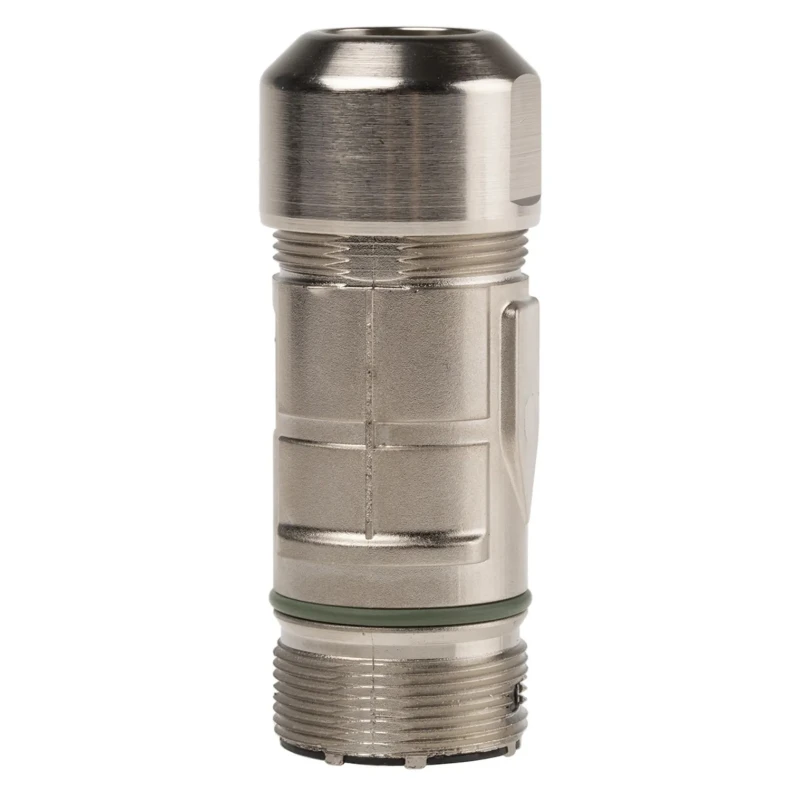

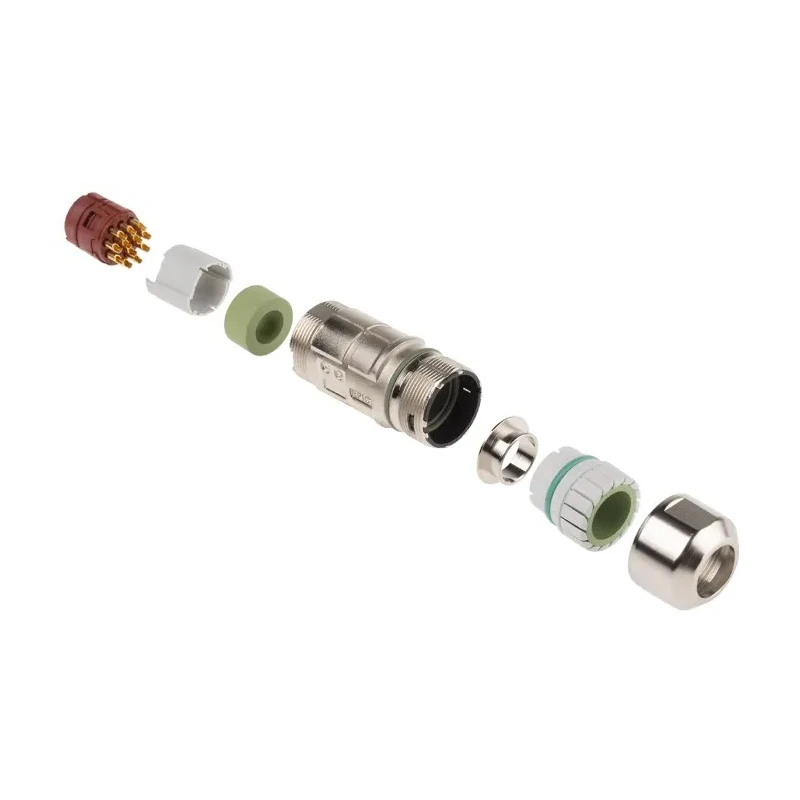

Lapp SIGNAL M23 Circular Connector, 12 Contacts, Cable Mount, Female Socket, , M23, Nickel Plated Zinc, 100V, 7A, -25°C IP68
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 100.0V |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7A |
| Model | IP68 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Nickel Plated Zinc |
| Contact Material | Brass |
| Series | SIGNAL M23 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 12 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Shell Size | M23 |
| Mating Type | Keyed |
| Connector Size | M23 |
| Plug/Socket | Socket |
| Coding | N |
Key Features
- Rugged circular connector with 12 gold-plated contacts for reliable signal transmission.
- Cable mount design with straight orientation and keyed mating for secure installation.
- IP68 rated housing for dust and moisture protection in industrial environments.
- Nickel plated zinc shell and brass contacts ensure corrosion resistance and durability.
- Supports up to 100V and 7A per contact, suitable for high power and signal applications.
- Operating temperature range from -25°C to 125°C for demanding conditions.
- Solder termination with female socket configuration for versatile use in automation and plant engineering.
Product Description
The Lapp SIGNAL M23 Circular Connector, model 44420040 + 73002716, is designed for robust and reliable electrical connections in challenging industrial environments. This connector features a cable mount female socket format with 12 gold-plated contacts, providing excellent conductivity and signal integrity. Its keyed straight orientation ensures correct mating every time, making installation straightforward and secure.
The IP68 rating guarantees the connector is fully protected against dust ingress and immersion in water, making it suitable for both indoor and outdoor use in harsh conditions. The nickel plated zinc housing offers superior corrosion resistance, while the brass contact material and gold plating further enhance durability and electrical performance. This combination ensures years of reliable operation under demanding industrial circumstances.
With a voltage rating of 100V and supporting currents of up to 7A per contact, the SIGNAL M23 connector is ideal for both power and signal applications. Its solder termination enables a solid, low-resistance connection and compatibility with a wide range of cable types. The connector’s wide operating temperature range from -25°C to 125°C makes it suitable for environments with extreme heat or cold.
Applications for this connector include automation systems, plant engineering, servo cable interconnections, encoders, measurement and control technology, wind energy installations, and mechanical industry setups. The keyed design prevents incorrect mating and enhances installation reliability. This product is particularly well suited for assemblies requiring rugged, waterproof connectors built to exacting standards.
In summary, the Lapp SIGNAL M23 Circular Connector 44420040 + 73002716 is a high-performance, industrial-grade socket that delivers robust connectivity, effective environmental sealing, and versatile installation features, making it a trusted choice across industrial, laboratory, and commercial use cases. Explore more solutions in Industrial Circular Connectors from Lapp and find compatible accessories in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage of 100V and a current of up to 7A per contact.
It operates within a temperature range of -25°C to 125°C, making it suitable for extreme conditions.
The housing is made of nickel plated zinc, while the contacts are brass with gold plating for improved conductivity.
It has an IP68 rating, providing full protection against dust ingress and immersion in water.
This connector features 12 contacts, designed for reliable signal transmission.
It utilizes a solder termination type, allowing for a solid connection with various cable types.
The connector has a straight orientation, which facilitates straightforward installation.
Yes, due to its IP68 rating, it is suitable for both indoor and outdoor applications in harsh environments.
It is suitable for automation systems, plant engineering, servo cable interconnections, and measurement technology.
It features a keyed mating type, ensuring correct alignment and secure installation.
The shell size is M23, which is a standard size for circular connectors in industrial applications.
The connector is manufactured in Germany.
