MEC IP67 Sealed Tactile Push Button Switch Green/Red 10.4mm, SPST, 50mA, 24V DC, Surface Mount



Category Push Button Switches Brand MEC Condition New

Specifications

Country of Origin	Denmark
Brand	MEC
Height	10.4mm
Length	14mm
Model	IP67
IP Rating	IP67
Width	10.3mm
Mount Type	Surface
Series	4F
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Green, Red
Actuator Length	10.4mm
Contact DC Voltage	24V dc
Actuator Style	Push Button
Actuator Orientation	Right Angle
Switch Contact Current	50mA
Operating Force	2.5N
Mechanical Life	10000000Operations

Key Features

Sealed to IP67 standard for enhanced dust and water resistance.
Green and red illuminated push button actuators for clear visual indication.
SPST contact configuration ensures dependable low voltage switching.
Rated for 50mA at 24V DC, ideal for signaling and control circuits.
Momentary operation and surface mount design facilitate easy PCB integration.
Right angle actuator orientation improves accessibility on boards.
Integrated high intensity LEDs provide strong illumination feedback.
Mechanical life of 10 million operations guarantees durability.

Product Description

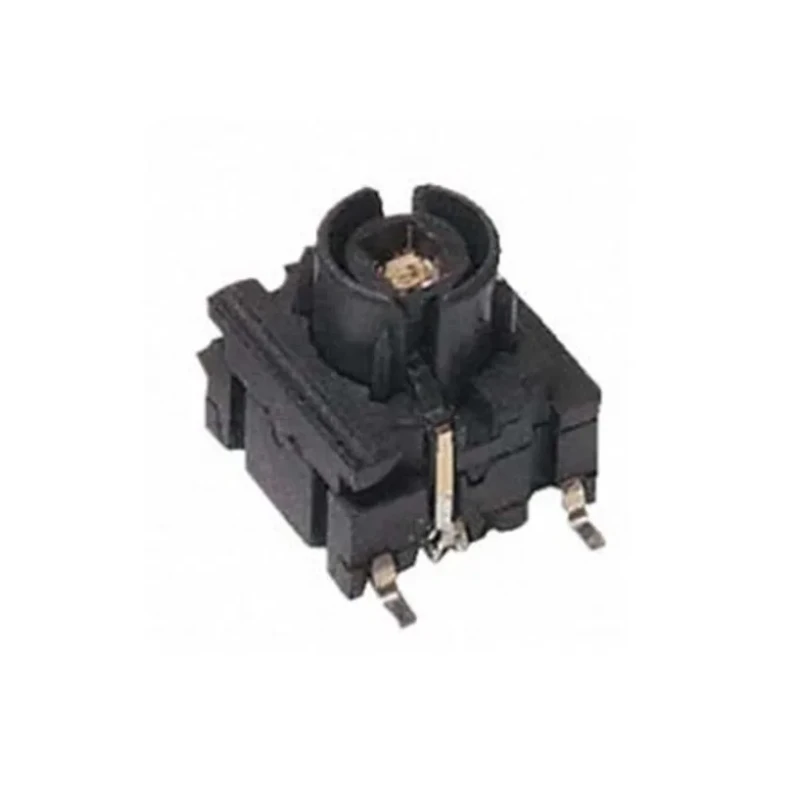

The MEC 4FSH98222 is an IP67 sealed tactile push button switch engineered for demanding industrial and electronic applications. Its green and red illuminated actuators are designed for clear signal indication within control panels, instrumentation interfaces, and embedded systems.

This switch features a single pole, single throw (SPST) contact arrangement suited for signalling and low current switching tasks, with a rated current of 50mA at 24V DC. It provides momentary operation, activating upon press and reverting on release - ideal for applications that require immediate actuation feedback or momentary controls.

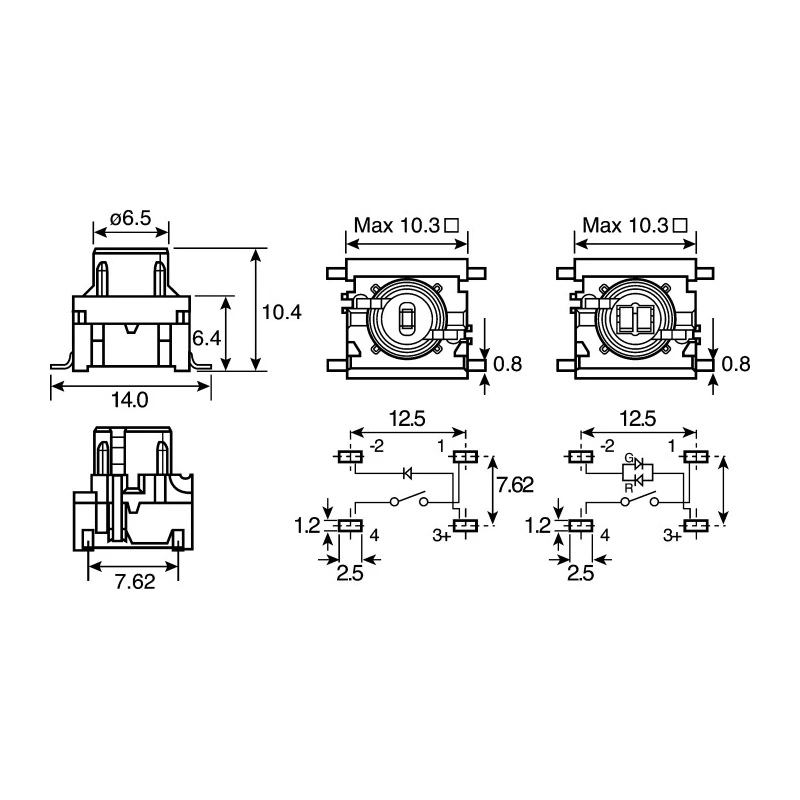

The actuator is a push button style, oriented at a right angle for ergonomic access and efficient PCB mounting. With dimensions of 10.4mm length and 10.3mm width, and a total length of 14mm, it is compact yet robust for high-density layouts.

Integrated high-intensity LEDs offer strong visual feedback, enhancing the user's interface experience in environments where illumination is critical. The switch is surface mount compatible, enabling straightforward integration in automated assembly lines and reliable placement on modern PCBs.

The device is sealed to IP67, making it resistant to dust ingress and water immersion, suitable for harsh industrial, laboratory, humidity-sensitive, and outdoor environments. Its mechanical life is rated at ten million operations, ensuring exceptional durability and long-term reliability.

Additional technical highlights include an operating force of 2.5N for a positive tactile feel, operational temperature range from -40°C to 125°C, RoHS compliance, and a Multimec illumec 4F series pedigree for proven performance.

This tactile switch is ideal for use in automation controls, instrumentation, communication equipment, medical devices, laboratory electronics, and commercial equipment requiring robust, illuminated interface components. Its IP67 rating and high cycle life suit applications in industrial, instrumentation, and control panel settings.
