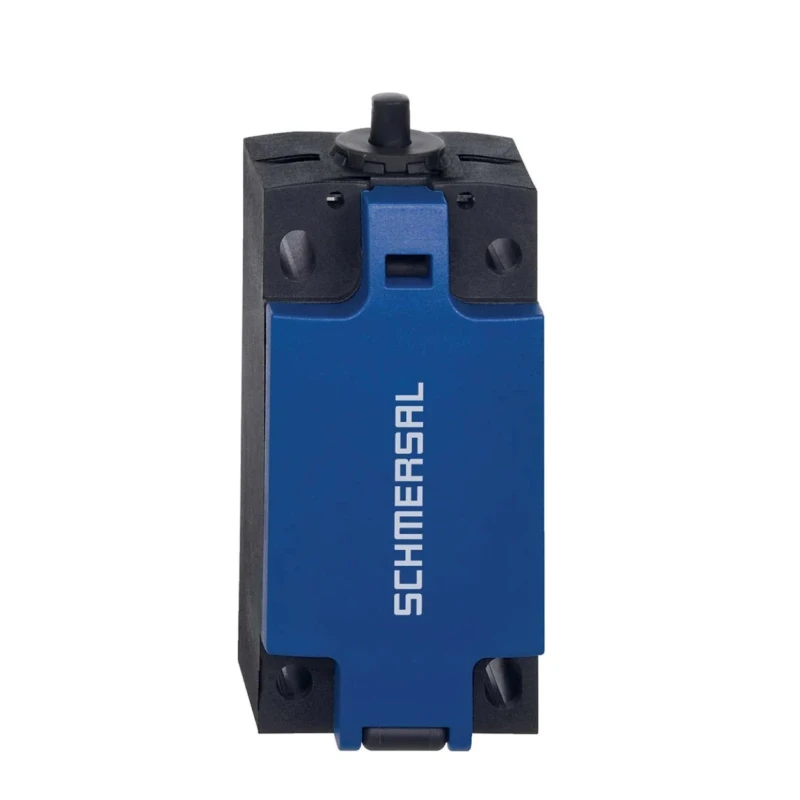

Schmersal PS316-T12-S200 Series Plunger Limit Switch 1 NO/2 NC IP67 IP66 Plastic Fibreglass Housing 103015419
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| Length | 37mm |
| IP Rating | IP67, IP66 |
| Width | 41mm |
| Housing Material | Plastic, Fibreglass Reinforced |
| Protection Class | IP66, IP67 |
| Standards | ISO 13849-1 |
| Series | PS316-T12-S200 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 NO/2 NC |
| Actuator Type | Plunger |
| Contact Type | Silver |
| Minimum Operating Temperature | -30°C |
| Switching Current | 15.3A |
| Terminal type | Screw |
| Hazardous Area Certification | EAC, cULus, CCC |
| Operating Force | 50N |
| Mechanical Life | 10000000Operations |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | 1 x M20 x 1.5 |
| Mechanical life, minimum | 10,000,000 Operations |
| B10d Normally-closed contact (NC) | 20,000,000 Operations |
Key Features
- Features IP67 and IP66 protection for use in harsh environments.
- Equipped with 1 NO and 2 NC silver contacts for versatile integration.
- Durable plastic and fibreglass reinforced housing for improved longevity.
- Capable of switching up to 15.3A AC or DC with screw terminal connection.
- Mechanical life rated at 10 million operations for high reliability.
- Operating temperature spans -30°C to 80°C for wide ambient compatibility.
- Supports both AC (up to 240V) and DC (24V) voltages in control panels.
- Plunger actuator ensures accurate position sensing in automation systems.
Product Description
Schmersal 103015419 PS316-T12-S200 is a highly reliable plunger limit switch, designed for precise position sensing and control in industrial automation systems. The switch incorporates a robust enclosure made from plastic and fibreglass reinforced material, providing superior mechanical strength and protection against dust and water ingress with IP67 and IP66 ratings.
This model features a creep circuit element switching principle, fitted with one normally open and two normally closed silver contacts. It facilitates flexible wiring options using screw terminal connections and supports both AC and DC switching: up to 15.3A, 240V AC, or 24V DC. The switch boasts an exceptional mechanical life of 10 million cycles, ensuring long-term reliability for demanding applications.
Designed for operation within a broad temperature range from -30°C to 80°C, it easily adapts to various industrial environments. The actuator type is a precision plunger, enabling accurate detection of mechanical motion, ideal for applications in automation, machinery safety interlocks, process control, and manufacturing lines.
Meeting the requirements of IEC 60947-5-1 and ISO 13849-1 safety standards, this limit switch is certified for hazardous area use under EAC, cULus, and CCC approval, further assuring its suitability for regulated installations. The electrical contacts utilize silver, providing reliable conductivity and low resistance through millions of cycles.
The overall dimensions of the device are compact, with a body measuring 37 mm in length and 41 mm in width, making it easy to integrate into control panels or machine frames. The M20 conduit entry streamlines cable management. An operating force of 50N guarantees secure actuation and prevents inadvertent triggering.
Schmersal PS316-T12-S200 Series limit switches are widely employed in electrical automation, industrial machinery, packaging lines, robotics, material handling systems, and safety interlock controls, delivering dependable electrical switching under the toughest conditions.
Explore more automation components and industrial Limit Switches under the Schmersal brand in the EnvMart catalog for advanced control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schmersal PS316-T12-S200 limit switch can switch up to 15.3A for both AC and DC applications.
This model features IP67 and IP66 protection, making it suitable for harsh environments with dust and water exposure.
It operates effectively within a temperature range of -30°C to 80°C, allowing for use in various industrial conditions.
The switch is equipped with a plunger actuator, which enables accurate position sensing in automation systems.
It has a mechanical life rated for 10 million operations, ensuring high reliability in demanding applications.
This model features a contact configuration of 1 normally open (NO) and 2 normally closed (NC) silver contacts.
The overall dimensions of the device are 37 mm in length and 41 mm in width, making it compact for integration.
It utilizes screw terminal connections, facilitating flexible wiring options during installation.
It is certified for hazardous area use under EAC, cULus, and CCC approvals, meeting safety standards for regulated installations.
The operating force for this limit switch is 50N, ensuring secure actuation while preventing inadvertent triggering.
This model meets the requirements of IEC 60947-5-1 and ISO 13849-1 safety standards, ensuring its suitability for industrial applications.
It is designed for use in industrial automation, machinery safety interlocks, process control, and manufacturing lines, particularly in harsh environments.
