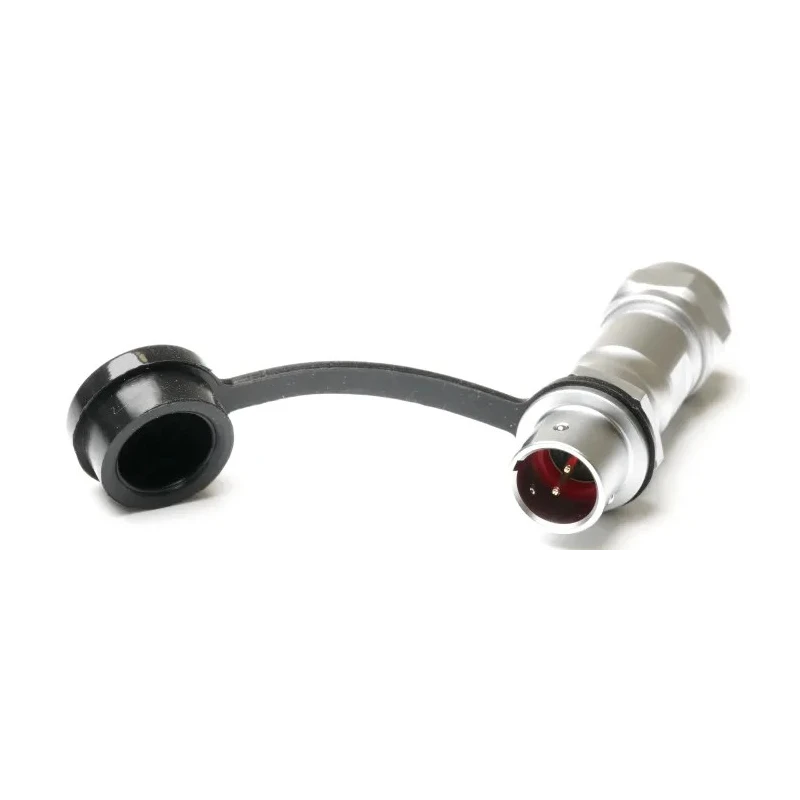

RS PRO SF10 Circular Connector 2 Contacts Cable Socket Male IP67 Chrome Plated Brass 5A 180V 206-5011

The RS PRO SF10 Series circular connector, model 206-5011, is a premium-quality cable-mount, male socket designed for use in electronics, measurement, communications, and industrial equipment connections. With two contacts and a robust chrome plated brass body, this connector is engineered for challenging environments where water and dust ingress protection, mechanical reliability, and long-term performance are required.

The SF10 206-5011 features superior gold-plated brass contacts that support a current rating of up to 5A and a maximum voltage of 180V, making it suitable for both signal and low-power applications. The solder termination ensures secure connections, while the straight cable entry design allows for efficient cable management and stress relief during or after installation.

The push-pull locking mechanism of this RS PRO connector provides a simple and effective way to connect and disconnect cables without risk of accidental disengagement, which is crucial during panel assembly and regular servicing. The high ingress protection rating of IP67 ensures that the socket is dust-tight and waterproof, ideal for industrial automation, medical equipment, test and measurement devices, and field-deployed communication equipment exposed to moisture, dust, or temporary immersion.

Supporting a cable diameter range of 4 mm to 6.5 mm and a 10 mm panel cut-out, the connector offers versatility across various wiring scenarios. Its -40°C to +85°C operating temperature range covers most industrial and outdoor system requirements. The durable housing, gold-plated contacts, and precisely engineered insulation collectively provide high insulation resistance of 2000 MΩ, long operational life (rated at up to 500 mating cycles), and low contact resistance, ensuring reliable performance even after repeated use.

Applications include providing IP67-rated connections in automation control boxes, instrumentation, lab apparatus, outdoor communications hardware, transport monitoring devices, and custom cable harnesses for demanding technical environments. The connector is compatible with other RS PRO SF10 series in-line and panel-mount products, supporting modular interconnect system designs.

Benefit from RS PRO’s rigorous standards for quality and performance with this SF10 Series Industrial Circular Connector, engineered for secure, long-lasting performance and system compatibility across industrial segments.
