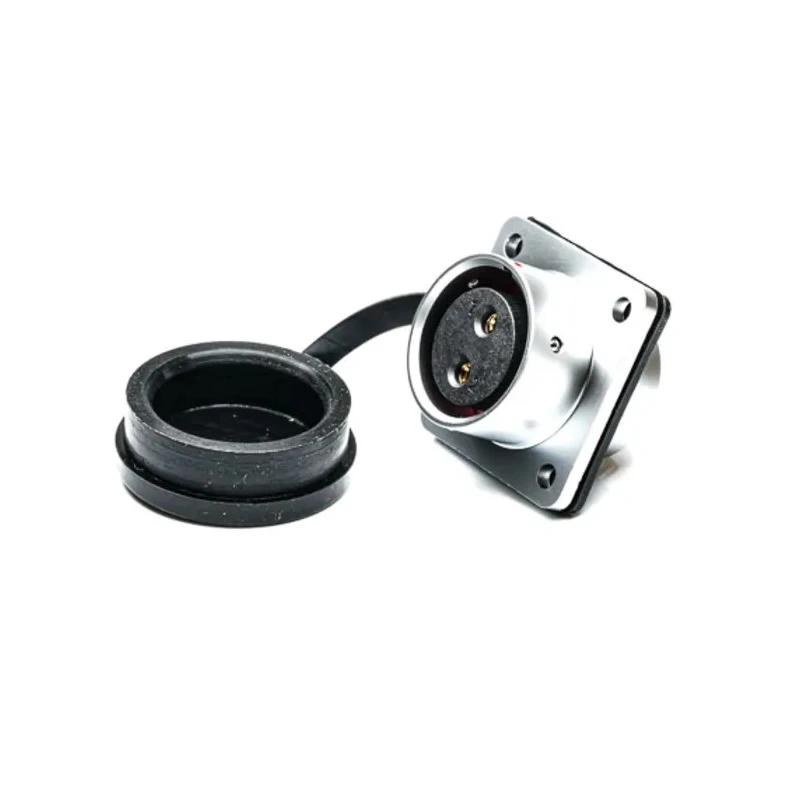

RS PRO Circular Connector 2 Contacts Flange M20 Socket Female IP67 SF20 Series 25A 500V Chrome Plated Brass 206-5195
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 25A |
| Model | 206-5195 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | SF20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Insulation resistance | 2000 MΩ |
| Minimum Operating Temperature | -40°C |
| Pole Format | 2 |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Shell Size | 22 mm |
| Mating Type | Push Pull |
| Connector Size | M20 |
| Plug/Socket | Socket |
| Cable Outer Diameter | 8-12 mm |
| Dust Cap | Included |
Key Features
- Square flange panel mount connector for professional and industrial applications.
- Features two contacts rated for 25A and 500V, suitable for both data and power circuits.
- High-quality chrome plated brass housing offers durability and corrosion resistance.
- IP67 rating ensures excellent protection against dust and water ingress.
- Push-pull coupling system for secure and easy cable connection.
- Solder termination for reliable electrical connectivity.
- Operating temperature range from -40°C to 85°C for versatile environments.
- Female socket design with gold plated brass contacts for improved conductivity.
Product Description
The RS PRO 206-5195 Circular Connector is a robust, industrial-grade solution for panel mounting, featuring a square flange and M20 size for secure installation in electronic and power systems. This female socket connector has two contacts and is rated for a high current of 25A and voltage up to 500V, making it ideal for demanding power and data transmission tasks in sectors such as medical equipment, communications, and test & measurement instrumentation.
The housing is manufactured from chrome plated brass, providing both durability and strong resistance to corrosion. Its gold plated brass contacts ensure reliable electrical conductivity, while the solder termination makes wire connections straightforward and stable. Designed to maintain a watertight seal, the connector achieves IP67 protection against dust and water - making it suitable for indoor and outdoor industrial environments.
With a push-pull coupling system, installation is quick and secure without tools, and its straight orientation streamlines panel layouts. The SF20 series compatibility allows for interconnection with other cable or panel mount connectors, supporting both plug and socket variations. The compact shell size (22 mm) and M20 case enable precise panel integration, and the operating temperature range from -40°C to 85°C assures reliable performance across varied climates.
Frequently used in systems requiring robust electrical interfaces, the RS PRO Circular Connector is popular with engineers and technicians looking for high-performance solutions. Its waterproof design, flexible solder termination, and dust cap support practical use in laboratory, industrial, and commercial setups.
Applications include industrial automation, laboratory instrumentation, medical devices, communication equipment, and environments requiring a secure waterproof electrical connection.
Explore more RS PRO Industrial Circular Connectors on EnvMart for compatibility and additional configurations suitable for panel mount and cable wiring applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 25A and a voltage of 500V, making it suitable for power and data transmission applications.
It has an IP67 rating, ensuring excellent protection against dust and water ingress, suitable for both indoor and outdoor use.
The housing is made from chrome plated brass, while the contacts are gold plated brass, which enhances conductivity and corrosion resistance.
The operating temperature range is from -40°C to 85°C, allowing it to perform reliably in a variety of environments.
This circular connector features two contacts, designed for efficient electrical connectivity.
It uses solder termination, which provides reliable electrical connectivity and straightforward wire connections.
The shell size of this connector is 22 mm, which allows for precise integration into panel layouts.
The connector is compatible with cable outer diameters ranging from 8 mm to 12 mm.
It features a push-pull coupling system, allowing for secure and tool-free cable connections.
Yes, a dust cap is included, which helps protect the connector when not in use.
This connector is suitable for applications in industrial automation, laboratory instrumentation, medical devices, and communication equipment.
