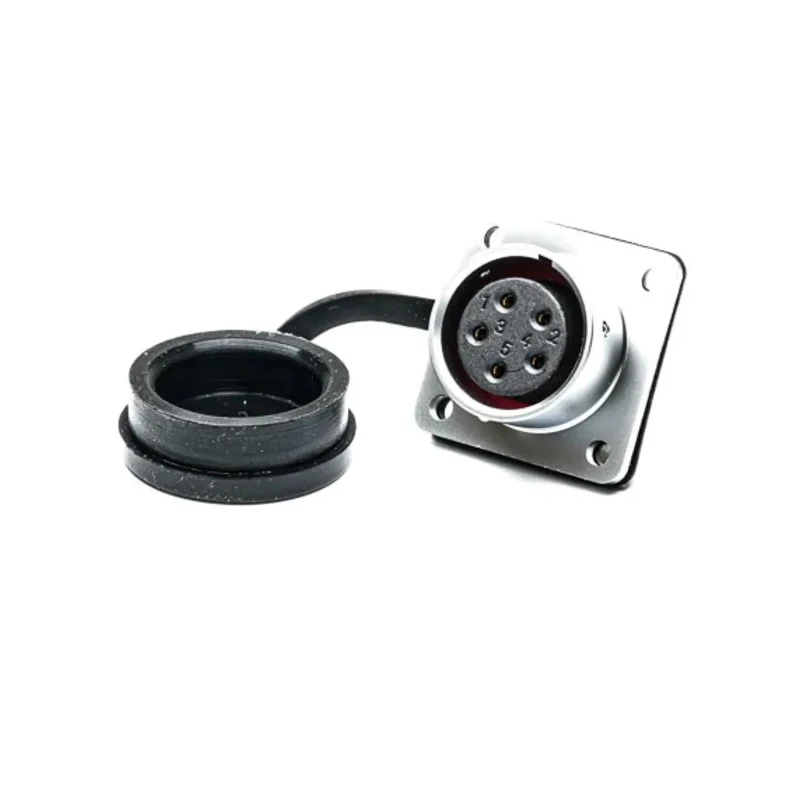

RS PRO Circular Connector 5 Contacts Flange M20 Socket Female IP67 SF20 Series 10A 500V Chrome Plated Brass 206-5202

The RS PRO 206-5202 circular connector is a high-quality panel mount socket designed for professional and industrial applications. Featuring a square flange and M20 connection size, this connector accommodates five gold-plated brass female contacts for reliable power or data transmission. It is engineered for robust performance, offering a rated current of 10A and voltage up to 500V, making it highly suitable for demanding electronic systems.

Constructed from chrome plated brass, the housing provides excellent durability and resistance against corrosion, ensuring long-term reliability even in harsh environments. With an IP67 rating, the connector is fully waterproof and dustproof, allowing its use in locations where environmental protection is essential. The solder termination configuration allows secure assembly and precise wiring for dependable connections.

The SF20 series utilizes a push-pull coupling system for fast and secure interfacing, meeting industrial standards for easy installation and maintenance. Operating across a wide temperature range from -40°C to +85°C, the 206-5202 model remains stable during extreme temperature fluctuations. Its insulation resistance exceeds 2000 MΩ, guaranteeing safe electrical isolation and supporting critical safety requirements.

With over 500 mating cycles, this connector is developed for high-frequency plug-in/out applications. Suitable for panel mounting due to its square flange design, it is widely implemented in medical devices, communications equipment, measurement instruments, and other high-value electronic systems where connector performance is vital.

The RS PRO SF20 series offers a choice of plug or socket types and various pole formats to meet customized needs. Its dust cap feature adds an extra level of protection when the connector is not in use. Cable diameter compatibility ranges from 8 to 12 mm, and the product is designed for quick installation by engineers and technical professionals.

The RS PRO 206-5202 circular connector is an integral component for industrial, laboratory, medical, and commercial electronic systems where robust connectivity and environmental resilience are required. Explore the RS PRO range in EnvMart's Industrial Circular Connectors category for compatible solutions and further modular options.
