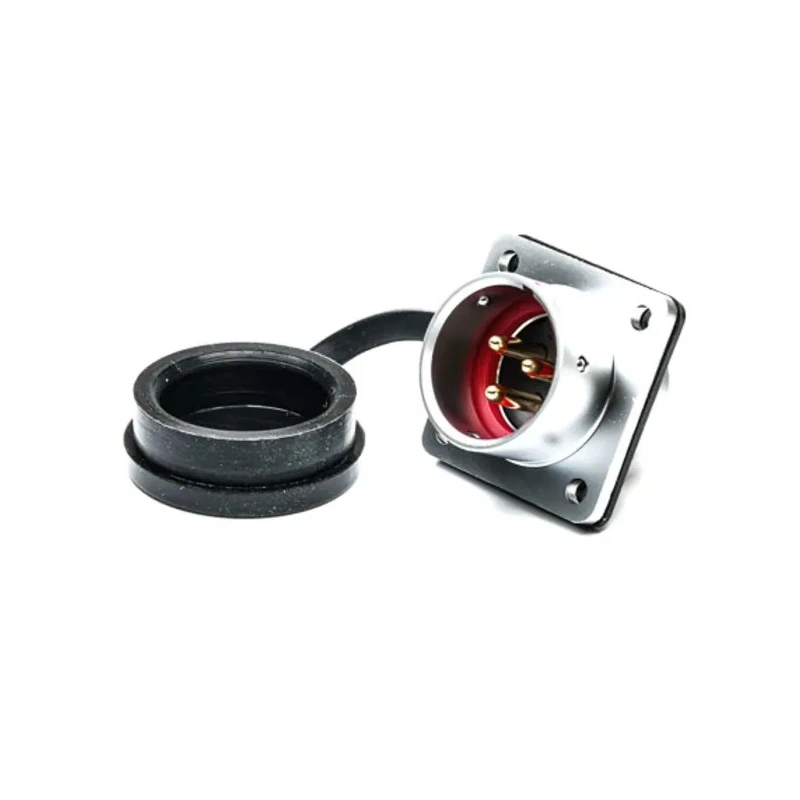

RS PRO Circular Connector Socket, 3 Contacts, Flange, M20, Male, IP67, SF20 Series 500V 10A Chrome-Plated Brass 206-5186
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | 206-5186 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | SF20 |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 22 mm |
| Mating Type | Push Pull |
| Connector Size | M20 |
| Plug/Socket | Socket |
Key Features
- Three-contact industrial circular connector socket for secure panel mounting.
- Flange mount design with M20 connector size for robust installation.
- Rated for 500V and 10A, suitable for power or signal transmission.
- Male contact configuration with IP67 ingress protection against dust and water.
- Housing made from chrome-plated brass with gold-plated brass contacts for durability and optimal conductivity.
- Push-pull mating mechanism and screw termination simplify installation and ensure reliable connectivity.
- Operating temperature range from -40°C to 85°C, supporting harsh environments.
- Suitable for use in medical, communications, and test & measurement equipment.
Product Description
The RS PRO 206-5186 industrial circular connector socket provides reliable panel-mount connectivity ideal for demanding applications. Designed to accommodate three contacts, this socket is engineered for robust performance in environments where secure and watertight connections are critical.
Featuring a flange mount design and M20 connector size, the SF20 Series connector provides stable and easy installation on equipment panels. Its male contact configuration and push-pull mating mechanism make it compatible with many panel and cable setups, while screw termination ensures solid wire retention. Rated at 500V and 10A, the connector serves both power and data transmission needs, suitable for deployment in medical, communications, and laboratory instruments.
The housing is constructed from chrome-plated brass, enhancing corrosion resistance and longevity. Gold-plated brass contacts deliver optimal electrical conductivity and minimize signal loss. With IP67 rating, the connector resists water and dust ingress, suitable for outdoor usage and industrial environments.
The SF20 Series connectors offer versatility, supporting a broad operating temperature range from -40°C to 85°C, making them ideal for high-end equipment requiring reliability and performance. Panel hole cut-out size is 20 mm, and the connector supports cable outer diameters between 8 - 12 mm and wire sizes suitable for solder or screw termination.
Features include square flange panel mounting, waterproof push-pull coupling system, and compatibility with various pole formats. The connector’s durable construction and ease-of-use make installation straightforward for both engineers and technicians, ensuring consistent performance over 500+ mating cycles.
Applications span medical devices, test and measurement equipment, communications hardware, and other advanced industrial settings where a secure, watertight connection is required.
Browse more RS PRO Industrial Circular Connectors on EnvMart for professional connectivity solutions in electronics and instrumentation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 500V and 10A, making it suitable for both power and signal transmission applications.
It has an IP67 ingress protection rating, which means it is resistant to dust and can withstand immersion in water, making it suitable for outdoor and industrial environments.
The housing is made from chrome-plated brass, while the contacts are made from brass with gold plating for optimal conductivity.
The operating temperature range is from -40°C to 85°C, allowing it to function in harsh environments.
This model features a flange mount design, which provides a secure installation on equipment panels.
This connector has three contacts, configured as male contacts.
The connector size is M20, and the panel hole cut-out size required for installation is 20 mm.
It utilizes screw termination, which ensures solid wire retention and reliable connectivity.
It is suitable for use in medical devices, communications hardware, and test and measurement equipment.
This model features a push-pull mating mechanism, which simplifies the connection process and ensures reliable connectivity.
The shell size of this connector is 22 mm, which is important for compatibility with various panel and cable setups.
