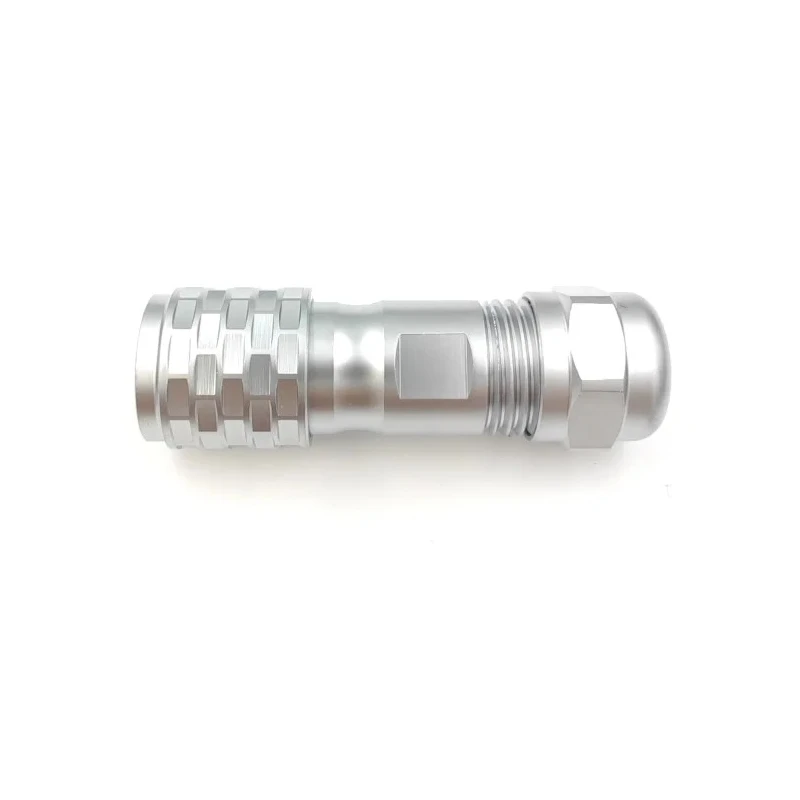

RS PRO Circular Connector 4 Contacts Cable Plug Male IP67 SF10 Series 125V 3A Chrome Plated Brass 206-5004
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 3A |
| Model | 206-5004 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | SF10 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Insulation resistance | 2000 MΩ |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Mating Type | Push Pull |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Mating Cycles | 500 |
Key Features
- Provides a reliable waterproof connection for industrial, medical, and laboratory equipment.
- Features 4 gold-plated brass contacts with a maximum current rating of 3A and voltage 125V.
- Housing made from durable chrome plated brass with straight cable mount orientation.
- Integrated IP67 rating ensures resistance to dust and water ingress during operation.
- Solder termination configuration simplifies installation and maintains secure connectivity.
- Push-pull mating system allows quick, secure interconnection with in-line and panel connectors.
- Operates across a wide temperature range from minus 40°C to plus 85°C.
- Suitable for data or power transfer in environments demanding high-performance connections.
Product Description
RS PRO 206-5004 is a precision-engineered circular connector designed for demanding industrial, medical, and laboratory applications. With 4 contacts housed in chrome plated brass and equipped with a plug-style male interface, this SF10 Series connector ensures both robust mechanical and electrical performance.
The connector offers a maximum current rating of 3A and operates at up to 125V, making it suitable for a wide range of equipment requiring reliable power or data transfer. Its straight cable mount orientation and solder termination type allow for simple and secure assembly, ensuring efficient setup for engineers and maintenance teams.
An IP67 ingress protection rating guarantees resistance to dust and water. This feature is crucial for environments where contamination or moisture could undermine connection integrity. The connector can reliably operate between minus 40°C and plus 85°C, supporting use in harsh climates and temperature extremes.
Gold-plated brass contacts deliver excellent corrosion resistance and conductivity, reinforcing signal integrity and prolonging connector life. A push-pull coupling mechanism enables rapid mating and un-mating, reducing installation time and supporting modular designs.
Applications for the RS PRO SF10 Series include industrial automation, medical instrumentation, telecommunications, and test & measurement equipment. The connector can handle both data and power transfer, making it a versatile choice for sectors requiring robust and flexible interconnect solutions.
Provides a reliable waterproof connection for industrial, medical, and laboratory equipment. Features 4 gold-plated brass contacts with a maximum current rating of 3A and voltage 125V. Housing made from durable chrome plated brass with straight cable mount orientation.
Integrated IP67 rating ensures resistance to dust and water ingress during operation. Solder termination configuration simplifies installation and maintains secure connectivity. Push-pull mating system allows quick, secure interconnection with in-line and panel connectors.
Operates across a wide temperature range from minus 40°C to plus 85°C. Suitable for data or power transfer in environments demanding high-performance connections. Explore the full RS PRO SF10 Series and discover more industrial connectors in EnvMart for advanced electrical and instrumentation projects.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a maximum current rating of 3A and operates at up to 125V.
It features an IP67 rating, ensuring resistance to dust and water ingress during operation.
The housing is made from chrome plated brass, and it features gold-plated brass contacts for improved conductivity and corrosion resistance.
It operates across a wide temperature range from minus 40°C to plus 85°C.
It utilizes a push-pull mating system that allows for quick and secure interconnection with in-line and panel connectors.
This model features a solder termination type, which simplifies installation and ensures secure connectivity.
The connector has 4 contacts.
The insulation resistance is rated at 2000 MΩ.
This model is classified as a standard connector size.
It is designed to withstand up to 500 mating cycles.
It is suitable for industrial automation, medical instrumentation, telecommunications, and test & measurement equipment.
The connector features a straight cable mount orientation.
