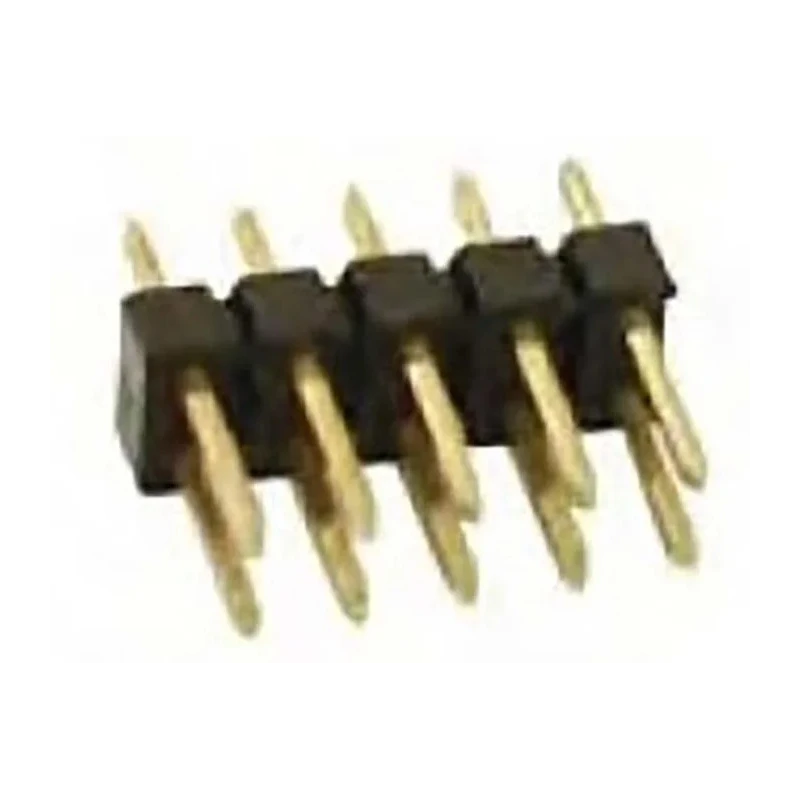

Amphenol Communications Solutions EconoStik Series Vertical Through Hole Pin Header 10 Contacts 2.54 mm 10129381-910004BLF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 3A |
| Model | 10129381-910004BLF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | EconoStik |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 8.08mm |
Key Features
- Dual row, vertical through hole pin header with 10 male contacts.
- Standard 2.54 mm pitch supports widespread PCB compatibility.
- Gold-plated brass contacts rated for 3 A and 1500 V for stable performance.
- Robust thermoplastic housing with temperature range from -55°C to +105°C.
- Solder termination and unshrouded design allow for flexible PCB layouts.
- 8.08 mm mating pin length accommodates direct board-to-board connections.
- Ideal for industrial control, test equipment, POS, and electronic systems.
Product Description
The Amphenol Communications Solutions 10129381-910004BLF is a premium EconoStik Series vertical through hole pin header, specifically designed for dependable signal and power connections in PCB assemblies. This connector combines high-quality gold-plated brass contacts with a rugged thermoplastic housing to ensure consistent performance in demanding applications.
Featuring a dual row unshrouded design with 10 male contacts, the header provides a 2.54 mm pitch for compatibility with industry-standard PCB layouts. Its through hole mounting method promotes strong mechanical retention, while the 8.08 mm mating pin length guarantees proper engagement in board-to-board configurations.
The gold-plated contacts support a current capacity of up to 3 amperes and a voltage rating of 1500 volts, making this header suitable for a variety of industrial, manufacturing, and instrumentation circuits. The thermoplastic housing offers high resistance to heat, supporting an impressive operating temperature range from -55°C to 105°C, which allows reliable operation even in challenging environments.
Solder termination ensures stable electrical connections, and its unshrouded arrangement allows flexible placement and easy inspection in compact designs. The 10129381-910004BLF pin header is ideal for use in industrial control modules, test equipment, metering circuits, point-of-sale machines, set-top boxes, surveillance devices, and vending machines where robust, repeatable connections are required.
As a board-to-board connector, it is engineered for high-density PCB interconnection applications, offering excellent mating durability and low contact resistance due to the gold plating. It supports customized mating and tail lengths as well as optional polarization for specialized requirements and is designed to be lead-free and RoHS compliant.
Explore more PCB Pin Headers and advanced interconnection solutions from Amphenol Communications Solutions to support your industrial, commercial, or electronic product designs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header has a voltage rating of 1500 volts, making it suitable for various applications requiring high voltage connections.
This model supports a current capacity of up to 3 amperes, ensuring stable performance in power connections.
The contacts have a standard pitch size of 2.54 mm, allowing compatibility with widespread PCB layouts.
It features gold-plated brass contacts and a thermoplastic housing, providing robust performance in demanding environments.
The pin header operates within a temperature range of -55°C to 105°C, suitable for various industrial applications.
This model has a total of 10 male contacts arranged in a dual row configuration.
The mating pin length is 8.08 mm, designed for direct board-to-board connections.
It utilizes solder termination, which ensures stable electrical connections during assembly.
This model features an unshrouded design, allowing for flexible PCB layouts and easy inspection.
The pin header employs a through hole mounting method, promoting strong mechanical retention on PCBs.
It is suitable for industrial control, test equipment, point-of-sale machines, and various electronic systems requiring reliable connections.
The country of origin for this pin header is India, indicating its manufacturing location.
