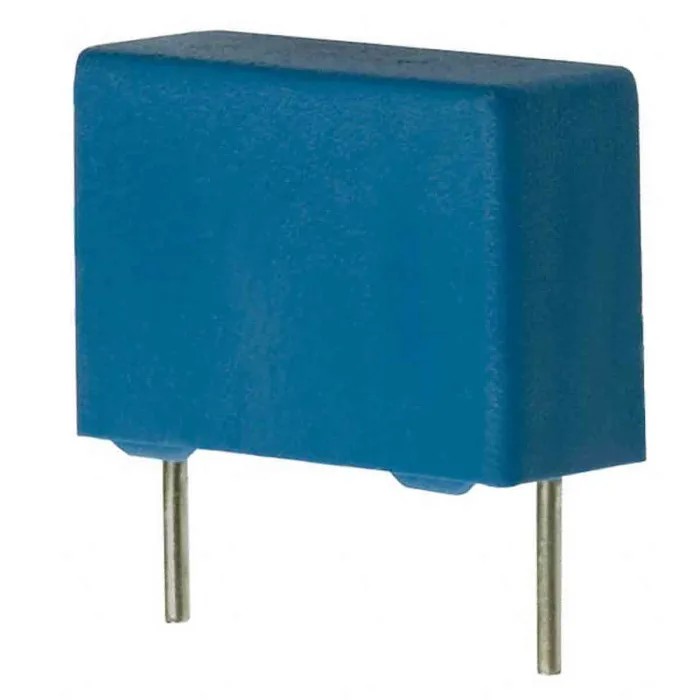

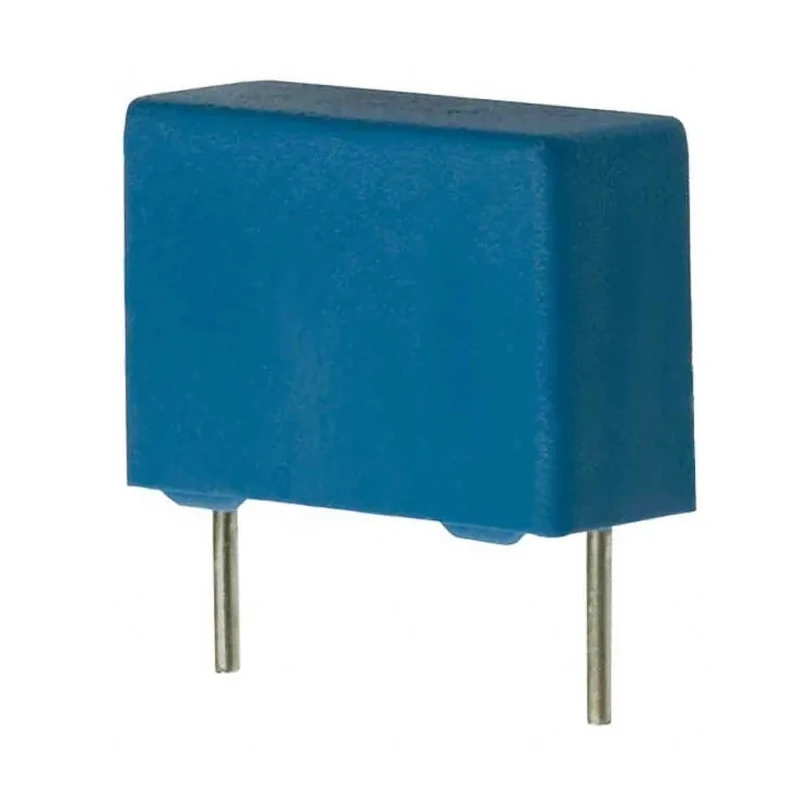

TDK B32651 Film Capacitor 2.2 nF, 1.25 kV AC/DC, Through Hole, 10 mm Lead Pitch B32651A7222K000

The TDK B32651A7222K000 is a high-quality film capacitor designed for high-voltage applications in electronic circuits. Featuring a polypropylene film dielectric, this capacitor offers reliable performance, stable capacitance, and very low inductance, making it ideal for use in demanding industrial and automotive environments.

With a rated operating voltage of 1.25 kV AC and 1.25 kV DC, the B32651A7222K000 is suitable for applications that require high voltage reliability, such as power supplies, electronic ballasts, and switch-mode power circuits. The device incorporates parallel wire leads with 0.6 mm diameter and a 10 mm lead pitch, allowing for straightforward through hole PCB mounting and secure electrical connections.

Its compact size - 13 mm in length, 9 mm in height, and 4 mm in width - enables integration into densely populated circuit boards, while maintaining robustness and electrical performance. The maximum operating temperature of 110°C provides excellent endurance in thermal-intensive applications. The capacitor complies with AEC-Q200D automotive standards, broadening its suitability for automotive electronics where reliability and compliance are mandatory.

Additional features include high pulse strength, RoHS and UL regulatory approvals, and optional halogen-free variants. The capacitor is specifically engineered for applications requiring high contact reliability, such as energy storage, filtering, and coupling/decoupling across a wide range of electronic equipment.

TDK B32651 film capacitors are widely used in industrial automation, power conversion, motor drives, inverters, lighting systems, and automotive electronics, thanks to their superior performance profile and robust construction. They are suitable for sectors such as manufacturing, power distribution, HVAC, and advanced electronics design, ensuring consistent and dependable operation under varied environmental conditions.
