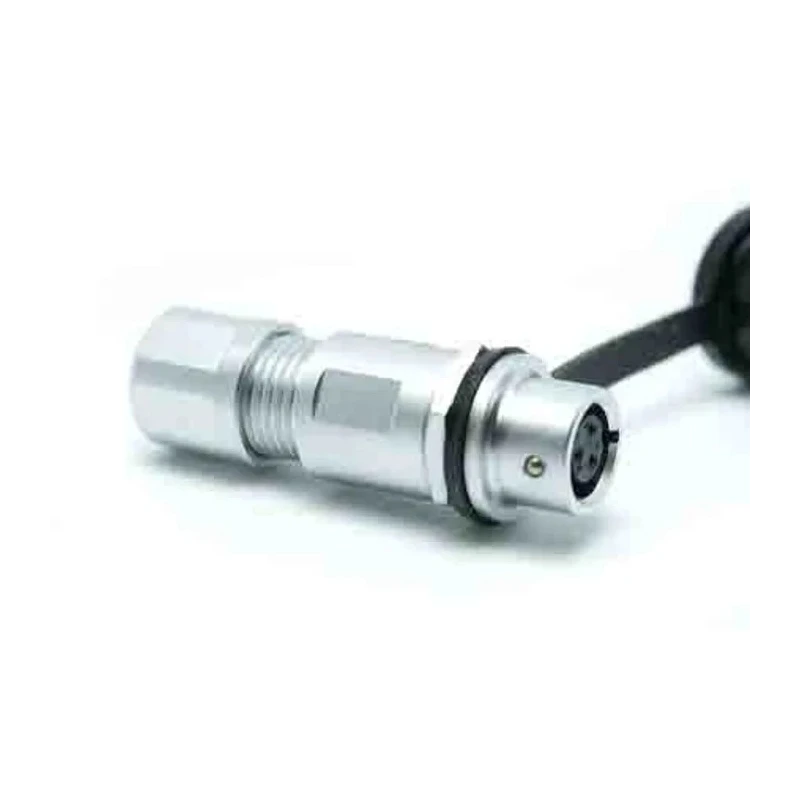

RS PRO Circular Connector, 3 Contacts, Cable Mount, 6 mm Size, Socket, Female, IP67, SF6B Series, 30V, 3A, Model 188-9477
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 3A |
| Model | 188-9477 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polyamide 66, Polycarbonate |
| Series | SF6B |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 7.8 mm |
| Mating Type | Push Pull |
| Connector Size | 6 mm |
| Plug/Socket | Socket |
Key Features
- Featuring a robust cable-mount design for reliable use in demanding environments.
- Provides three gold plated contacts, supporting 3A current at up to 30V.
- Socket configuration with female contacts and a push-pull mating mechanism ensures secure connectivity.
- IP67 protection rating for water and dust resistance, suitable for industrial and outdoor applications.
- Constructed from chrome-plated brass with polyamide 66 and polycarbonate housing for strength and durability.
- Solder termination type facilitates ease of assembly and wiring integration.
- Operating temperature range from -40°C to 85°C supports wide environmental tolerance.
- SF6B Series connector suitable for instrumentation, medical, test, and communication equipment.
Product Description
The RS PRO 188-9477 model is a high-performance circular connector designed for industrial and technical applications requiring secure, reliable signal transmission. As part of the SF6B Series, this connector offers key features such as three gold plated contacts rated for 3A at 30V, a cable-mount socket configuration, and robust female contact architecture. Its push-pull coupling mechanism allows for easy connection and disconnection while minimizing accidental unplugging.
With a compact connector size of 6 mm and a shell diameter of 7.8 mm, the RS PRO 188-9477 is ideal for space-constrained installations. The housing is engineered from chrome-plated brass, polyamide 66, and polycarbonate for superior strength, anti-corrosion, and longevity. The connector maintains operational integrity over a broad temperature range, from -40°C to 85°C, supporting harsh environmental conditions in both indoor and outdoor industrial settings.
The IP67 rating ensures high resistance to water and dust ingress, making this connector suitable for equipment requiring environmental protection, including laboratory instrumentation, medical devices, testing systems, and outdoor communications hardware. The female socket configuration is tailored for use in applications demanding stable and secure signal or power transmission.
Termination is via soldering, accommodating a 20 AWG wire size for straightforward assembly and dependable performance. The SF6B Series is recognized for its compatibility with demanding applications and adherence to quality standards including RoHS compliance.
The RS PRO 188-9477 connector excels in industrial, laboratory, and commercial environments where safety, reliability, and environmental protection are essential. Use cases include connecting instrumentation, sensors, medical diagnostic equipment, communication devices, and control systems.
Robust cable-mount design for secure installation. Three gold plated female contacts support stable 3A current at up to 30V. IP67 rated protection enables use in wet, dusty, or harsh environments. Chrome-plated brass and polyamide housing ensure durability and resistance to wear.
Wide operational temperature range suitable for extreme conditions. Solder termination simplifies custom wiring and system integration. Push-pull coupling enhances usability and equipment safety. Ideal for laboratory, testing, medical, communication, and industrial control equipment.
Browse and discover more RS PRO SF6B Series Industrial Circular Connectors and compatible accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current of 3A and a voltage of up to 30V.
It uses solder termination, which facilitates straightforward assembly and wiring integration.
The connector has an IP67 rating, providing high resistance to water and dust ingress.
The housing is constructed from polyamide 66 and polycarbonate, along with chrome-plated brass for added strength.
It operates effectively within a temperature range of -40°C to 85°C.
This model features three gold plated female contacts.
The connector has a size of 6 mm with a shell diameter of 7.8 mm.
It features a push-pull mating mechanism, allowing for easy connection and disconnection.
This connector is suitable for instrumentation, medical, test, and communication equipment.
The connector has a straight orientation.
Yes, it adheres to RoHS standards for environmental safety.
This model features a cable mount design for secure installation.
