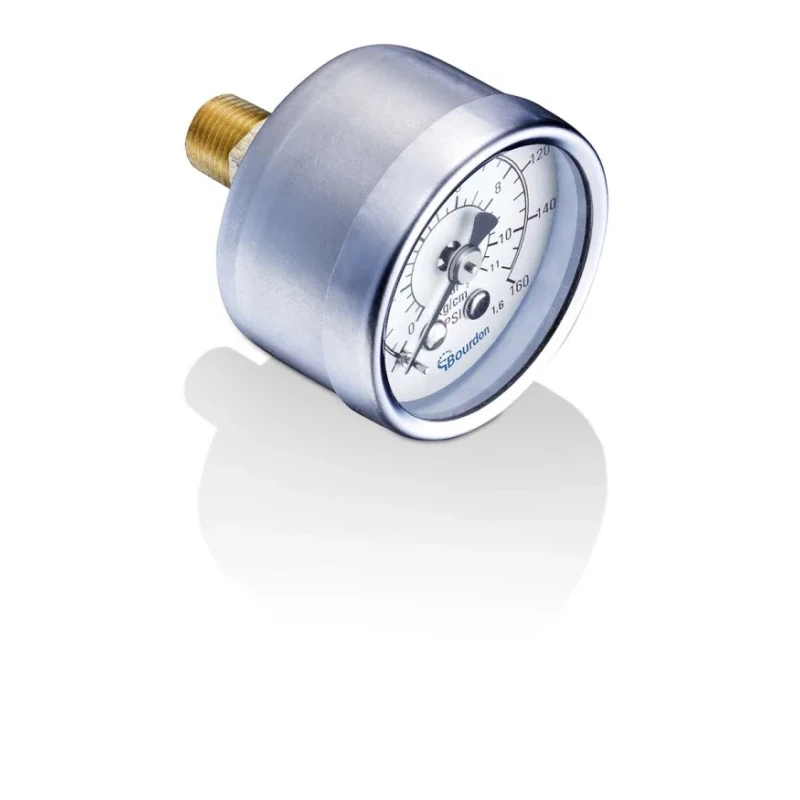

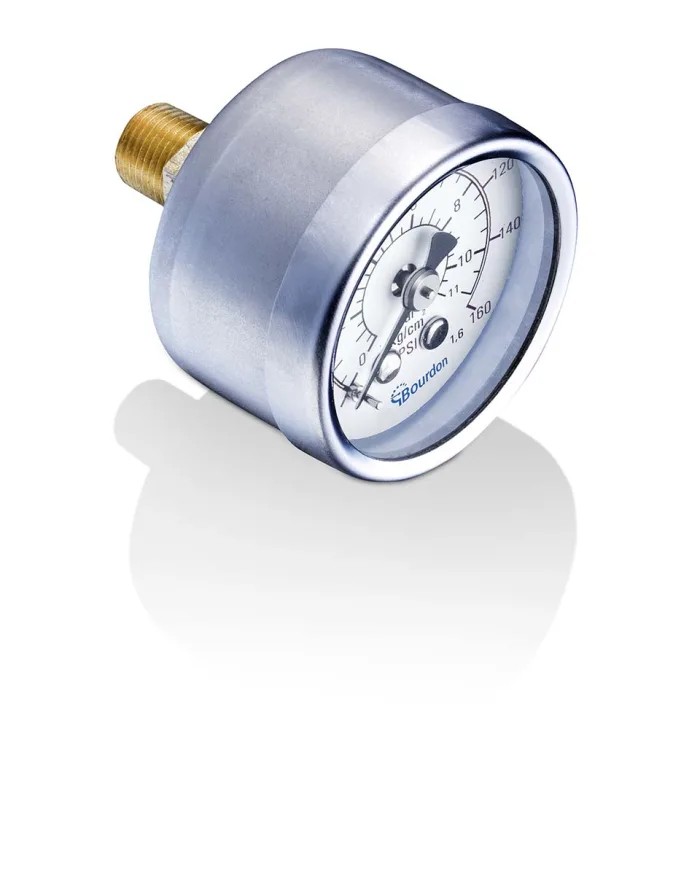

Bourdon Pressure Gauge 40 mm, 1/4 in NPT, 7 bar, Stainless Steel Case, Back Entry, Accuracy ±1.6% MTR1-F50.B21

Bourdon MTR1-F50.B21 Pressure Gauge is engineered for precise measurement and monitoring of pneumatic and hydraulic pressures in a range of industrial applications. Featuring a compact 40 mm dial and a robust stainless steel case, this instrument delivers reliable performance even in challenging conditions such as food processing, laboratory research, oil and gas, water treatment, energy, and machinery environments.

The gauge supports a maximum pressure rating of 7 bar, providing suitable capability for standard pneumatic and hydraulic systems. The back entry mounting and 1/4 inch NPT connection allow easy installation and compatibility with common system interfaces. Its brass pressure connection ensures a secure seal and long service life under continuous operation.

With an accuracy of ±1.6% full scale, users can expect consistent, dependable readings needed for critical process control. The white dial with triple graduation enhances readability and helps operators monitor changes efficiently. Stainless steel construction protects the mechanism against mechanical impacts and corrosion from harsh chemicals or humidity.

The instrument is designed for up to 60°C maximum operating temperature, making it adaptable to ambient and process temperature variations. Compliance with NF EN60529 standard further assures quality, safety, and regulatory adherence. Applications include pneumatic valves, level controllers, pressure transmitters, and pressure regulators in sectors such as food & beverage, laboratory & medical, oil & gas, water & wastewater, energy production, transportation, and logistics.

Industrial customers can benefit from the instrument's easy-to-integrate back-entry design, versatility, and robust construction. The Bourdon MTR1-F50.B21 is suitable for mounting directly onto panels, process equipment, control systems, or machinery where space is limited and durable, accurate pressure measurement is required.

40 mm dial size provides a compact footprint for small panels and equipment. Maximum pressure measurement up to 7 bar supports standard pneumatic and hydraulic operations. Brass connection and stainless steel case protect against corrosion and wear, ensuring longevity.

Accuracy rating of ±1.6% enables quality process monitoring and control. Back entry installation makes panel integration simple and secure. Clear white dial is easy to read for rapid visual checks in industrial environments.

Conforms to NF EN60529 for safety and performance consistency. Explore more Bourdon measurement instruments and EnvMart's Pressure Gauge category for additional selection and applications.
