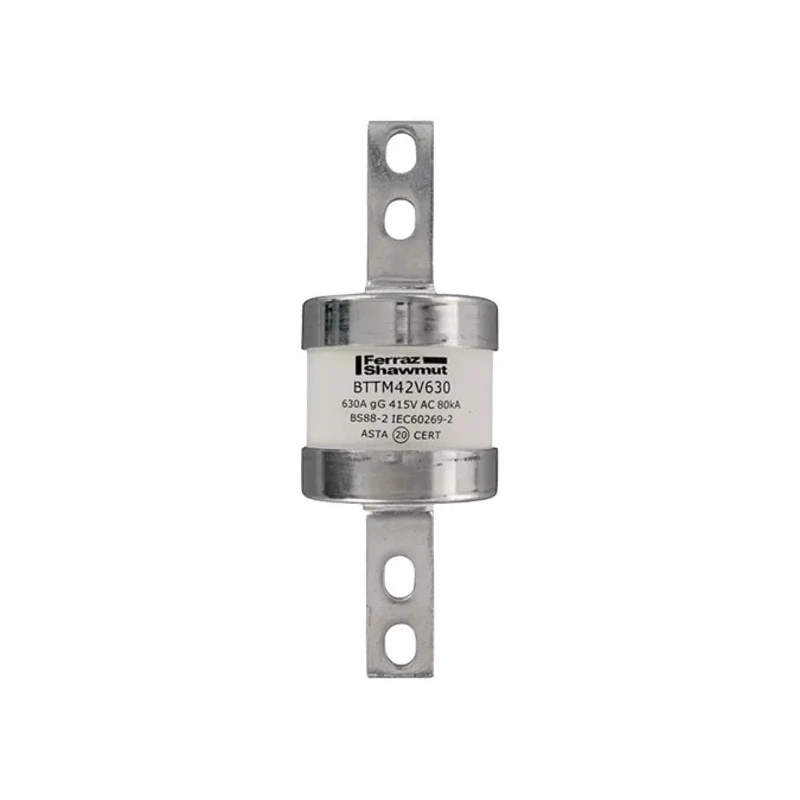

Mersen Bolted Tag Fuse 630A C2, 415V AC, Fixing Centres 133 mm, Tag Width 26 mm, Length 83 mm, Overall M226331 / BTTM42V630
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 415V ac |
| Diameter | 74.4mm |
| Brand | Mersen |
| Height | 83mm |
| Length | 83mm |
| Model | M226331 / BTTM42V630 |
| Width | 74.4mm |
| Overall Length | 212mm |
| Current Rating | 630A |
| Series | Central Bolted Tag Fuse-links gG 415VAC/240VDC |
| Standards/Approvals | CE, EN 60269-2, REACH, RoHS |
| Fuse Size | C2 |
| Fixing Centres | 133 mm |
| Tag Width | 26mm |
| Tag Orientation | Centred |
Key Features
- Bolted tag fuse, designed for general purpose and motor protection applications.
- Current rating of 630A assures excellent overload protection.
- C2 fuse size with 415V AC voltage rating for industrial electrical panels.
- Central tag with fixing centres of 133 mm ensures secure busbar mounting.
- Robust construction with tag width of 26 mm and overall length 212 mm.
- Complies with CE, EN 60269-2, REACH, and RoHS standards for safety and environmental compliance.
- F type fuse speed for effective short circuit current limitation.
- High durability, not interchangeable with higher rating fuses in same range.
Product Description
The Mersen M226331 / BTTM42V630 Bolted Tag Fuse is a specialized fuse component engineered for reliable circuit protection in industrial and commercial environments. Designed with a 630A current rating and C2 fuse size, this model provides robust performance for high current applications, particularly in switchgear, distribution boards, and motor protection.
This fuse is tailored to both general purpose (gG type) and motor protection (gM type) scenarios, limiting overload currents while preventing damage to connected equipment. The bolted central tag configuration with 133 mm fixing centres allows for secure installation directly onto busbars or within fuseholders and interruptor disconnectors.
With a voltage rating of 415V AC, it meets requirements for typical industrial power systems. The tag width of 26 mm and overall length of 212 mm provide compatibility with a broad range of panel layouts. Its F speed rating offers effective short circuit limitation, while the Central Bolted Tag Fuse-links gG 415VAC/240VDC series ensures uniformity and quality in performance.
The construction features a diameter and width of 74.4 mm and a height of 83 mm, supporting a durable and compact footprint. Standard compliance to CE, EN 60269-2, REACH, and RoHS underscores its suitability for demanding environments and regulatory requirements.
This fuse is ideally suited for manufacturing, electrical distribution, construction, HVAC, and other sectors requiring dependable protection from electrical faults. Its design prevents substitution with higher rated fuses within the same physical format, maintaining safety integrity across installations.
Country of origin: India. Explore additional industrial circuit protection solutions in the Electrical Fuse category and the Mersen brand at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this bolted tag fuse is 630A, providing excellent overload protection for high current applications.
It operates at a voltage rating of 415V AC, making it suitable for typical industrial power systems.
The overall length of the fuse is 212 mm, with a tag width of 26 mm, a height of 83 mm, and a diameter of 74.4 mm.
This model is classified as a C2 fuse size, which is designed for specific mounting and compatibility requirements.
It complies with CE, EN 60269-2, REACH, and RoHS standards, ensuring safety and environmental compliance.
It is designed for general purpose and motor protection applications, particularly in switchgear and distribution boards.
The tag orientation is centered, which aids in proper alignment during installation.
No, this fuse is not interchangeable with higher rating fuses in the same range, maintaining safety integrity across installations.
It has an F type speed rating, which is effective for short circuit current limitation.
The country of origin for this bolted tag fuse is India.
The overall construction height of this fuse is 83 mm, which contributes to its compact footprint.
