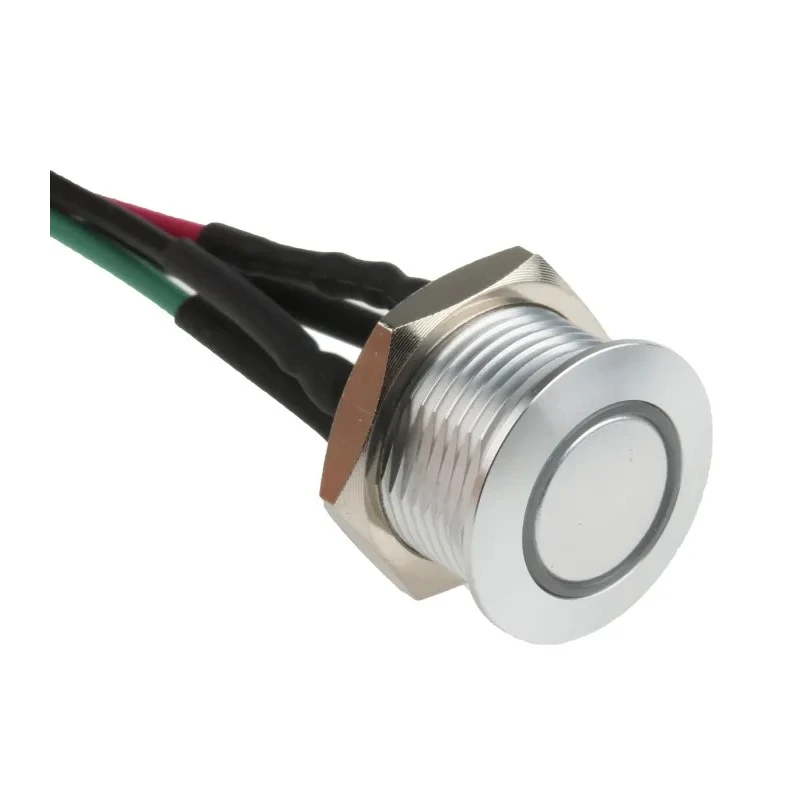

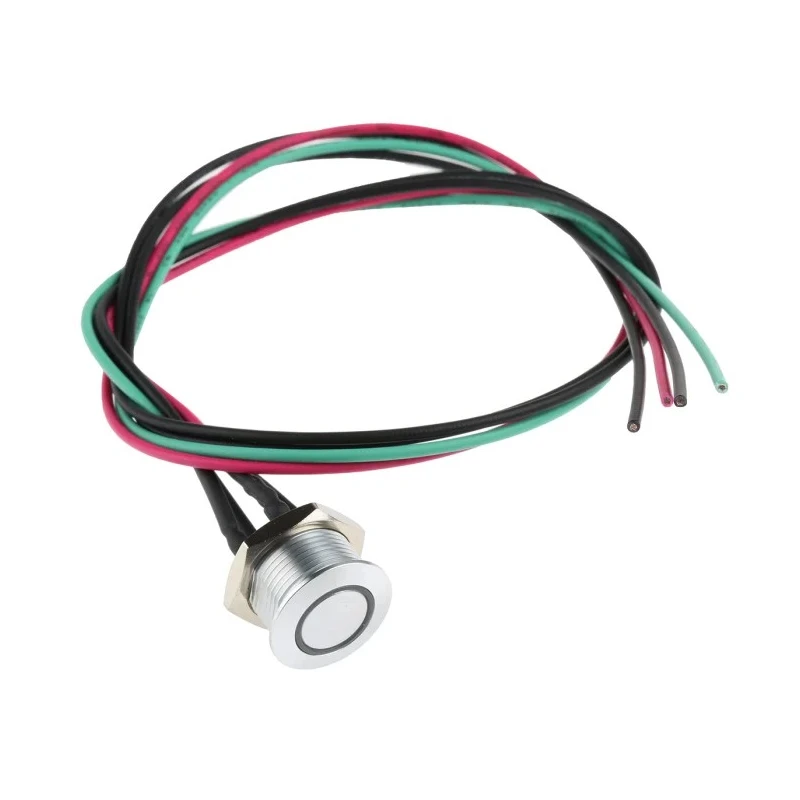

RS PRO Illuminated Push Button Switch MPB16, Momentary, Panel Mount, SPST, Blue LED, IP67, 36V DC

Name: RS PRO Illuminated Push Button Switch MPB16, Momentary, Panel Mount, SPST, Blue LED, IP67, 36V DC
Brand: RS PRO
SKU: 81636
Price: 2048.81 INR
Availability: InStock



Category Push Button Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	MPB16
IP Rating	IP67
Mount Type	Panel
Series	MPB16
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Panel Cutout Size	16 mm
Terminal type	Wire
Standards/Approvals	RS
LED Colour	Blue
Switch Operation	Momentary
Contact DC Voltage	36V dc
Actuator Style	Round
Switch Contact Current	2A

Key Features

Momentary push button operation for quick activation and control.
16 mm panel cutout size suitable for standard industrial installations.
SPST contact configuration for simple switching tasks.
Blue LED illumination enhances visibility and user indication.
IP67 rated for dust and water resistance in harsh environments.
36 V DC operation with a 2A contact current capacity.

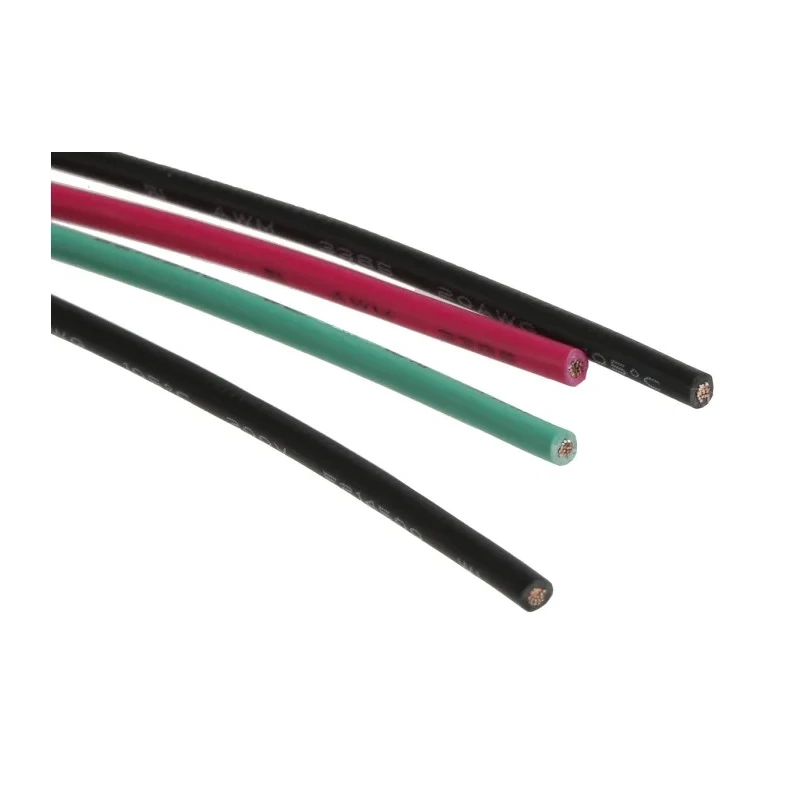

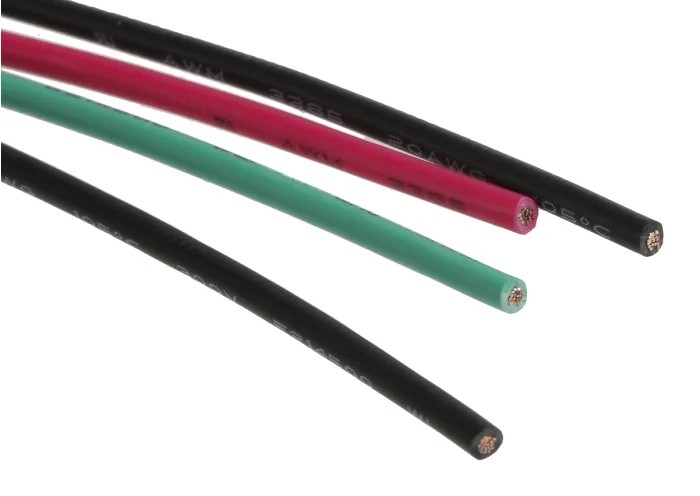

Wire terminal type for quick and reliable electrical connection.
Robust anti-vandal metal construction with round actuator for durability.

Product Description

The RS PRO MPB16 Series Illuminated Push Button Switch is a robust momentary switch designed for panel mounting in demanding industrial environments. This front-panel device features a 16 mm cutout size, ensuring compatibility with standard panel apertures and easy retrofitting in electrical control panels.

With SPST (Single Pole Single Throw) contact configuration, the switch provides straightforward circuit control, making it ideal for simple on/off or signal applications. The blue LED illumination delivers clear visual feedback to operators, enhancing safety and operational clarity, especially in low-light and busy environments. Illumination also helps users confirm activation status at a glance.

Built for reliability, the MPB16 has an IP67 rating, making it resistant to dust and water ingress. This protection level is suited for industrial control instruments, outdoor installations, or public access equipment where durability and resistance to vandalism are critical. The switch supports 36 V DC operation and carries a contact rating of 2A, offering universal compatibility with control circuits, signaling systems, vehicle peripherals, energy storage equipment, and more.

The anti-vandal design includes a round actuator in metal, yielding high strength, lightweight structure, corrosion resistance, and effective heat dissipation. Wire terminals allow for quick, secure electrical connections. The actuation mode is momentary, ensuring the switch returns to its default state after activation and is suited for applications such as alarms, resets, access controls and more.

Operating temperature ranges from -20°C to 70°C, providing versatility for both indoor and outdoor projects. Typical applications include medical equipment, security monitoring installations, audio-visual controls, industrial automation, and commercial panels.

RS PRO's MPB16 Series is part of a broad offering for industrial, laboratory, security, and energy storage systems where reliability, clear indication, and weather resistance are essential. Engineers and installers can browse the full RS PRO line for matching panel-mount switches, indicators, and accessories at EnvMart.
