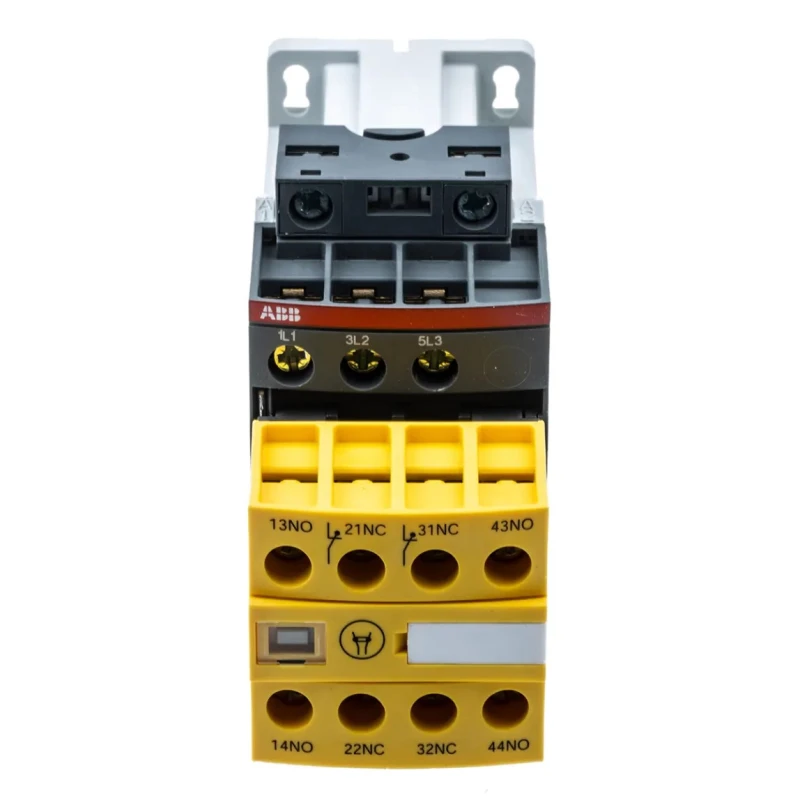

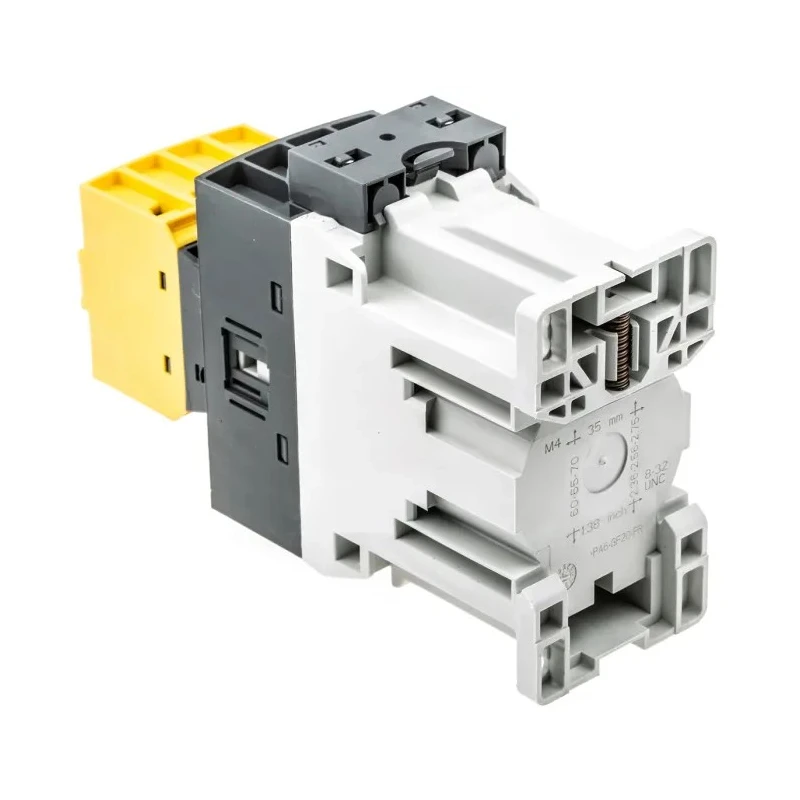

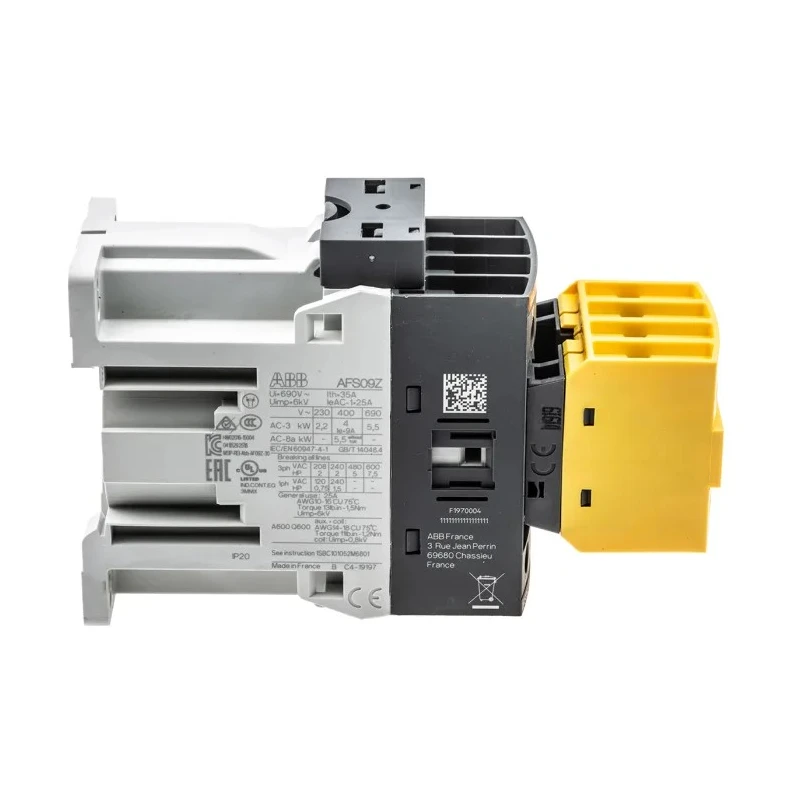

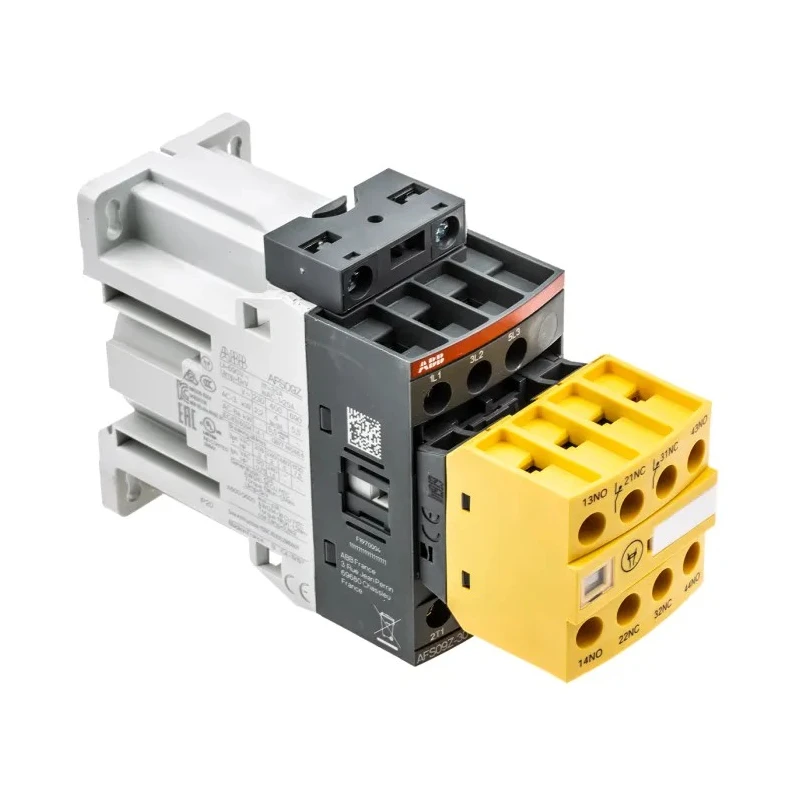

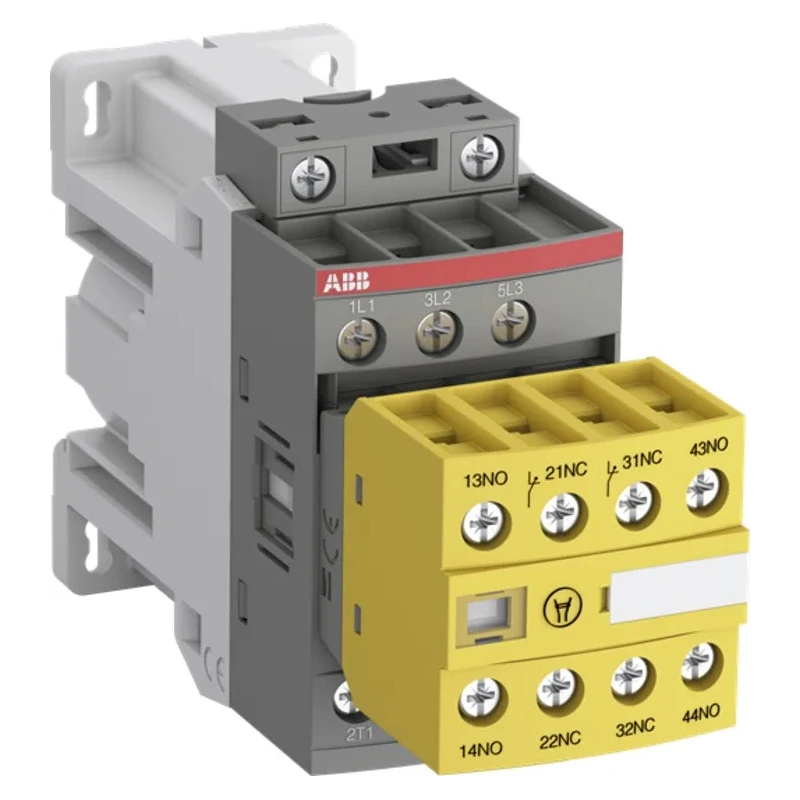

ABB Jokab AFS Contactor 1SBL136082R3022 AFS09Z-30-22-30, 24V DC Coil, 3-Pole, 25A, 9kW, DIN Rail
Specifications
| Country of Origin | France |
|---|---|
| Brand | ABB Jokab |
| Function | Motor Control |
| Length | 45mm |
| Model | 1SBL136082R3022 AFS09Z-30-22-30 |
| Depth | 80mm |
| Width | 111mm |
| Mount Type | DIN Rail |
| Series | AFS |
| Power Rating | 9kW |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CE, CSA, cUL, EAC, IEC, RoHS |
| Contact Voltage | 600V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3 |
| Impulse Withstand Voltage | 6kV |
Key Features
- Features a compact design with dimensions of 45 mm (L) x 80 mm (D) x 111 mm (W).
- Equipped with screw terminals, facilitating fast and secure installation.
- Supports mechanical switching frequency up to 3,600 cycles per hour for enhanced efficiency.
- Handles contact voltages up to 600V AC and impulse withstand voltage rating of 6kV.
- Operational between -40°C and +70°C, suitable for demanding environments.
- Provides a normal state configuration of 3 NO and auxiliary contacts (2 NO/2 NC).
- Mounts easily on DIN Rail and used for safety, heating, lighting, and machine control.
- Includes CE, CSA, cUL, EAC, IEC, RoHS approvals, with country of origin France.
Product Description
ABB Jokab 1SBL136082R3022 AFS09Z-30-22-30 is a robust AFS Series Contactor engineered for reliable performance in industrial and commercial automation. Its 3-pole configuration and 24V DC coil allow for efficient motor control and electrical circuit management, offering a high degree of operational safety and versatility.
This contactor is designed for installation on DIN rail, fitting into compact spaces with dimensions of 45 mm length, 80 mm depth, and 111 mm width. The device weighs 0.49 kg, making it easy to handle during setup. Equipped with screw terminals, it simplifies wiring and ensures a secure connection. The high impulse withstand voltage of 6kV provides protection against electrical surges, supporting peak operational pressures.
With a contact voltage rating of 600V AC and 25A current capacity, the contactor suits a wide range of motor and circuit safety applications. The normal state configuration is 3 NO, with four auxiliary contacts (2 NO/2 NC) available to extend control and signaling functionalities. Its mechanical switching frequency reaches up to 3,600 cycles per hour, enabling high-throughput workflow and responsive control in manufacturing and automation systems.
The ABB Jokab contactor is capable of stable operation from -40°C up to +70°C, making it well suited for harsh industrial environments or elevated altitudes up to 3 km. Its yellow housing improves device identification on industrial panels. Standards compliance includes CE, CSA, cUL, EAC, IEC, and RoHS, ensuring broad compatibility with global safety requirements.
Common use cases include machine safety, heating and lighting management, electrical circuit protection, and general industrial automation. This product's robust safety and operational features allow for integration in demanding settings where reliability and efficiency are paramount.
Explore more ABB Jokab AFS Series control products in the Power Contactors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a power rating of 9kW.
The contact voltage rating is 600V AC.
This model operates on a 24V DC coil voltage.
It has a current capacity of 25A.
The dimensions are 45 mm in length, 80 mm in depth, and 111 mm in width.
This contactor features a 3-pole configuration.
It supports a mechanical switching frequency of up to 3,600 cycles per hour.
It is equipped with screw terminals for secure installation.
It operates within a temperature range of -40°C to +70°C.
The contactor includes four auxiliary contacts configured as 2 NO and 2 NC.
It complies with CE, CSA, cUL, EAC, IEC, and RoHS standards.
The impulse withstand voltage rating is 6kV.
