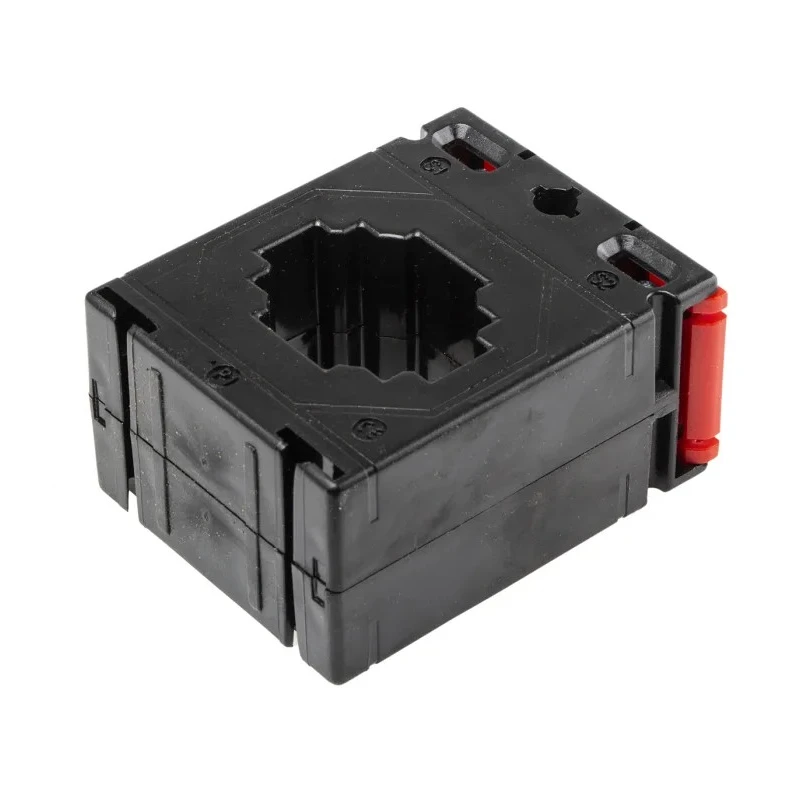

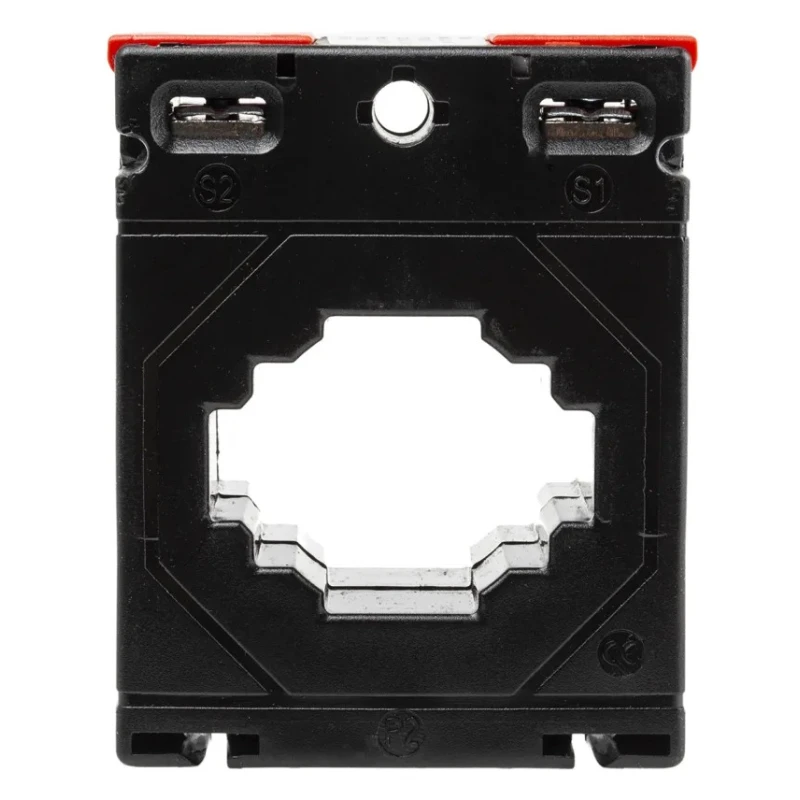

RS PRO Current Transformer 7500A Primary, 1A/5A Secondary, 40mm Bore, Square Polycarbonate Case, Model 171-8793
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Altitude | Up to 2000 m |
| Model | 171-8793 |
| Depth | 40mm |
| Width | 62mm |
| Mount Type | Cable, Wall, Busbar |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -5°C |
| Bore Diameter | 40mm |
| Secondary current | 1, 5A |
| Terminal type | Wire |
| Primary Current | 7500A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Siemens SENTRON Series Current Transformer 600 A 600 | 1Brand: Siemens |
| Siemens SENTRON Series Current Transformer 600 A 5 VABrand | Siemens |
Key Features
- Supports up to 7500A primary and selectable 1A or 5A secondary output.
- Features a 40mm bore diameter suitable for flexible cable, wall, or busbar mounting.
- Operates from -5°C to 55°C, appropriate for industrial and commercial environments.
- Complies with UL94V-0, IEC 61869-1, IEC 60044-1, IEC 61010-2 standards.
- Compact molded polycarbonate square case for rugged longevity.
- Offers over-current limiting factor up to FS15 and short-time thermal current up to 40kA.
- High electrical isolation of 0.72/3 kV or 0.72/4 kV enhances safety.
- Sealable wire terminal covers for secure meter installations.
Product Description
RS PRO 171-8793 Current Transformer is engineered for precision current measurement in electrical installations and process control systems. As a square, encapsulated molded-case CT constructed from polycarbonate, it meets strict industrial standards and is well-suited for extensive application areas including metering, monitoring, and protection.
With a primary current rating of up to 7500A and selectable secondary output of either 1A or 5A, this transformer provides versatile compatibility for power networks requiring accurate current conversion. The 40mm bore diameter enables installation across a variety of mounting options: wall, cable, or busbar. Sealable terminal covers ensure installation integrity and tamper resistance for metering applications.
The unit withstands challenging environments with an operating temperature range from -5°C to 55°C, and offers safe, reliable performance up to altitudes of 2000 meters and ambient humidity up to 95% (non-condensing). Storage temperature is supported from -25°C to +70°C for operational flexibility.
Conformance to UL94V-0, IEC 61869-1, IEC 60044-1, and IEC 61010-2 standards guarantees safety, reliability, and performance for industrial users. Over-current limiting factors (FS5/FS10/FS15) and rated short-time thermal current (up to 40kA for 1 second) provide protection against short circuits and system faults. Isolation levels of 0.72/3 kV or 0.72/4 kV support high-voltage installations. The compact depth of 40mm and width of 62mm allow easy installation in switchgear panels, distribution boards, and process equipment.
The RS PRO 171-8793 is ideal for use in electrical distribution, power quality monitoring, process control, industrial automation, manufacturing plants, and commercial installations where accurate current measurement and isolation are essential.
Supports primary current up to 7500A and choice of 1A or 5A secondary output. Designed with robust molded polycarbonate, square case for durability. 40mm bore diameter and mounting versatility (cable, wall, busbar). Meets key international safety and performance standards.
Sealable terminal covers allow secure and compliant installation. Suitable for harsh environments and wide temperature/humidity profiles. Offers high isolation levels and short-time overload protection. Easy integration into industrial, commercial, and process systems.
Explore more RS PRO Current Transformers and industrial metering solutions in EnvMart’s electronics and transformers catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a primary current rating of up to 7500A.
The transformer offers selectable secondary current outputs of either 1A or 5A.
The bore diameter is 40mm, suitable for flexible cable, wall, or busbar mounting.
It operates within a temperature range of -5°C to 55°C.
The transformer has a depth of 40mm and a width of 62mm.
It supports mounting via cable, wall, or busbar.
It complies with UL94V-0, IEC 61869-1, IEC 60044-1, and IEC 61010-2 standards.
It has a rated short-time thermal current of up to 40kA for 1 second.
It can operate at altitudes of up to 2000 meters.
It uses wire terminal type for connections.
It can operate in ambient humidity levels up to 95% (non-condensing).
The minimum operating frequency is 50Hz.
