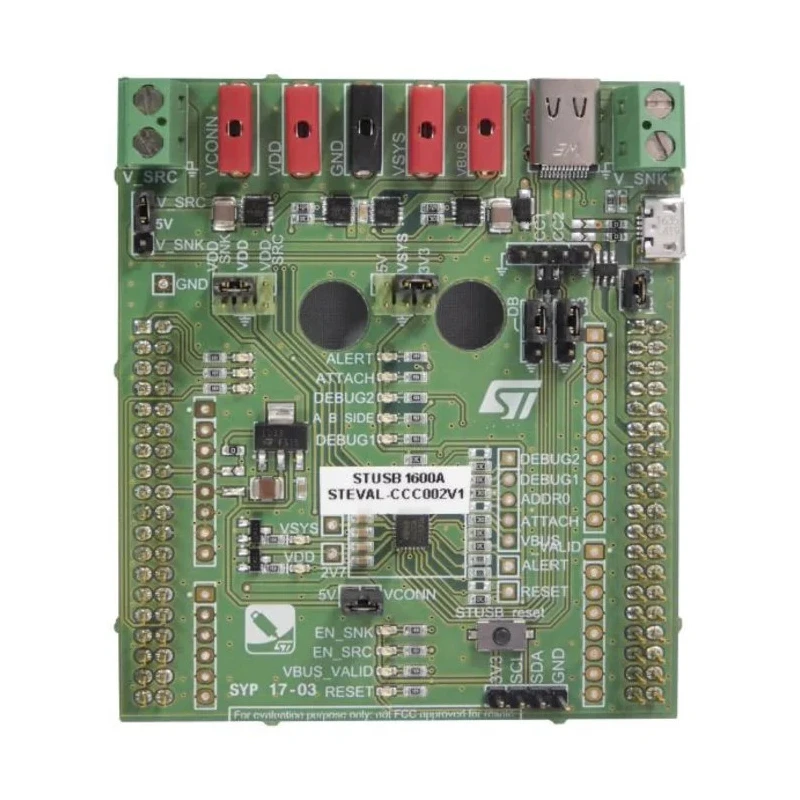

STMicroelectronics USB Type-C Controller Evaluation Board Kit, 5V, Dual Role, STEVAL-CCC002V1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-CCC002V1 |
| Interfaces | USB Type-C port (Source/Sink/Dual-role) |
| Interface Type | USB Type C |
| For Use With | STUSB1600A, Nucleo-F072RB |
| Standards/Approvals | USB Type-C standard rel. 1.2 + ECR |
| Kit Classification | Evaluation Kit |
| Featured Device | STEVAL-CCC002V1 |
| Kit Name | Controller Evaluation Board |
| VCONN Support | Programmable current limit up to 600 mA |
Key Features
- Supports 5 V USB Type-C port prototyping in source, sink, and dual roles.
- Compliant with USB Type-C standard revision 1.2 plus ECR for broad compatibility.
- Programmable VCONN current limit up to 600 mA for advanced applications.
- LED indicators provide real-time status of controller and port operation.
- Includes Dead Battery mode support for robust system design.
- Jumpers allow evaluation of various STUSB1600A power supply configurations.
- Compatible with Nucleo-F072RB board for configuration and debugging.
Product Description
The STMicroelectronics STEVAL-CCC002V1 USB Type-C Controller Evaluation Board Kit offers a comprehensive platform for engineers to develop, prototype, and evaluate a wide range of USB Type-C power delivery applications. Built around the STUSB1600A controller, this evaluation kit allows configuration as a source, sink, or dual power role, supporting full-featured 5 V USB Type-C ports suitable for modern communication systems, development boards, and rapid prototyping environments.
The board includes source and sink VBUS power paths, controlled automatically by the STUSB1600A according to the port power role selected and the device attached. Developers can easily experiment with different power supply scenarios for the STUSB1600A using onboard jumpers, making the kit highly adaptable to various industrial and engineering projects.
Key technical features include full USB Type-C standard revision 1.2 + ECR compliance, a robust VCONN channel supporting a programmable current limit up to 600 mA, and Dead Battery mode for system resilience. Direct integration with ST's Nucleo-F072RB board provides configuration and debug options, streamlining development workflows for both new designs and proof-of-concept projects.
Status LEDs are present for clear real-time indication of the STUSB1600A operation and connected USB Type-C port conditions. The inclusion of VBUS power switches and discharge path circuitry ensures the evaluation kit is suitable for technical verification and regulatory testing within development environments.
This versatile board targets applications across communication modules, power management systems, USB interface implementation, and prototype development for industrial, laboratory, and educational environments that require USB Type-C capabilities. The flexibility to configure roles and monitor power behaviors makes it ideal for integration into industrial testbeds, embedded solutions, or educational STEM labs.
Explore additional STMicroelectronics products and related USB Type-C development tools on EnvMart to support your next electronics design or system integration project.
Explore more products in our Communication & Wireless Development Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation kit is designed to support prototyping for USB Type-C power delivery applications, allowing configuration as a source, sink, or dual power role.
It complies with USB Type-C standard revision 1.2 plus ECR, ensuring broad compatibility with various devices.
The VCONN current limit is programmable up to 600 mA, which is suitable for advanced applications.
It is compatible with the STUSB1600A controller and the Nucleo-F072RB board for configuration and debugging purposes.
Dead Battery mode supports robust system design by allowing the device to operate even when the battery is depleted.
This kit targets applications across communication modules, power management systems, USB interface implementation, and prototype development for industrial and educational environments.
Specific dimensions and weight details are not provided in the product context.
It supports a USB Type-C port that can function in source, sink, or dual-role configurations.
The country of origin for this evaluation kit is India.
The kit is classified as an Evaluation Kit, specifically designed for controller evaluation.
