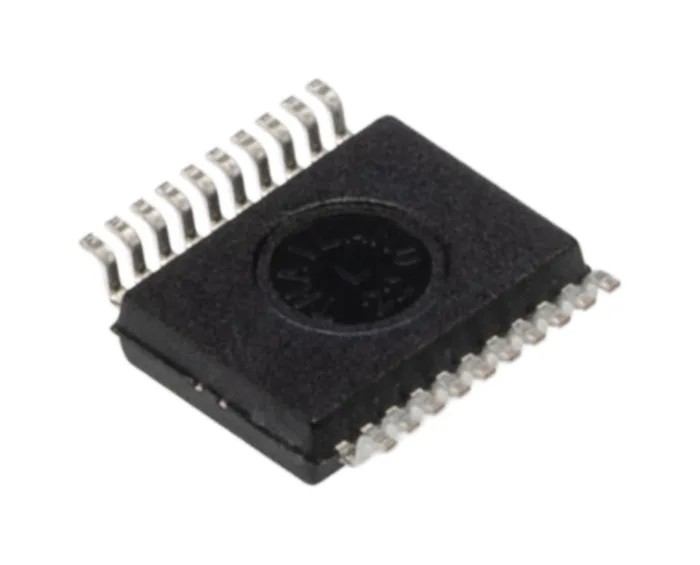

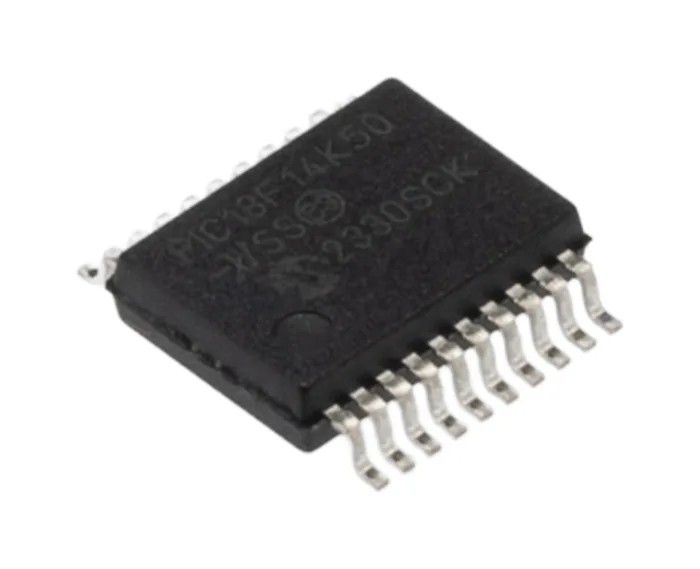

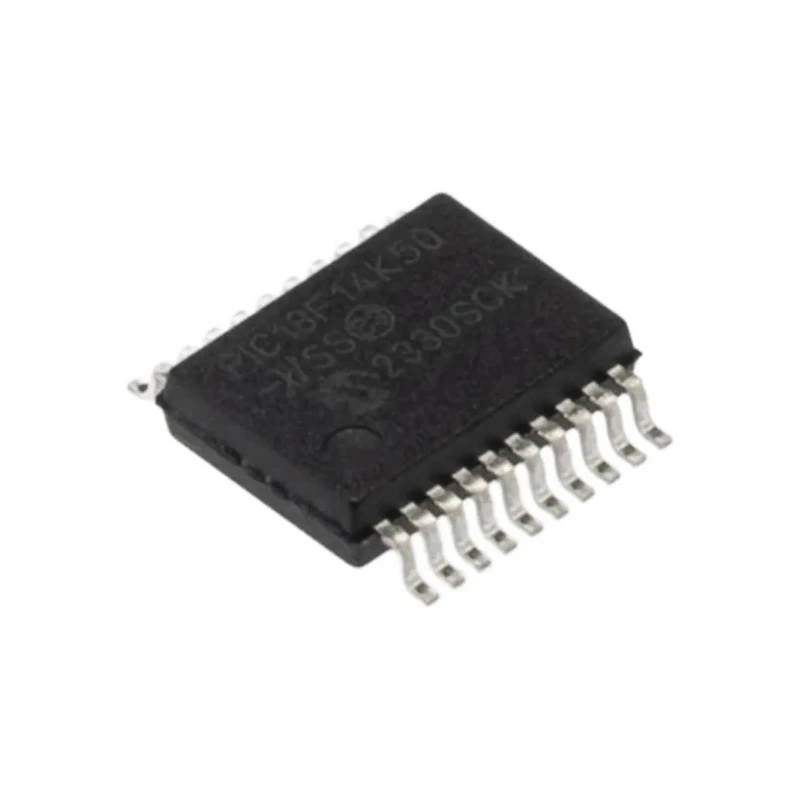

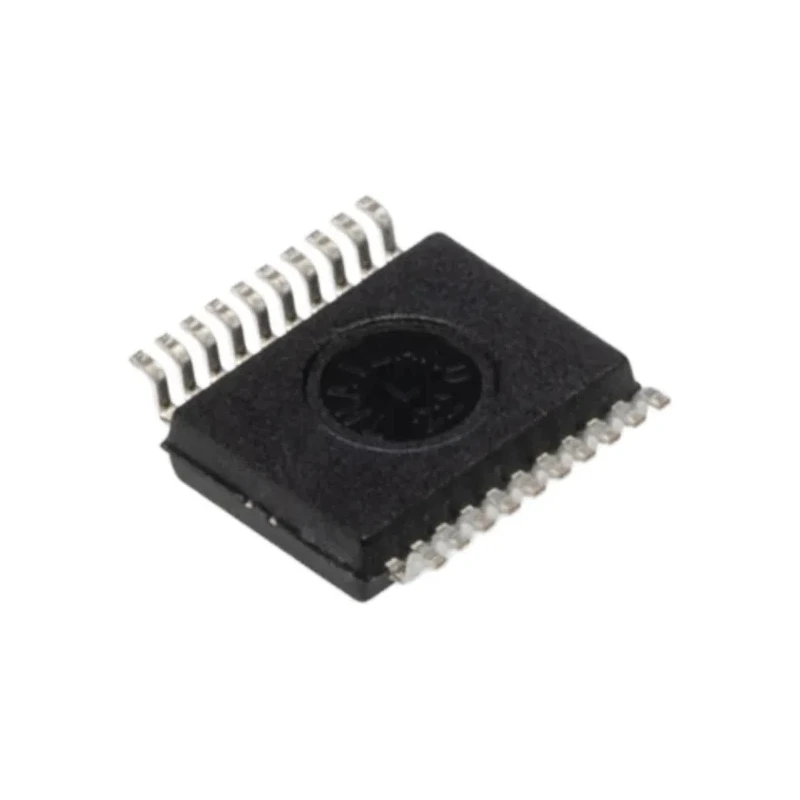

Microchip PIC18F14K50-I/SS 8-Bit PIC Microcontroller, 48 MHz, 16kB FLASH, 20-Pin SSOP, Model PIC18F14K50-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | PIC18F14K50-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC18F1XK50 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 768bit |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 48MHz |
| Number of Programmable I/Os | 15 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum clock frequency of 48 MHz for fast processing tasks.
- Offers 16 kB FLASH program memory and 768-bit RAM for versatile application support.
- SSOP package with 20 pins allows for reliable surface mounting and flexible integration into PCBs.
- Supports up to 15 programmable I/O pins for connecting a wide variety of peripherals and devices.
- Includes 11 ADC channels (10-bit), 2 analogue comparators, and 4 timers to enhance signal processing capabilities.
- Wide supply voltage range from 1.8 V to 5.5 V and low power consumption, suitable for embedded systems.
- RISC instruction set architecture improves efficiency and simplifies programming.
- Operates reliably across industrial temperature range from −40°C to +85°C.
Product Description
The Microchip PIC18F14K50-I/SS is a high-performance 8-bit PIC microcontroller designed for advanced embedded applications. With a maximum clock frequency of 48 MHz and RISC instruction set architecture, this microcontroller delivers swift computational performance and efficient command execution for industrial, commercial, and consumer electronics projects.
This controller features a FLASH program memory of 16 kB and RAM size of 768 bits, providing ample storage for complex firmware and rapid variable handling. The SSOP packaging ensures reliable surface mount integration onto modern PCB layouts. Its 20-pin configuration and up to 15 programmable I/O lines allow for versatile peripheral interfacing and adaptable system design.
The device supports robust signal processing capabilities thanks to its 11 ADC channels (each 10-bit resolution), 2 analogue comparators, and 4 built-in timers, making it suitable for real-time data acquisition, instrumentation, and control applications. The wide operating voltage range from 1.8 V to 5.5 V enables compatibility with low- and high-voltage systems, while the maximum power dissipation of 800 mW and industrial temperature range (−40°C to +85°C) ensure reliable operation under demanding conditions.
With a compact footprint (7.5 mm length, 5.6 mm width, and 1.85 mm height), the PIC18F14K50-I/SS is ideal for space-constrained electronic products, portable devices, industrial automation systems, instrumentation panels, and automotive interface modules where extended reliability and programmability are required.
Advanced RISC architecture streamlines code development and enhances system throughput, while the built-in FLASH program memory enables firmware upgrades and customization. The device also meets key industrial standards for microcontroller components and offers precise timing operations, digital conversion, and signal monitoring functionalities essential for embedded control engineering.
This microcontroller is suited for applications such as industrial process control, laboratory instrumentation, HVAC controllers, robotic automation, and commercial electronics demanding robust PIC performance and flexible connectivity. Explore more PIC Microcontrollers and embedded solutions within EnvMart's Microchip category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 48 MHz, enabling fast processing tasks.
It features a program memory size of 16 kB, allowing for complex firmware storage.
This microcontroller supports up to 15 programmable I/O pins for connecting various peripherals and devices.
It operates reliably across an industrial temperature range from -40°C to +85°C.
This model comes in a surface mount SSOP package with 20 pins, facilitating reliable integration into PCBs.
The RAM size is 768 bits, which aids in rapid variable handling for applications.
It includes 11 ADC channels, each with 10-bit resolution, enhancing its signal processing capabilities.
The microcontroller supports a wide supply voltage range from 1.8 V to 5.5 V, suitable for various systems.
It has a length of 7.5 mm, a width of 5.6 mm, and a height of 1.85 mm, making it compact for space-constrained applications.
This model features 4 built-in timers, which are essential for timing operations in various applications.
The maximum power dissipation for this microcontroller is 800 mW, suitable for low-power applications.
It utilizes a RISC instruction set architecture, which improves efficiency and simplifies programming.
