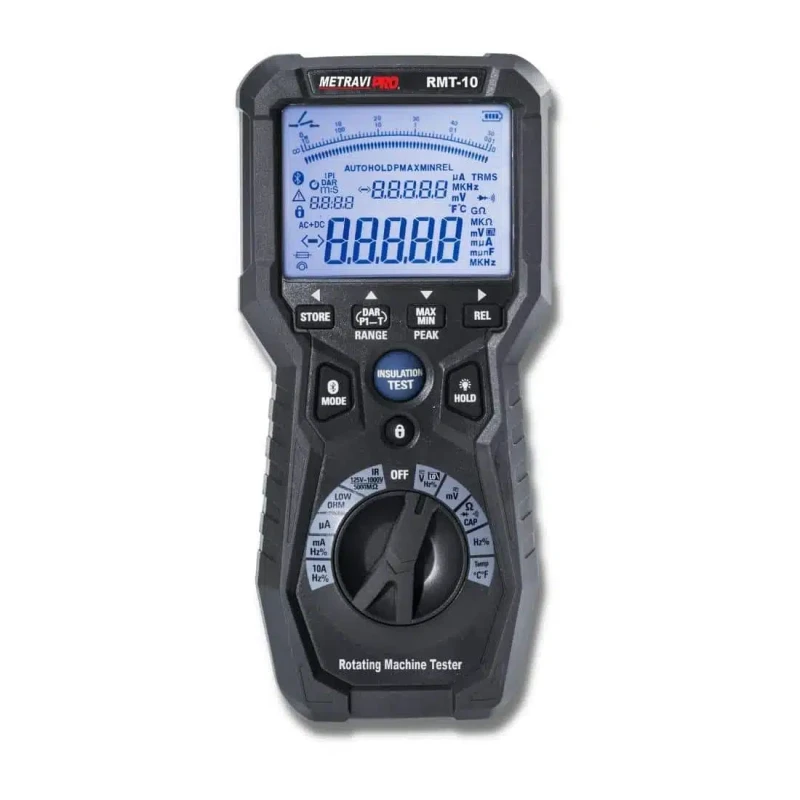

Metravi Rotating Machine Tester PRO RMT-10

Name: Metravi Rotating Machine Tester PRO RMT-10
Brand: Metravi
SKU: ADSJJ
Price: 397.42 USD
Availability: InStock



SKU ADSJJ Category Testing Instruments Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	Metravi PRO RMT-10 Rotating Machine Tester
Fuses	mA/µA ranges 0.5A/1000V ceramic fast blow A range 10A/1000V ceramic fast blow
Operating Humidity	Max 80% up to 87°F(31°C) decreasing linearly to 50% at 104°F(40°C)
Display	50000 counts backlit LCD with bar graph
Frequency range	40.00Hz~10kHz
Diode Test	Test current 0.9mA max open circuit voltage 2.8V DC typical
Brand	Metravi
Operating Temperature	41°F~104°F(5°C~40°C)
Storage Temperature	-4°F~140°F(-20°C~60°C)
Battery	6×AA NEDA15A IEC LR6
Model	PRO RMT-10
Temperature Sensor	Requires type K thermocouple
Enclosure	Double-moulded waterproof
Measurement Rate	3 times/second nominal
Auto Power Off	15min(approx) with disable feature
Input Impedance	Greater than 10MΩ VDC & Greater than 9MΩ VAC
Frequency Accuracy	±(0.5%reading)
Storage Humidity	Less than 80%
Polarity	Automatic(no indication for positive)-Minus(-) sign for negative
Crest factor	≤3 at full scale up to 500V decreasing linearly to ≤1.5 at 1000V
Shock Resistance	3.2ft(1m) drop tested
Overrange Indication	“OL” displayed
Operating Altitude	7000ft(2000m) max
AC Response	True RMS
Frequency Resolution	0.01Hz~0.001kHz
Peak	Captures peaksGreater than 1ms
Acv Bandwidth	50Hz~1000Hz

Key Features

Display 50,000 Counts backlit liquid crystal with bar graph
V DC or V AC 1000V DC/AC RMS
mA AC/DC 500mA 1000V fast acting fuse
A AC/DC 10A 1000V fast acting fuse (20A for 30 seconds max every 15 minutes)
Frequency
Resistance
Capacitance
Duty Cycle
Diode Test
Continuity
Temperature -50°C to 1200°C
PEAK: Captures peaks >1ms
Temperature Sensor requires type K thermocouple
Input Impedance >10MΩ VDC & >9MΩ VAC
AC Response True RMS
ACV Bandwidth 50Hz to 1000Hz
Polarisation Index
Di-Electric Absorption Ratio
MAX / MIN Hold
Peak Hold
Data Hold Data
Recording Feature for auto and manual records

Product Description

Metravi Rotating Machine Tester PRO RMT-10 is a highly advanced multifunction diagnostic instrument designed for comprehensive testing and maintenance of rotating electrical machines such as motors, generators, and industrial equipment. Equipped with a clear backlit LCD display, it ensures excellent visibility and ease of operation in various working conditions. This professional-grade tester supports precise measurement of AC/DC voltage, current, resistance, capacitance, and frequency, along with specialized features like Polarization Index (PI) and Dielectric Absorption Ratio (DAR) for insulation analysis. With a built-in K-type sensor, it also enables temperature measurement, making it suitable for diverse industrial applications. The device includes data recording, Bluetooth connectivity, and max/min analysis for efficient monitoring and reporting. Designed with high input impedance, overload protection, and reliable accuracy, it ensures safe and stable operation. Ideal for maintenance engineers, technicians, and service professionals, the Metravi RMT-10 delivers accurate diagnostics and enhances equipment reliability. Available on EnvMart, these Testing Instruments are designed for precise measurement and analysis across various applications. Metravi Testing Instruments offer accuracy, reliability, and durability, making them ideal for industrial, laboratory, and research environments.
