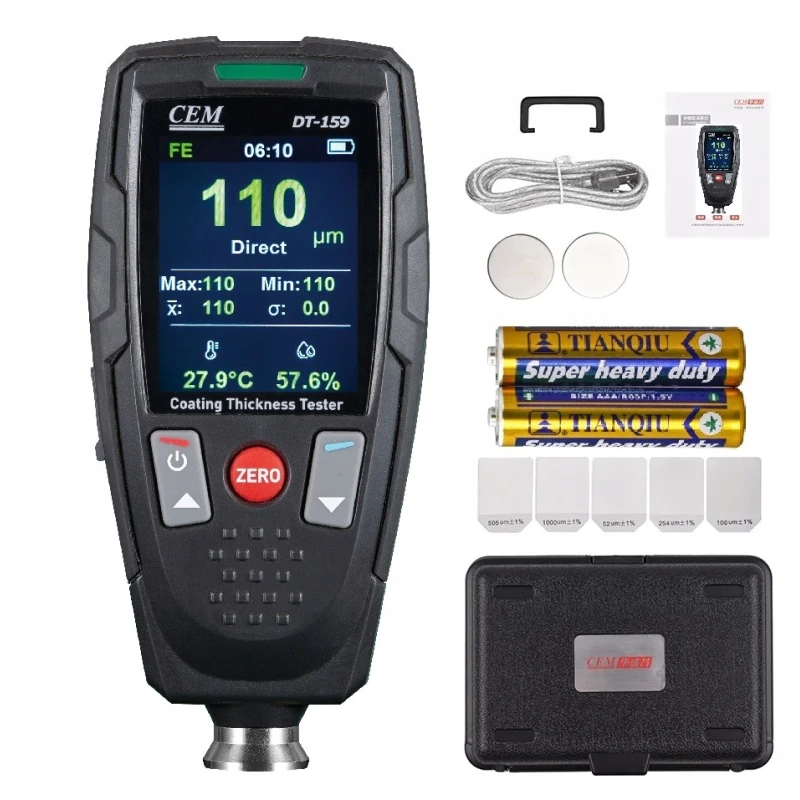

CEM Coating Thickness Gauge DT-159
Specifications
| Country of Origin | China |
|---|---|
| Package Contents | CEM DT-159 COATING THICKNESS GAUGE / 2X 1.5V AA Batteries / CD / Calibration Iron / Calibration Aluminum / Precision Standards / Gift box / Carrying Case / Instruction Manual |
| Brand | CEM |
| Dimensions | 120x60x40 mm |
| Working Temperature | 0°C~50°C (32°F~122°F) |
| Model | DT-159 |
| Weight | 120 g |
| Basic accuracy | ±1°C/±1.8°F/±3% |
| Working Relative Humidity | 0%~100% |
| Ferrous Working Principle | Magnetic Induction |
| Non-Ferrous Working Principle | Eddy Current Principle |
| Measuring Range (Ferrous/Non-Ferrous) | 0~2000µm |
| Minimum Curvature Radius (Ferrous) | 1.5mm |
| Minimum Curvature Radius (Non-Ferrous) | 0.1µm |
| Diameter of Minimum Area (Ferrous) | 7mm |
| Diameter of Minimum Area (Non-Ferrous) | 5mm |
| Basic Critical Thickness (Ferrous) | 0.5mm |
| Basic Critical Thickness (Non-Ferrous) | 0.3mm |
| Guaranteed Tolerance (Ferrous/Non-Ferrous) | (±2%+2)µm |
| Repeatability (Ferrous/Non-Ferrous) | (±1%+1)µm |
| Low Range Precision (Ferrous/Non-Ferrous) | 0.1µm |
Key Features
- Measured Coatings: Non-magnetic coatings (e.g. paint. zinc) on steel; Insulating coatings (e.g. paint) on non-ferrous metals.
- Non ferrous metals coating on insulating substrates.
- 2.4” TFT color LCD display
- Temperature and humidity Dew point Temperature measurement.
- Auto-rotation Screen: 0°, 90°, 180°, 270°
- Stability Test
- Continuous Test
- Set Auto power off time.
- SSPC mode
- Warning with beeper and backlight flash, 3-colour led indication.
- Menu Operation system
- Two working mode: DIRECT, GROUP and SSPC mode.
- Statistic Display: AVG, MAX, MIN, NO., S.DEV(Deviation)
- One point calibrating and SSPC MODE calibration
- Error indication
- USB interface
- Level of LCD Lighting adjustable
Product Description
CEM Coating Thickness Gauge DT-159 is an advanced digital instrument that accurately measures coating thickness across various substrates. It automatically identifies ferrous and non-ferrous materials, providing fast and consistent readings. Ideal for automotive, aerospace, and industrial quality control, it offers data storage and easy calibration. With a robust and ergonomic build, it ensures reliability and efficiency in paint inspection, metal coating assessment, and surface finishing applications.
Available on EnvMart, these Thickness Meter are engineered for accurate measurement of coating and material thickness. CEM Thickness Meter feature advanced sensors, digital displays, and durable construction, making them ideal for metal, paint, and industrial quality inspection applications.
