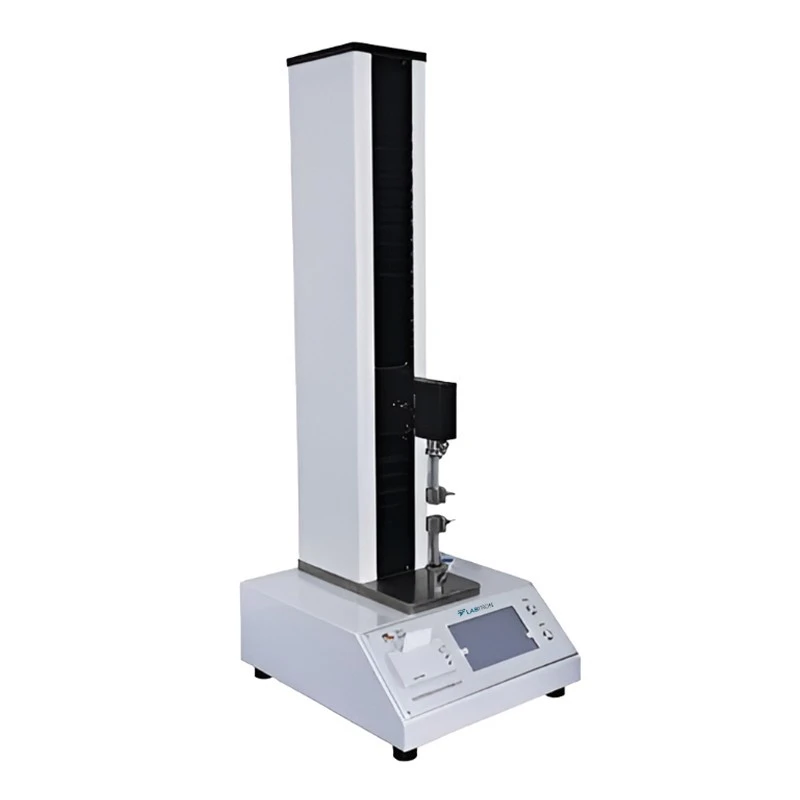

Labtron TP-B20 Vertical Tensile Tester
Specifications
| Country of Origin | UK |
|---|---|
| Accuracy | ± 1% |
| Measuring range | 0 to 30 N (tissue paper) / 0 to 100 N / 0 to 300 N / 0 to 500 N / 0 to 1000 N |
| Brand | Labtron |
| Power Supply | 220 V ± 10% / 50 Hz |
| Net Weight | 55 kg |
| Model | TP-B20 |
| Type of Product | Tensile Testing Machine |
| Dimension (L x W x H) | 450 x 550 x 120 mm |
| Sample Width | 15 mm |
| Sample (Size) Length | 0 to 200 mm adjustable |
| Tensile Strength Velocity | 1 to 399 mm/min (adjustable) |
| Tensile Return Velocity | 1 to 399 mm/min (adjustable) |
Key Features
- Imported noiseless motor, with precise controls
- Large screen display with wide user interface
- Equipped with RS232 interface, connection to PC
- Easy to obtain & print the statistical results
- High automation system with messages processing & motion controls parts
- Multifunctional, flexible operation settings
- Protection against sudden power-off
Product Description
The Vertical Tensile Tester TP-B20 is microprocessor-controlled and adopted with a vertical, many-pillar structure. The clamp distance can be adjusted within the specified scope. It tests directly for normal size samples and can adjust the sample length and measurement range as per the needs. It is used to test the tensile strength, tensile force, tensile energy absorption, fracture length, tensile index, and 180° peel strength of paper, paperboard, plastic film, and other non-metal materials.
Applications:
The Vertical Tensile Tester is used in the paper, paperboard, plastic film, and other non-metal materials industries to test tensile strength, tensile force, tensile energy absorption, fracture, and other parameters.
