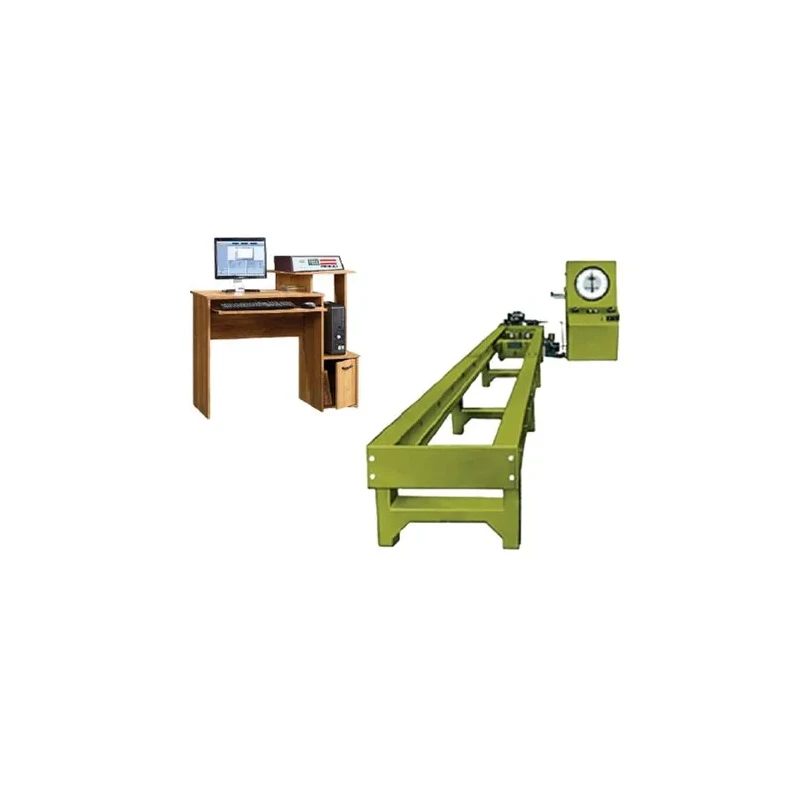

Horizontal Tensile Testing Machine CR-10
Specifications
| Measuring range | 0-100kN |
|---|---|
| Brand | IZA |
| Power Supply | 3 ph| 50 Hz| 415 VAC |
| Dimensions | LXWXH (approx.)2032x750x1960mm |
| Model | CR-10 |
| Weight | 1500kg |
| Maximum Capacity | 100kN |
| Ram Stroke | 150mm |
| Load Resolution | 10N |
| Load Range With +1 % Accuracy | 2-100mm |
| Resolution of Piston Movement | 0.1mm |
| Clearance For Tensile At Fully Descended Working Piston | 50-700mm |
| Clearance Between Columns | 500mm/min |
| Straining/Piston Speeds (at no Load) | 0-300 mm/min |
| Clearance for Compression Test At Fully Descended Working Piston | 0-700mm |
Key Features
- Loading accuracy as high as + 1%.
- Straining at variable speeds to suit a wide range of materials.
- Printer & PC graphs enable study the behavior of the materials.
- Motor driven threaded columns for quick effortiess adjustment of middie
Product Description
Horizontal Tensile Testing Machine This machine can test your strength, speed, endurance, flexibility, balance, coordination, agility, and more! This testing machine is an excellent tool for physical fitness training or just for fun.
- Oftest specimen.
- Continuous roll autographic recorder supplied as standard to enable study
- Easy change from plain to threaded and screwed specimens.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load capacity is 100 kN.
The measuring range is from 0 to 100 kN.
The dimensions are approximately 2032 mm in length, 750 mm in width, and 1960 mm in height.
The weight of the CR-10 is 1500 kg.
The ram stroke length is 150 mm.
It requires a 3-phase power supply at 50 Hz and 415 VAC.
The load resolution is 10 N.
The clearance for tensile testing at the fully descended working piston is between 50 to 700 mm.
The straining speeds at no load range from 0 to 300 mm/min.
The resolution of piston movement is 0.1 mm.
Yes, it allows easy change from plain to threaded and screwed specimens.
A continuous roll autographic recorder is supplied as standard to enable study of the material behavior.
