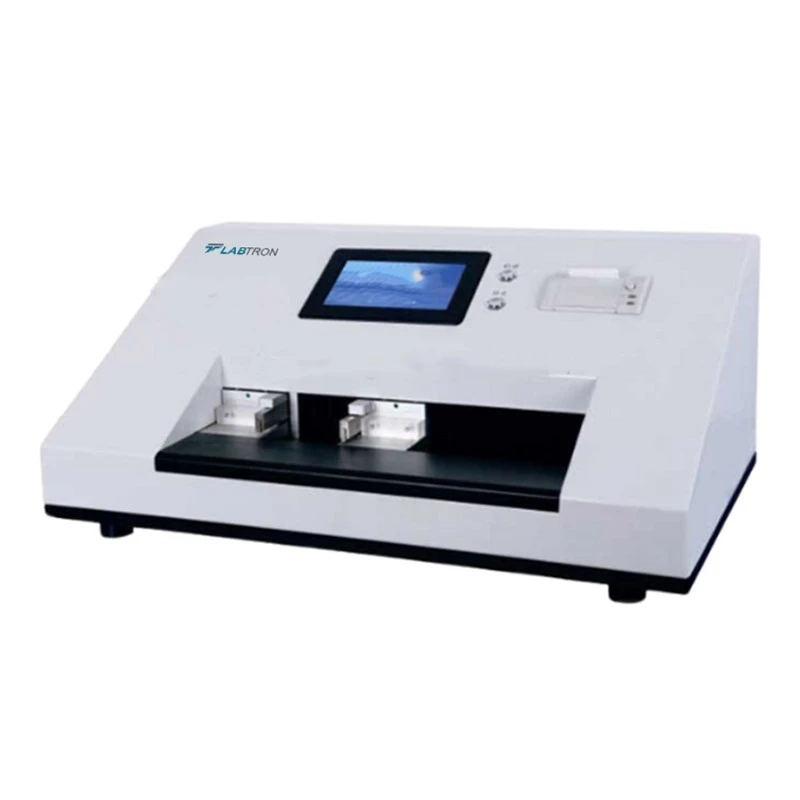

Automatic Horizontal Tensile Tester TP-B11
Specifications
| Country of Origin | UK |
|---|---|
| Accuracy | ± 1% |
| Measuring range | 0 to 30 / 0 to 100 N / 0 to 300 N |
| Brand | Generic Brand |
| Power Supply | 220 V ± 10% / 50 Hz |
| Net Weight | 65 Kg |
| Model | TP-B11 |
| Type of Product | Tensile Testing Machine |
| Dimension (L x W x H) | 920 x 420 x 300 mm |
| Sample Width | 15 mm / 25 mm / 50 mm |
| Sample (Size) Length | 90 to 200 mm |
| Tensile Strength Velocity | 1 to 399 mm/min (adjustable) |
| Tensile Return Velocity | 1 to 399 mm/min (adjustable) |
| Sample Loading | Full automatic to clamp the sample |
| Clamp Air Pressure | 0.4 to 0.6 MPa |
Key Features
- Fully automatic or Semi-automatic sample loading
- Adopted with imported noiseless motor, with precise controls
- Large screen, display the tensile time, tensile strength, tensile curve
- Equipped with RS232 interface, connection to PC for data transfer
- Can get the measurement result directly
- Easy to obtain & print the statistical results like average value, standard deviation, variable coefficient
- High automation system with advanced parts
- Variable tensile size & speed
Product Description
The Automatic Horizontal Tensile Tester TP-B11 is equipped with pneumatic clamps to minimize the error by properly holding the sample. With advanced ARM technology, it has strong data processing functions. The large LCD touch screen interface makes it easy to operate the tester. The tensile tester can test tensile strength, tensile force, tensile energy absorption, fracture length, tensile index, and 180° peel strength of paper, paperboard, plastic film, and other non-metal materials.
Applications:
The Tensile Horizontal Tester is used in the paper, paperboard, plastic film, and other non-metal materials industries to test tensile strength, tensile force, tensile energy absorption, fracture, and other parameters.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this model is from 0 to 30 N, 0 to 100 N, and 0 to 300 N.
The accuracy of the Automatic Horizontal Tensile Tester TP-B11 is ± 1%.
The dimensions of this unit are 920 mm in length, 420 mm in width, and 300 mm in height.
The net weight of this model is 65 kg.
It requires a power supply of 220 V ± 10% at 50 Hz.
This tensile tester can test paper, paperboard, plastic film, and other non-metal materials.
The tensile strength velocity is adjustable from 1 to 399 mm/min.
The sample loading is fully automatic, utilizing pneumatic clamps to secure the sample.
The compatible sample widths are 15 mm, 25 mm, and 50 mm.
The clamp air pressure for this model should be between 0.4 to 0.6 MPa.
Yes, it is equipped with an interface that allows connection to a PC for data transfer.
The large LCD touch screen displays tensile time, tensile strength, tensile curve, and allows easy operation of the tester.
