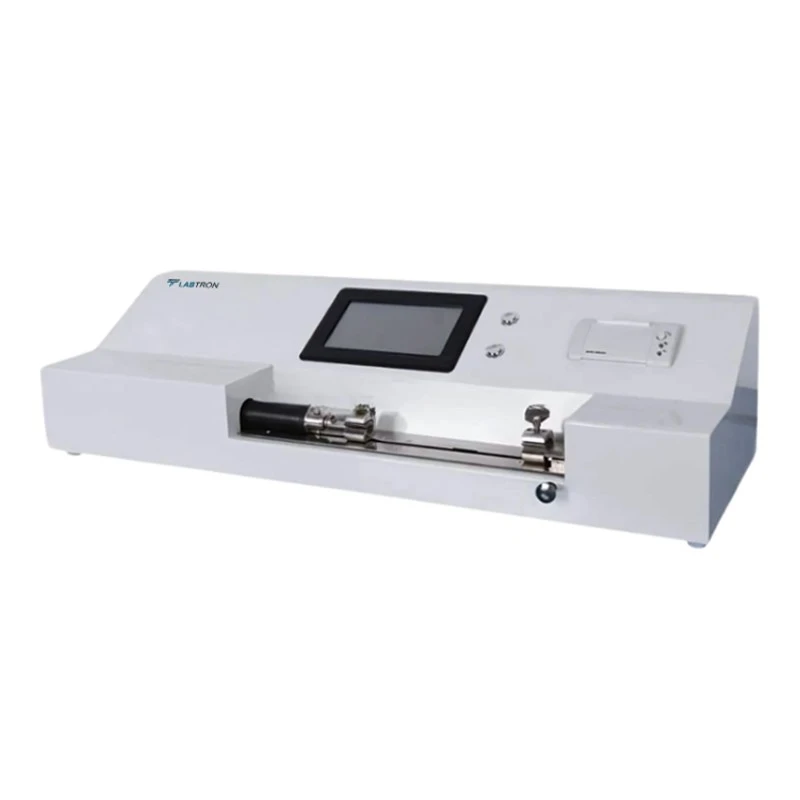

Automatic Horizontal Tensile Tester TP-B12
Specifications
| Country of Origin | UK |
|---|---|
| Accuracy | ± 1% |
| Measuring range | 0 to 30 / 0 to 100 N / 0 to 300 N / 0 to 500 N / 0 to 1000 N |
| Brand | Generic Brand |
| Power Supply | 220 V ± 10% / 50 Hz |
| Net Weight | 40 Kg |
| Model | TP-B12 |
| Type of Product | Tensile Testing Machine |
| Dimension (L x W x H) | 800 x 270 x 200 mm |
| Sample Width | 15 mm |
| Sample (Size) Length | 180 mm (180 / 150 / 100 / 90 / 50 mm adjustable) |
| Tensile Strength Velocity | 1 to 399 mm/min (adjustable) |
| Tensile Return Velocity | 1 to 399 mm/min (adjustable) |
| Sample Loading | Semi-automatic / can clamp the sample using hands |
Key Features
- Fully automatic or Semi-automatic sample loading
- Adopted with imported noiseless motor, with precise controls
- Large screen, display the tensile time, tensile strength, tensile curve
- Equipped with RS232 interface, connection to PC for data transfer
- Can get the measurement result directly
- Easy to obtain & print the statistical results like average value, standard
- deviation, variable coefficient
- High automation system with advanced parts
- Variable tensile size & speed
Product Description
The Automatic Horizontal Tensile Tester TP-B12 is equipped with pneumatic clamps to minimize the error by properly holding the sample. With advanced ARM technology, it has strong data processing functions. The large LCD touch screen interface makes it easy to operate the tester. The tensile tester can test tensile strength, tensile force, tensile energy absorption, fracture length, tensile index, and 180° peel strength of paper, paperboard, plastic film, and other non-metal materials.
Applications:
The Tensile Horizontal Tester is used in the paper, paperboard, plastic film, and other non-metal materials industries to test tensile strength, tensile force, tensile energy absorption, fracture, and other parameters.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this model is from 0 to 30 N, 0 to 100 N, 0 to 300 N, 0 to 500 N, and 0 to 1000 N.
The accuracy of this unit is ± 1%.
The dimensions of this tensile testing machine are 800 mm in length, 270 mm in width, and 200 mm in height.
It requires a power supply of 220 V ± 10% at 50 Hz.
The net weight of this model is 40 kg.
The sample loading can be done semi-automatically, and it can also be clamped manually using hands.
The tensile strength velocity can be adjusted from 1 to 399 mm/min.
The maximum sample length that can be tested is 180 mm, with adjustable options of 180 mm, 150 mm, 100 mm, 90 mm, and 50 mm.
It includes a large LCD touch screen interface that displays tensile time, tensile strength, and tensile curve.
Yes, it is equipped with an interface that allows connection to a PC for data transfer.
The tensile return velocity is also adjustable from 1 to 399 mm/min.
