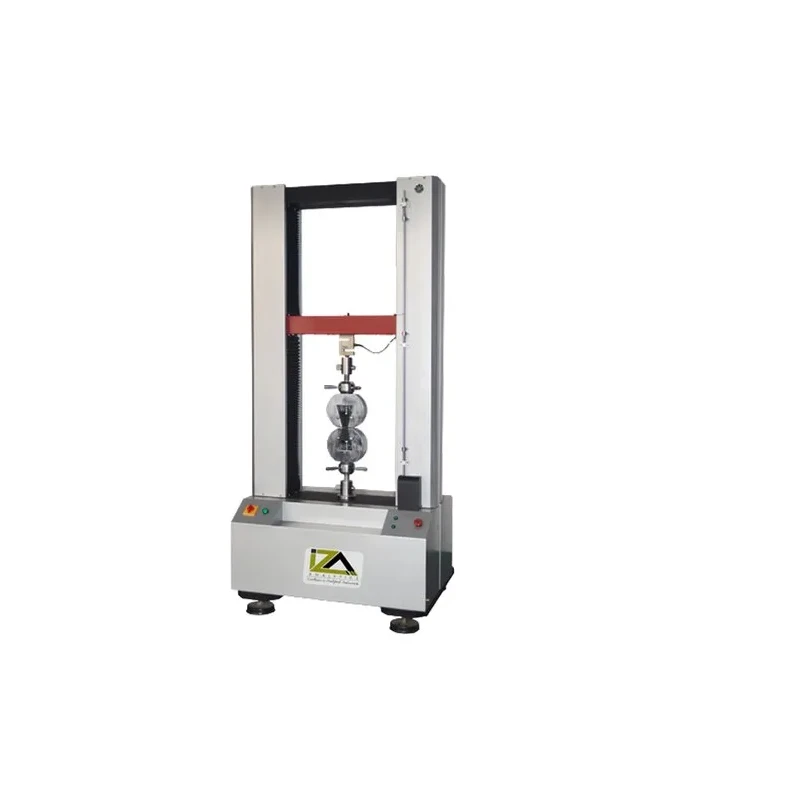

Tensile Testing Machine TNE-5
Specifications
| Brand | IZA |
|---|---|
| Power Supply | 230 V AC/50Hz| 1 Ph 415 V AC/50Hz| 3 Ph |
| Model | TNE-5 |
| Maximum Crosshead Stroke | 1000 mm without load cell & grips. |
| Maximum Test load | 5kN |
| Load Measurement | By means of exchangeable strain gauge based load cell. |
| Load Measuring Range and Accuracy | + 1% on indicated load from 2 % to 100 % of load Capacity. |
| Distance between Columns | 450 mm |
| Drive System Option - DD with DC drive | 1 10speed ratio 5 - 50 mm / min| 25 - 250 mn/min| 50 - 500 mm/ min (Any other speed range available |
| Drive System Option - SD with servo drive | 0.5 mm to 500 mm/min (Any other speed range available on request) |
| Measuring System Microcontroller Panel Crosshead Display Resolution Load range & Resolution | Model DI-MP 0.1 mm by means of rotary encoder 1 /10000 from 0-40 %of range and 1 / 4000 from 40-100% |
Key Features
- High performance
- Easy to use
- Longer life
Product Description
Tensile testing machine is used to test the tensile strength of materials such as fabrics, plastics, rubber, etc. The machine can be used to measure the breaking force or stress applied to the sample.
- Low maintenance
- Affordable rates
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum test load of this model is 5 kN.
The maximum crosshead stroke is 1000 mm without load cell and grips.
It can operate on a power supply of 230 V AC/50Hz for single phase or 415 V AC/50Hz for three phase.
Load measurement is done by means of an exchangeable strain gauge based load cell.
The load measuring range is accurate to +1% on indicated load from 2% to 100% of load capacity.
There are two drive system options: DD with DC drive and SD with servo drive, each offering different speed ranges.
The distance between the columns is 450 mm.
The crosshead display resolution is 0.1 mm, measured by means of a rotary encoder.
This tensile testing machine is used to test materials such as fabrics, plastics, and rubber.
The machine is designed for low maintenance, ensuring ease of use over time.
The measuring system includes a microcontroller panel and a load range resolution of 1/10000 from 0-40% of range and 1/4000 from 40-100%.
