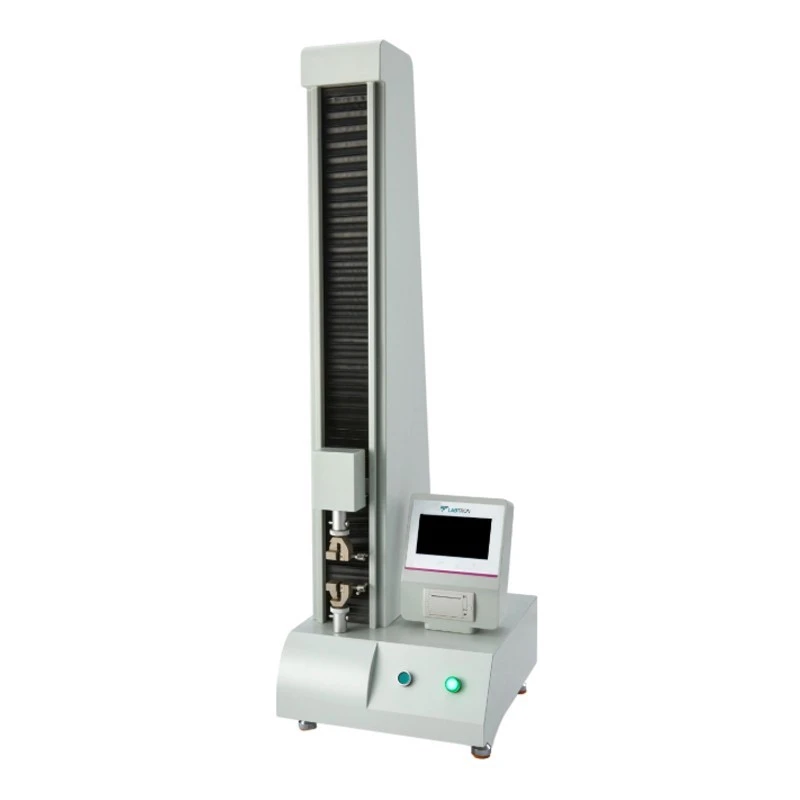

Labtron LVTT-A12 Vertical Tensile Tester
Specifications
| Country of Origin | UK |
|---|---|
| Accuracy | ±1% |
| Measuring range | 0 to 300 N |
| Brand | Labtron |
| Dimension | 460 x 400 x 1030 mm |
| Net Weight | 55 kg |
| Model | LVTT-A12 |
| Type of Product | Tensile Testing Machine |
| Displacement Resolution | 0.01 mm |
| Permissible Temperature | 20 ± 10°C |
| Permissible Humidity | Up to 85% |
| Force Resolution | 0.001 N |
| Stretching Speed | 0 to 500 mm/min / infinitely variable adjustable |
| Stretching Distance | 800 mm |
| Human-Computer Interface | LCD display / curve display |
| Print out | Modulated integrated thermal printer |
Key Features
- High-precision core components
- Stepless speed regulation
- Integrated thermal printer for output
- Touchscreen operation
- Durable small-screw design
- Compliance with the international standards
Product Description
The Vertical Tensile Tester LVTT-A12 has a measuring range of 0 to 300 N with an accuracy of ±1%. Its interface consists of an LCD with curve visualization and allows for real-time curve formation. The tester operates by generating force signals during the test process, which are then converted into electrical signals through an electronic sensor. Additionally, it has an independent password setting to prevent unauthorized changes. Our tester is capable of performing various tests including stretching, stripping, heat sealing, tearing, and puncturing.
Applications:
Our Vertical Tensile Tester LVTT-A12 is used for testing the mechanical properties of materials like plastic films, rubber sheets, paper, and tapes by measuring tensile strength, peeling, heat sealing, and tearing resistance. It is widely applied in quality control, research institutions, and industries such as packaging, pharmaceuticals, and material production.
Standard Accessories:
- Drawing fixture: 1 set
- Puncture fixture: 1 set
- Power cord: 1 piece
