Labtron LUTM-A23 Universal Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Motor Power | 2 Kw |
| Brand | Labtron |
| Model | LUTM-A23 |
| Weight | 3200 Kg |
| Type of Product | Universal Testing Machine (UTM) |
| Overall Dimension | 910 × 830 × 2300mm |
| Maximum Testing Force | 1000kN |
| Class of Testing Machine | 1 |
| Efficient Measure Range | 2% to 100% FS |
| Relative Value Display Accuracy | ±1% |
| Discrimination of Testing Force | 500000 codes |
| Adjustment Range of Stress Rate Control | 1MPa/s to 60MPa/s |
| Accuracy of Stress Rate Control | ±2% |
| Discrimination of Deformation Measure | 500000 codes |
| Adjustment Range of Strain Rate Control | 0.00025/s to 0.0025/s |
| Accuracy of Strain Rate Control | ±2% |
| Discrimination of Displacement Measure | 0.001mm |
| Adjustment Range of Displacement Rate Control | 0.00025/s to 0.0025/s |
| Accuracy of Displacement Rate Control | ±1% |
| Accuracy of Holding Control of Stress | ±1% |
| Tensile Volume | 850mm |
| Compression Volume | 750mm |
| Column Space | 580mm |
| Round Specimen Clamping Range | Ø6 to Ø40mm |
| Flat Specimen Clamping Thickness | 0 to 30mm |
| Straining/Piston Speed at No Load | 0 to 50mm/min |
| Pressure Plate Dimension | Ø155mm |
| Oil Source Console Dimension | 1150 × 800 × 1000mm |
Key Features
- Full computer control testing
- Adopt oil-hydraulic automatic clamping
- Automatic analysis of results
- Overload protection

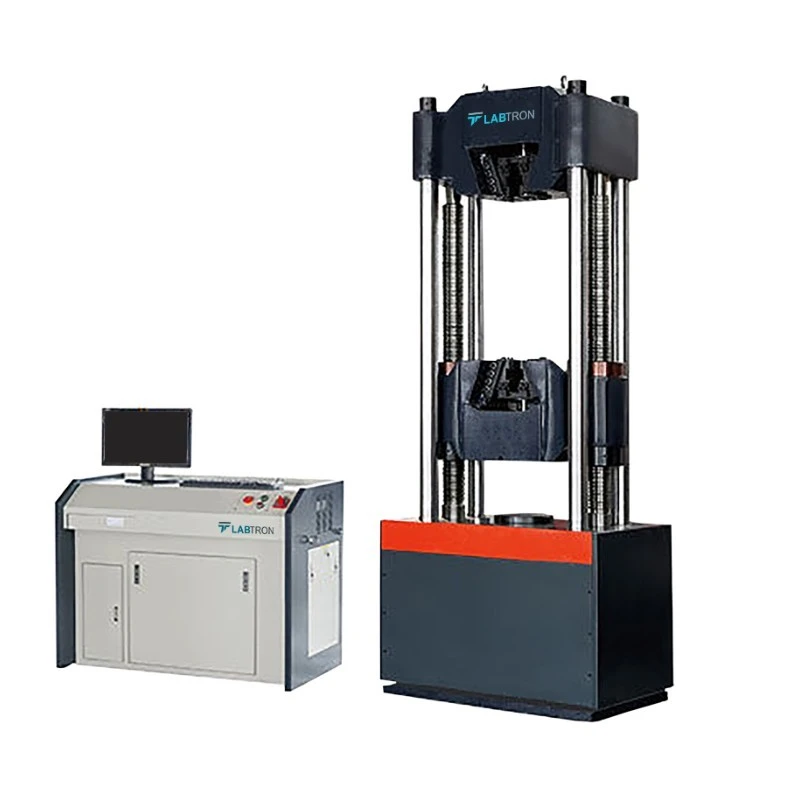

Product Description
The Universal Testing Machine LUTM-A23 is a class 1 machine that uses computer control and electro-hydraulic servo technology. It can handle forces up to 1000 kN. It has a stable and reliable structure with two columns and four reeling screw columns in its load frame. Our universal testing machine adjusts the lower crosshead using a motor, gears, chains, and screws to fine-tune the testing setup accurately.
Applications:
The Universal Testing Machine is versatile, performing tests like tension, compression, bend, shear, and more across industries including rubber, plastics, metal, textiles, automotive, and biomedical sectors.
Standard Accessories:
- High-strength main unit: 1 set
- Tensile fixture (Round Jaw): 2 sets
- Tensile fixture (Flat Jaw): 2 sets
- Compression fixture: 1 set
- Foundation bolt: 4 sets
- Pressure sensor: 1 set
- Linear photoelectric encoder: 1 set
- Computer display Oil Sources: 1 set
- Oil pump: 1 set
- Control PC: 1 set
- Special data acquisition card: 1 suit
- Control software: 1 suit
- Hand Control Box: 1 set
