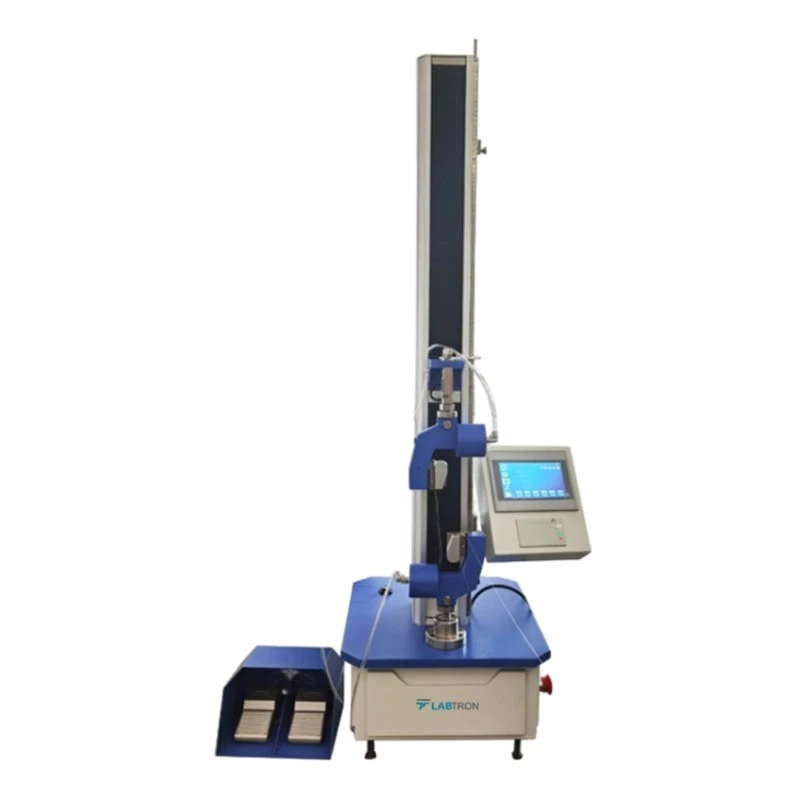

Labtron LUTM-A22 Universal Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 500W |
| Brand | Labtron |
| Power Supply | AC 220V 50/60HZ |
| Connection | Pad / WIFI / or cell phone |
| Model | LUTM-A22 |
| Weight | 120 Kg |
| Type of Product | Universal Testing Machine (UTM) |
| Maximum Capacity | 100N / 200N / 500N / 1KN / 2KN / 2.5KN |
| Test Method | CRE Principle |
| Dimensions (W × D × H) | 670 × 480 × 1440 mm |
| Test Force Range | Full stroke 1% to 100% |
| Effective Stroke | 600 mm |
| Collection Frequency | Up to 1000Hz |
| Force Accuracy | ≤ ± 0.2% F·S |
| Sample Clamp Mode | Manual / pneumatic clamp |
| Stop Mode | Overload Stop / Emergency Stop Button / Specimen Damage Automatic Stop / Upper & Lower Limit Set Automatic Stop / Automatic Return Function |
| Stretch Speed | 0.001 to 500mm/min |
Key Features
- Constructed from aluminum alloy for durability
- Surface treated with high-temperature curing spray
- Includes digital setting functionality
- Features automatic positioning
- Enables adaptation to various test methods
- Incorporated with a high-speed 24-bit A/D converter
Product Description
The Universal Testing Machine LUTM-A22 works on a speed range of 0.001 to 500 mm/min with an effective stroke of 600 mm. Our machine’s capacities range from low-load forces to high-load such as 100 N, 200 N, 500 N, 1 KN, 2 KN, and 2.5 KN. Different tests can be conducted by simply replacing the clip, making it convenient and quick. Equipped with a high-precision sensor for imported load, it features touch screen control with a built-in printer for ease of operation.
Applications:
The Universal Testing Machine (UTM) finds widespread application in quality control, inspection, physical testing, mechanics research, material development, and production environments.
Standard Accessories:
- Manual Grips: 1pc
- English Operation Software: 1pc
- Cable Connect with PC: 1pc
- Load Cell: 1pc
Protection Measures:Beam’s upper and lower limit protective device / Clamp defend touch protective device / Displacement set up & load limit software protective device / Sensor overload protection / Sample load software protection / Overcurrent & overvoltage protection / Real-time monitor for main parts
