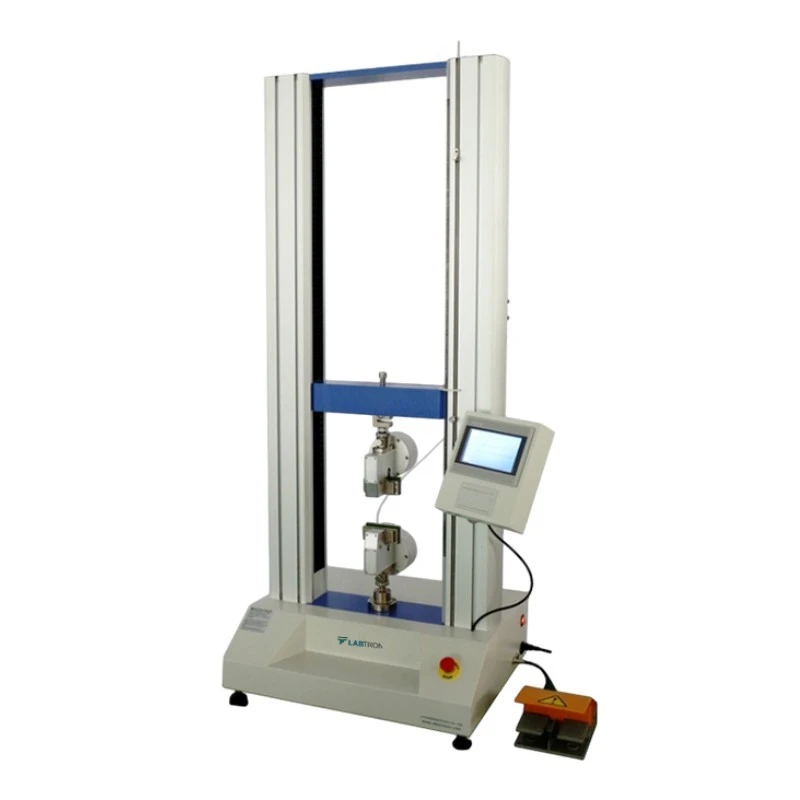

Labtron LUTM-A21 Universal Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | AC 220V 50/60HZ |
| Current | 10A |
| Connection | Pad / WIFI / or cell phone |
| Model | LUTM-A21 |
| Weight | 120 Kg |
| Type of Product | Universal Testing Machine (UTM) |
| Display Mode | Computer Display Mode |
| Maximum Capacity | 500N / 1000N / 2500N / 5000N / 10000N |
| Test Method | CRE Principle |
| Dimensions (W × D × H) | 820 × 630 × 1800 mm |
| Test Speed Range | 0.001 to 1000mm/min / error ≤ ±1% |
| Effective Stroke | 1100 mm |
| Stroke Resolution | 0.001 mm |
| Gantry Structure Width | 400 mm |
| Collection Frequency | 1000 times/second |
| Force Resolution | 1/100 /000 |
| Force Accuracy | ≤ ± 0.2% F·S |
| Sample Clamp Mode | Manual / pneumatic clamp |
| Stop Mode | Overload Stop / Emergency Stop Button / Specimen Damage Automatic Stop / Upper & Lower Limit Set Automatic Stop / Automatic Return Function |
| Machine Drive | Servo Motor Drive / Synchronous Wheel / and Precision Ball Screw Drive |
Key Features
- User-friendly automatic modes are available
- Utilizes imported AC servo drive system
- Constructed with an aluminum alloy profile column
- Scratch-resistant and fade-resistant surface treatment
- User-friendly interface provided by a color touchscreen control panel
- Incorporated with a built-in printer
- Comprises an upright column framework
- Provided by several protection measures
Product Description
The Universal Testing Machine LUTM-A21 is a twin-column floor-standing testing machine capable of handling loads up to 10000 N. With a test speed range of 0.001 to 1000 mm/min and an effective stroke length of 1100 mm, it ensures superior performance. Its real-time monitoring system ensures a continuous display of fault information from major components. Our machine features an open structure that allows users to customize test procedures, data analysis formulas, and test reports. In our machine, testing can be conducted in either tensile or compression mode, utilizing a single frame or dual-column setup.
Applications:
The Universal Testing Machine has test capabilities that encompass tension, compression, bend, shear, bonding strength, break strength, peeling, tearing, cyclic, flexure, and others. It finds applications in industries such as rubber, plastics, leather, metal, composites, nylon line, fabrics, paper, aviation, automotive, biomedical, elastomers, packaging, construction, petrifaction, electrician, vehicle, and many more.
Standard Accessories:
- Manual Grips: 1pc
- English Operation Software: 1pc
- Cable Connect with PC: 1pc
- Load Cell: 1pc
Optional Accessories:
- Desk Top Computer
- Pneumatic Grip
- Other Grips and Load Cell
Protection Measures:Beam’s upper and lower limit protective device / Clamp defend touch protective device / Displacement set up & load limit software protective device / Sensor overload protection / Sample load software protection / Overcurrent & overvoltage protection / Real-time monitor for main parts
