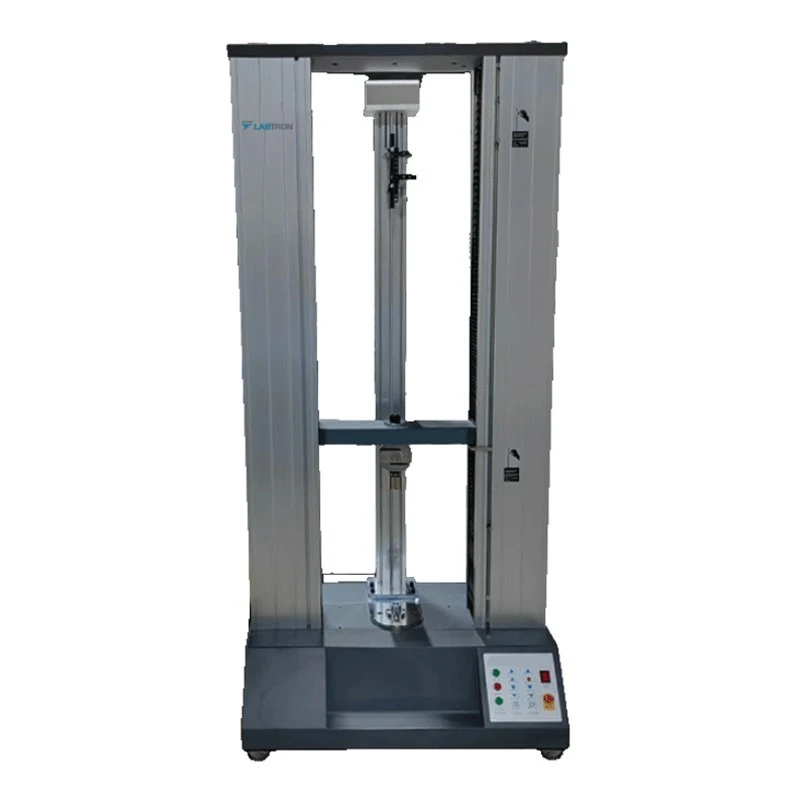

Labtron LUTM-A20 Universal Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | 220V / 50Hz / 0.75 kW |
| Dimensions | 840 × 500 × 2000 mm |
| Model | LUTM-A20 |
| Weight | 200 kg |
| Type of Product | Universal Testing Machine (UTM) |
| Displacement Resolution | 0.0005 mm |
| Maximum Testing Force | 10 kN |
| Range of Testing Force | 2% to 100% FS |
| Test Force Resolution | 1 / ± 500000 maximum test force unchanged |
| Crossbeam Speed Adjusting Range | 0.005 to 500 mm/min |
| Maximum Stretch Stroke | 1450 mm |
| Effective Testing Width | 420 × 420 mm |
| Tester Precision Level | Greater than 0.5 |
| Relative Force Indication Deviation | ± 0.5% within indication |
| Relative Deviation of Displacement | ± 0.5% within indication |
| Regulation Range of Force Control Rate | 0.1 to 2% FS |
| Relative Deviation of Force Control Speed | Within ± 0.5% of set value |
| Relative Deviation of Crossbeam Speed | 0.5% within set value |
| Displacement Control Range | 0.5% to 100% FS |
| Control Precision (Constant Force/Deformation/Displacement) | Less than 10% FS — ± 0.5% of set value / ≥ 10% FS — ± 0.1% of set value |
| Effective Stretching Space (Net Space) | 1030 mm |
Key Features
- Ensures precise measurement and control of various mechanical
- properties
- User-friendly control panel
- Saves time and minimizes errors
- Analyzes stress-strain, force-displacement, force-time, and
- displacement-time curves
- Integrated overload protection mechanisms
- Elongation, compression, peeling, tearing, bending, and shearing tests
- Meets GB, ISO, JIS, ASTM, DIN standards
Product Description
The Universal Testing Machine LUTM-A20 is a benchtop instrument delivering outstanding performance. It has a maximum testing force of 10 kN and a tester precision level of > 0.5. Its versatility allows carrying out different tests. Tests can be done on both metallic and nonmetallic objects. Real-time data curves, post-test analysis, and report generation are commendable features. The tester saves time and minimizes errors with automatic test execution and data processing.
Applications:
Universal testing machines are used to check material quality and its endurance across automotive, aerospace, cable and wires, plastic and rubber, paper packaging, scientific research, etc.
Standard Accessories:
- USA Keli high precision sensor (10 kN)
- Testing software: 64-bit test board
- Delta B2 servo motor + servo driver
- Precision reducer
- TBI high-precision ball screw (2 pieces)
- Lenovo business computer M2601C 4g ROM + HP's printer
- Test fixture
Optional Accessories:
Large deformation fixture, Snail type fixture, Center type fixture, Center type jaw fixture, Large cut jaw fixture, Thin film stretching IJ fixture, Film puncture fixture, Film breaking fixture, Cloth breaking fixture, Tape 180° stripping fixture, Tape 90° stripping fixture, Mirror plate (50*150), Wire rope tensile test fixture, Snail winding, Intermediate winding, Wire rope winding (3-6rrira), Wire rope winding (6—10rrira), Plastic bending fixture, Metal bending fixture, Plastic wood bending fixture, Snail pressure tray, Bedouin compression tray, Large compression tray, Foam indentation hardness fixture, Permanent deformation foam compression fixture, Packing strap snail wave fixture, Full-mouth mold, Half-mouth mold, Cut-off knife (6×115), Right-angle cut-off knife, Cut-off knife (10×150), Custom adapter
