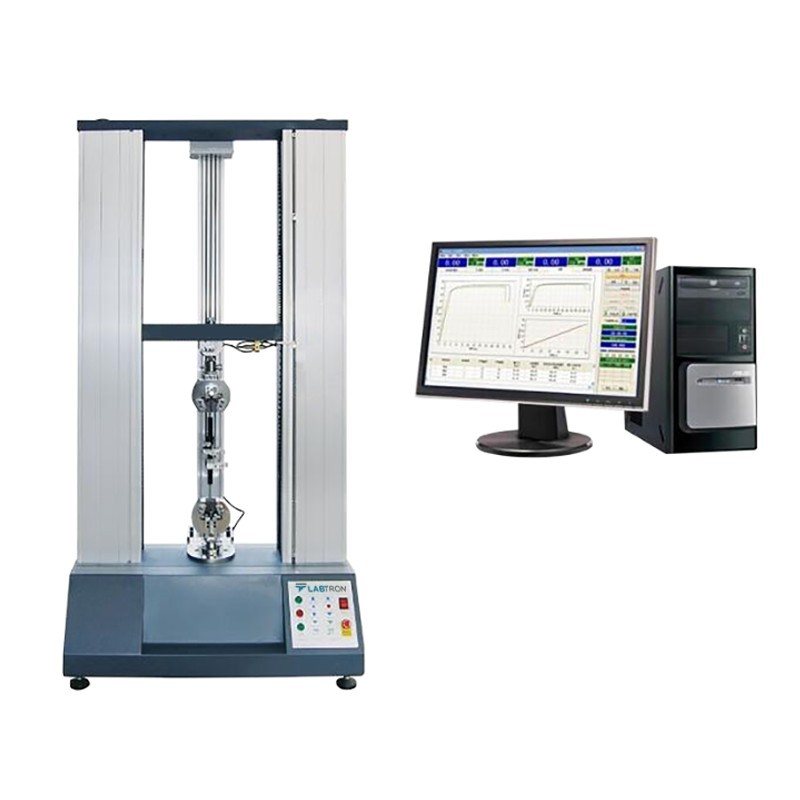

Labtron LUTM-A11 Universal Testing Machine
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Power Supply | 220V 50Hz |
| Dimension | 840 x 500 x 1650 mm |
| Power | 0.75 Kw |
| Model | LUTM-A11 |
| Weight | 180 kg |
| Type of Product | Universal Testing Machine (UTM) |
| Displacement Resolution | 0.0005 mm |
| Maximum Testing Force | 20 kN |
| Test Force Resolution | 1 / 500000 |
| Tester Precision | Greater than 0.5 kN |
| Testing Force Range | 2% to 100% FS |
| Force Relative Deviation | ± 0.5% |
| Displacement Relative Deviation | ± 0.5% |
| Force Unit | g / kg / N / lb |
| Stress Unit | kg/mm² / N/mm² / MPa / lbf/in² |
| Displacement Unit | m / mm / in |
| Force Control Range | 0.1 to 296%/S |
| Force Control Speed Relative Deviation | ± 0.5% |
| Crossbeam Speed Adjusting Range | 0.05 to 500 mm/min |
| Crossbeam Speed Relative Deviation | 0.00005 |
| Constant Force Control Range | 0.5% to 100% FS |
| Constant Deformation Control Range | 0.5% to 100% FS |
| Constant Displacement Control Range | 0.5% to 100% FS |
| Precision For less than 10% FS | ± 0.5% |
| Precision For ≥ 10% FS | ± 0.1% |
| Maximum Stretch Stroke | 1100 mm |
| Effective Stretching Space | 680 mm |
| Effective Testing Width | 420 x 420 mm |
Key Features
- Customizable and printable test reports
- Data and curves are presented during testing
- Post-test curve analysis with relative data points available
- Allows batch testing for specimens
- Automatic shifting and automatic resetting function
- Meets national standards for testing metallic and non-metallic materials
Product Description
The Universal Testing Machine LUTM-A11 can conduct a maximum testing force of 20 KN with a precision greater than 0.5 KN. It can automatically store testing data and conditions to prevent data loss. Provides a safety mechanism that triggers at 2-10% overload. Automatically tests and calculates mechanical properties, with manual intervention. The advanced chipping technology and professional data systems make our tester highly integrated, reliable, and convenient.
Applications:
Our Universal Testing Machine analyzes tensile strength, yield strength, fracture strength, modulus of elasticity, and elongation. It automatically calculates force, tension, and displacement at any designated point.
Standard Accessories:
- Load Sensor: 1 Set
- Testing Software: 1 Set
- Motor Control: 1 Set
- Deceleration System: 1 Set
- Drive Rod: 2 Pieces
- Testing Computer: 1 Set
- Test Fixture: 1 Set
