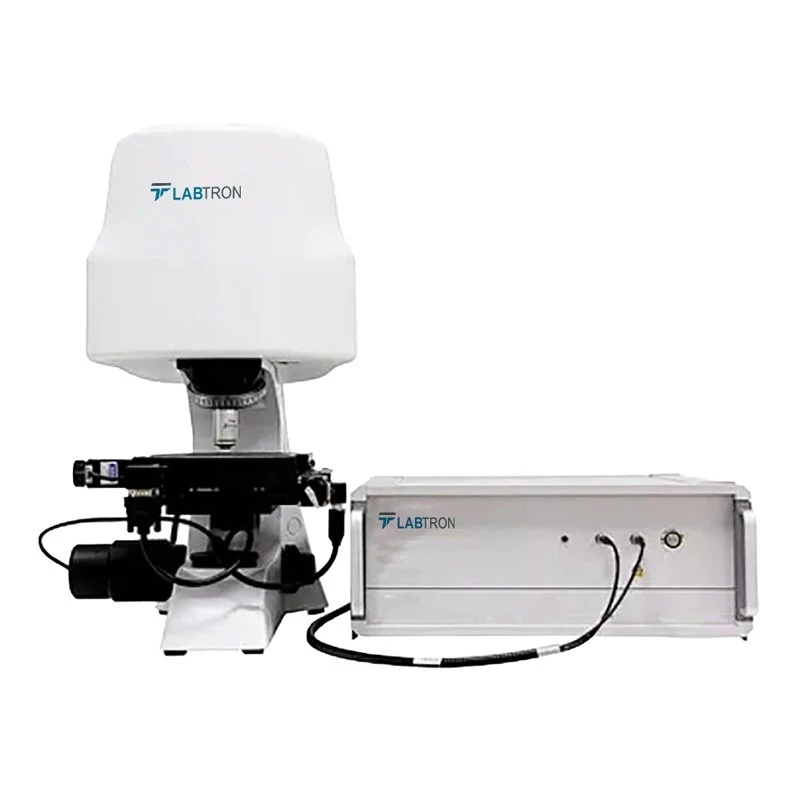

Labtron LRSM-A12 Raman Spectrometer
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Spectral range | 250 to 4300 cm⁻¹ |
| Detector | TE Cooled / semiconductor laser / 2048 x 64 pixels / back-thinned / IR enhanced CCD / InGaAs cooled for 1064 nm |
| Connectivity | USB 2.0 |
| Model | LRSM-A12 |
| Gross Weight | 16 Kg |
| Signal-to-Noise ratio | ≥ 6001 — 1 |
| Temperature Stability | Spectral shift ≤ 1 cm⁻¹ (10°C to 40°C) |
| Type of Product | Spectrometer |
| Scanning Speed | 20 mm/s |
| Spectral Resolution | 8 to 11 cm⁻¹ |
| Dynamic Range | 13000 — 1 |
| Packaging Dimension | 770 x 470 x 650 mm |
| Excitation Wavelength | 785 nm |
| Pixel Size | 14 µm x 14 µm |
| Maximum Laser Power | 500 mW (532 nm — 100 mW) |
| Stability Spectra | ∆λ/λ Less than 0.5% |
| Range of Wavelength | 200 to 1100 nm |
| Central Laser Wavelength | 785 nm ± 0.5 nm |
| Microscope Camera | 3-megapixel / 5-mega pixel camera |
| Focus Adjustment | True confocal |
| Laser Power | ≥ 550 mW (software adjustable) |
| Diameter of Laser Spot | Greater than 1 µm |
| Laser Stability | σ/λ Less than 0.2% |
| Width of Laser Line | 0.08 nm |
| XY Axis 2D Platform | Moving range — 5 x 5 cm / Moving resolution — 0.1 µm / Position Accuracy — 1 µm / Scan speed — 20 mm/s |
| Z Axis (Automated Focusing) | Focusing accuracy — ≤ 0.2 µm / Maximum range — 20 mm / Focusing speed — Less than 10 s |
Key Features
- Advanced Integrated System
- Premium Optics
- Clear, crisp images
- USB Connectivity
Product Description
Raman Spectrometer LRSM-A12 offers a spectral range of 250 to 4300 cm⁻¹ and a resolution of 8 to 11 cm⁻¹. It is fully automated with a 785 nm excitation wavelength. Featuring an advanced CCD detector, it provides heightened sensitivity for outstanding spectroscopic analysis. Our Raman Spectrometer offers exceptional resolution, enabling accurate measurements directly from the laser spot on samples. Its adaptability to various excitation wavelengths ensures versatility across numerous applications.
Applications:
Raman Spectrometer LRSM-A12 is widely used in nanoparticles and new materials research, bioscience, forensic identification, material science, medical immunology, agriculture, food testing, and gemstone analysis.
Standard Accessories:
- Laser Wavelength 532, 633, 785, 830, 1064 nm
- Raman control box
- Printer interface
- Data line D port
- LED power line
- Objective lenses 4X, 10X, 20X
