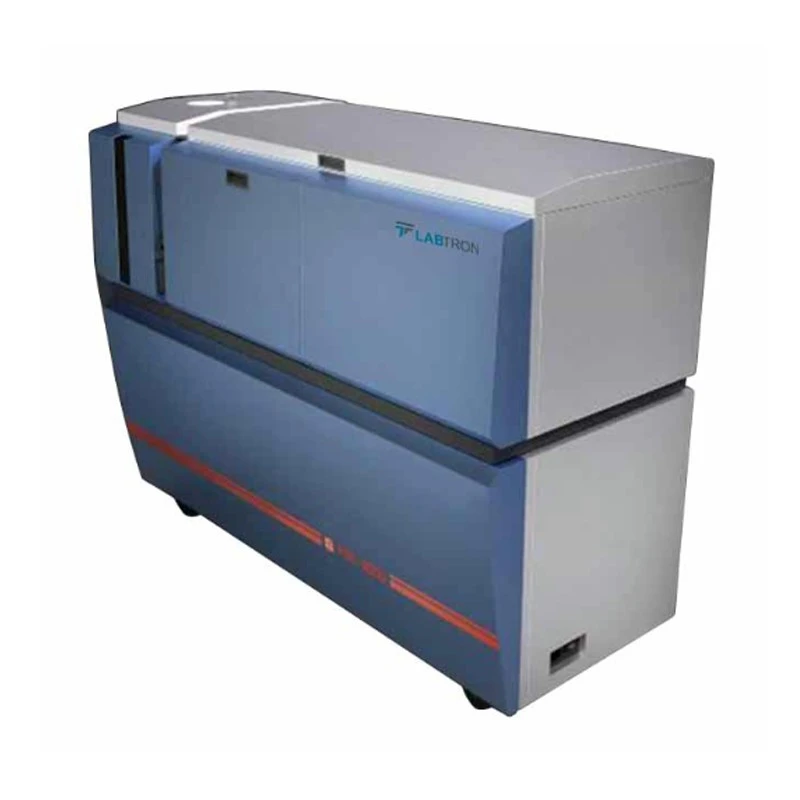

Labtron LICP-A10 ICP Mass Spectrometer
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Humidity | 0.7 |
| Model | LICP-A10 |
| Temperature | 20 ~ 28 °C |
| Type of Product | Spectrometer |
| Focal Length | 1000 mm |
| Resolving Power | ≤ 0.008 nm |
| Cooling Water Temperature | 21 ~ 26 °C |
| Coil Diameter | 25 mm (3 turns) |
| Gas Source | Argon (99.99 %) |
| Wavelength Range (3600 lines/mm) | 180 to 500 nm |
| Wavelength Range (2400 lines/mm) | 180 to 800 nm |
| Elements per minute | 26 elements |
| Standard Deviation | RSD ≤ 1.0 % |
| Correlation Coefficient | ≥ 0.9998 |
| Plasma Gas Flow Meter | 100 ~ 1000 L/h |
| Auxiliary Gas Flow Meter | 10 ~ 100 L/h |
| Carrier Gas Flow Meter | 10 ~ 100 L/h |
| Cooling Water Flow Rate | 5 liters per min |
| Water Outlet Diameter | Ø 10 mm |
| Line Dispersion Rate | 0.26 nm |
| Incident Slit | 20 μm |
| Co-axial Sprayer Diameter | 6 mm |
| Double Room Fog Diameter | 34 mm |
| Quartz Tube Torch Diameter | 20 mm |
| Mirror Dimensions | 78 x 105 x 16 mm |
Key Features
- Scanning range variance ( 190 nm to 500 nm / 190 nm to 800 nm )
- Rapid analysis – 26 elements per minute
- Temperature range – 20 to 28 °C
- Optical pathway – Czerny-turners
- Low detection limit
- Detection of multi-elements including non-metallic
- Single and multi-element measurement method
- Indication for wavelength error and repeatability
- Range of measurement – common to trace
Product Description
ICP Spectrometer LICP-A10 detects trace elements using argon plasma where the atomized liquid sample is injected. With an analyzing rate of 26 elements per minute, results can be achieved with lower levels of detection and measurement of trace and ultra-trace elements. Elements can be traced from liquid and solid samples. Detection of liquid flow from the spray chamber by optical drain sensor offers exceptional sensitivity and accuracy.
Applications:
Used in clinical analysis for detection of metals in biological fluids, environmental analysis for trace element detection in water, soil, plants, pharmaceuticals for traces of catalysts and poison metals like Cd, Pb, industries for noble metal detection.
Element Detection Limits (Unit - µg / ml):
- Element: Be - Wavelength (nm): 313.042, Detection limit: < 1.0
- Element: Mg - Wavelength (nm): 279.553, Detection limit: < 1.0
- Element: Ca - Wavelength (nm): 393.366, Detection limit: < 1.0
- Element: Sr - Wavelength (nm): 407.771, Detection limit: < 1.0
- Element: Ba - Wavelength (nm): 455.403, Detection limit: < 1.0
- Element: Sc - Wavelength (nm): 335.373, Detection limit: < 1.0
- Element: Y - Wavelength (nm): 371.03, Detection limit: < 1.0
- Element: Eu - Wavelength (nm): 381.967, Detection limit: < 1.0
- Element: Yb - Wavelength (nm): 369.419, Detection limit: < 1.0
- Element: Lu - Wavelength (nm): 261.542, Detection limit: < 3.0
- Element: La - Wavelength (nm): 333.749, Detection limit: < 3.0
- Element: Gd - Wavelength (nm): 342.247, Detection limit: < 3.0
- Element: Dy - Wavelength (nm): 353.17, Detection limit: < 3.0
- Element: Ho - Wavelength (nm): 345.6, Detection limit: < 3.0
- Element: Er - Wavelength (nm): 337.271, Detection limit: < 3.0
- Element: Tm - Wavelength (nm): 313.126, Detection limit: < 3.0
- Element: Zn - Wavelength (nm): 213.856, Detection limit: < 3.0
- Element: Cd - Wavelength (nm): 226.502, Detection limit: < 3.0
- Element: Fe - Wavelength (nm): 239.562, Detection limit: < 3.0
- Element: Ti - Wavelength (nm): 344.941, Detection limit: < 3.0
- Element: Cu - Wavelength (nm): 324.754, Detection limit: < 3.0
- Element: Mn - Wavelength (nm): 257.61, Detection limit: < 3.0
- Element: V - Wavelength (nm): 309.311, Detection limit: < 3.0
- Element: B - Wavelength (nm): 249.773, Detection limit: < 5.0
- Element: Ni - Wavelength (nm): 221.647, Detection limit: < 5.0
- Element: Cr - Wavelength (nm): 205.552, Detection limit: < 5.0
- Element: Co - Wavelength (nm): 238.204, Detection limit: < 5.0
- Element: Zr - Wavelength (nm): 343.823, Detection limit: < 5.0
- Element: Mo - Wavelength (nm): 202.03, Detection limit: < 5.0
- Element: Ag - Wavelength (nm): 328.068, Detection limit: < 5.0
- Element: Au - Wavelength (nm): 242.795, Detection limit: < 5.0
- Element: Si - Wavelength (nm): 251.611, Detection limit: < 5.0
- Element: Al - Wavelength (nm): 396.152, Detection limit: < 10.0
- Element: Ir - Wavelength (nm): 224.268, Detection limit: < 10.0
- Element: P - Wavelength (nm): 213.618, Detection limit: < 10.0
- Element: Hg - Wavelength (nm): 194.227, Detection limit: < 10.0
