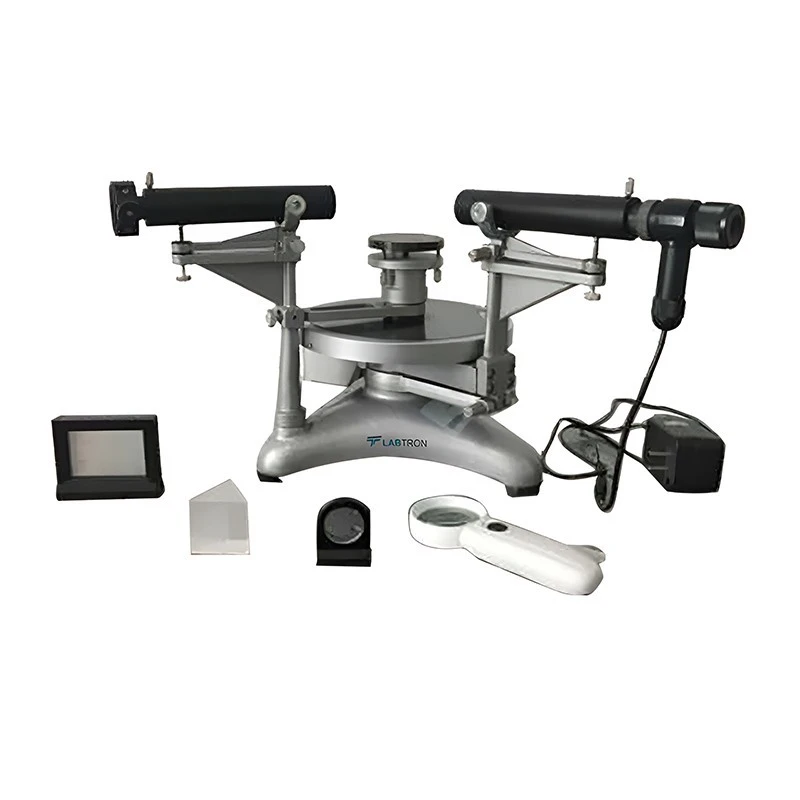

Labtron LASM-A10 Angular Spectrometer
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Net Weight | 11.8 kg |
| Model | LASM-A10 |
| Type of Product | Spectrometer |
| Dimensions (WxDxH) | 251 x 518 x 250 mm |
| Stage diameter | Ø70 mm |
| Angle Measurement Accuracy | 1 Inch |
| Optical Parameter Focal Length | 170 mm |
| Optical Parameter Effective Aperture | Ø 22 mm |
| Optical Parameter Field of View | 3° 22 inch |
| Optical Parameter Focal Length of Telescope’s Eyepiece | 24.3 mm |
| Optical Parameter Maximum Length Between Collimator and Telescope | 120 mm |
| Optical Parameter Slit Width | 0.02 to 2 mm |
| Optical Parameter Diopter Compensation Range | ≥ ±5 diopters |
| Divided Circle Diameter | Ø178 mm |
| Divided Circle Circle Graduation | 0° to 360° |
| Divided Circle Division | 0.5° |
| Divided Circle Vernier Reading Value | 1 inch |
| Stage Rotating Range | 360° |
| Stage Range of Vertical Adjustment | 20 mm |
| Attachments Prism Angle | 60° ± 5 inch |
| Attachments Transformer | 6.3 V / 220 V (3 VA) |
| Attachments Planar Holographic Grating | 300/ mm |
Key Features
- Highly efficient and safe with complete functions
- Easy to clean, corrosion resistant, stainless steel lining
- Compact and space saving design
- Easy to use, operate and less maintenance
- Built in with fine adjusting knob of telescope, collimator unit and brake mount
Product Description
Angular Spectrometer LASM-A10 is a tabletop unit, offering angle measurement accuracy of 1 inch and diopter compensation range of ≥ ± 5 diopters. Incorporated with two verniers at the opposite edges to remove errors induced by the off-center errors of the divided circle and thrusting bearing under the divided circle for smooth rotation. Equipped with a magnifier with handle, optical parallel plate, and planar holographic grating. Built-in with adjustable dioptre, moveable telescope eyepiece, and adjustable stage.
Applications:
Angular Spectrometer is widely used for angular measurements based on polarization, diffraction, refraction, and interference. It is commonly used in color measurements, concentration determination of chemical components, and electromagnetic radiation analysis.
