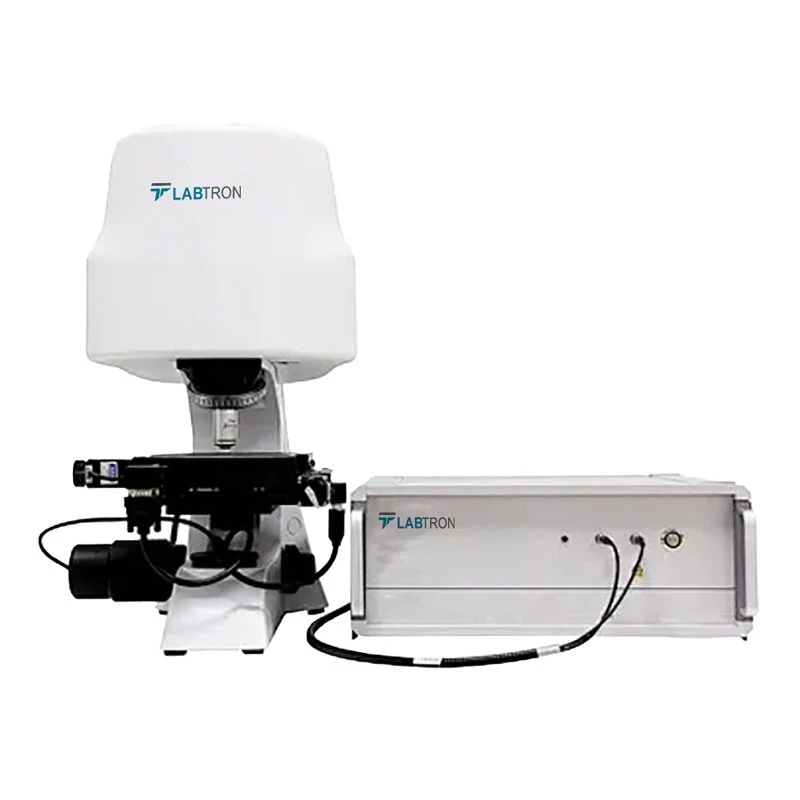

Labtron LRSM-A10 Raman Spectrometer
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Spectral range | 250 to 2700 cm⁻¹ |
| Detector | TE Cooled / semiconductor laser / 2048 x 64 pixels / back-thinned / IR enhanced CCD / InGaAs cooled for 1064 nm |
| Connectivity | USB 2.0 |
| Model | LRSM-A10 |
| Gross Weight | 16 Kg |
| Signal-to-Noise ratio | ≥ 600 — 1 |
| Temperature Stability | Spectral shift ≤ 1 cm⁻¹ (10°C to 40°C) |
| Type of Product | Spectrometer |
| Scanning Speed | 20 mm/s |
| Spectral Resolution | 5 cm⁻¹ |
| Dynamic Range | 13000 — 1 |
| Packaging Dimension | 770 x 470 x 650 mm |
| Excitation Wavelength | 785 nm |
| Pixel Size | 14 µm x 14 µm |
| Maximum Laser Power | 500 mW (532 nm — 100 mW) |
| Stability Spectra | ∆λ/λ Less than 0.5% |
| Range of Wavelength | 200 to 1100 nm |
| Central Laser Wavelength | 785 nm ± 0.5 nm |
| Microscope Camera | 3-megapixel / 5-mega pixel camera |
| Focus Adjustment | True confocal |
| Laser Power | ≥ 550 mW (software adjustable) |
| Diameter of Laser Spot | Greater than 1 µm |
| Laser Stability | σ/λ Less than 0.2% |
| Width of Laser Line | 0.08 nm |
| XY Axis 2D Platform | Moving range — 5 x 5 cm / Moving resolution — 0.1 µm / Position Accuracy — 1 µm / Scan speed — 20 mm/s |
| Z Axis (Automated Focusing) | Focusing accuracy — ≤ 0.2 µm / Maximum range — 20 mm / Focusing speed — Less than 10 s |
Key Features
- Advanced Integrated System
- Premium Optics
- Clear, crisp images
- USB Connectivity
Product Description
Raman Spectrometer LRSM-A10 operates with an excitation wavelength of 785 nm, achieving a spectral resolution of 5 cm⁻¹. It covers a wide spectral range from 250 to 2700 cm⁻¹. Achieves ultra-high resolution from the laser spot on samples for precise measurements. Our Raman Spectrometer utilizes an advanced CCD detector for improved spectroscopic detection. It is compatible with a wide range of excitation wavelengths for diverse applications.
Applications:
Raman Spectrometer LRSM-A10 is widely used in nanoparticles and new materials research, bioscience, forensic identification, material science, medical immunology, agriculture, food testing, and gemstone analysis.
Standard Accessories:
- Laser Wavelength 532, 633, 785, 830, 1064 nm
- Raman control box
- Printer interface
- Data line D port
- LED power line
- Objective lenses 4X, 10X, 20X
