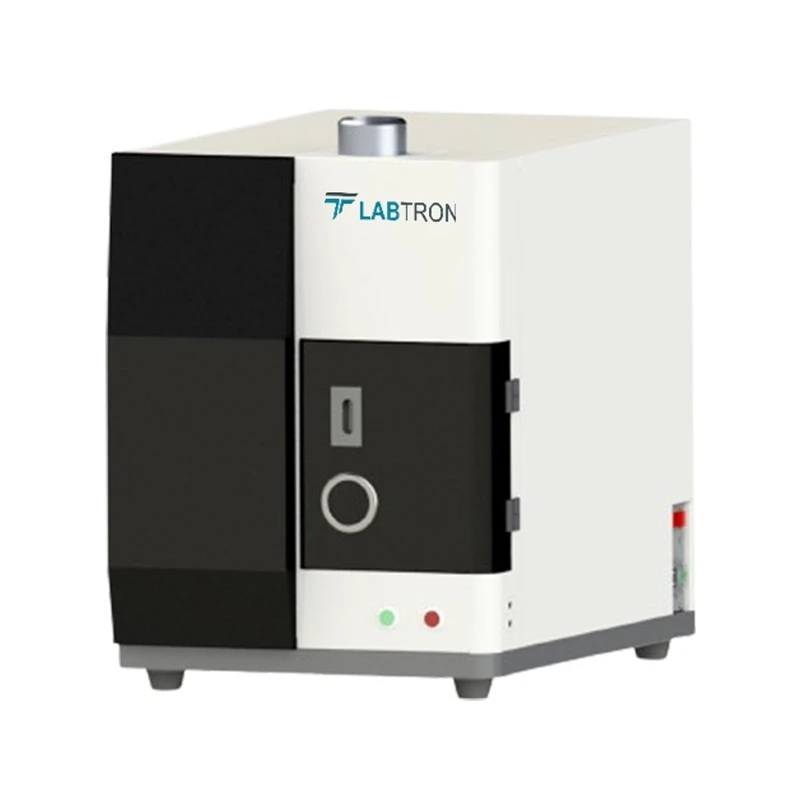

Labtron LOIL-A10 Oil Emission Spectrometer
Specifications
| Country of Origin | UK |
|---|---|
| Operating Humidity | 0 to 95% RH |
| Power Consumption | ≤ 500W |
| Brand | Labtron |
| Power Supply | 220v/50Hz |
| Net Weight | 82 kg |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -40°C to 65°C |
| Spectral range | 201 nm to 810 nm |
| Detector | Highly sensitive CMOS array |
| Model | LOIL-A10 |
| Sample Type | Lubricating oil / hydraulic oil / fuel oil / grease / antifreeze / cooling water / electrolyte / etc |
| Optical System | Paschen-Runge |
| Gross Weight | 130 kg |
| Temperature Control | Thermally stabilized | 37°C ± 0.1°C |
| Type of Product | Spectrometer |
| Focal Length | 400 mm |
| Standards | ASTM D6955 / ASTM D6728 / NB/SH/T 0865-2013 / SN/T 1652-2005 / HB 2009 4-1-2012 / DLT 1550-2016 |
| Output type | AC arc |
| Packaging Dimension | 96 x 70 x 95 cm |
| Injection mode | Rotating disc electrode |
| Injection Volume | ≤ 2 ml |
| Elements | Al / Ba / B / Ca / Cr / Cu / Fe / Pb / Mg / Mn / Mo / Ni / K / Na / Si / Ag / Sn / Ti / V / Zn |
| Dimension (W × H × D) | 500 x 720 x 730 mm |
Key Features
- RDE injection mode
- Supports real-time calibration
- No sample preparation required
- Paschen-Runge optical path structure
- Complies with multiple standards
Product Description
Oil Emission Spectrometer LOIL-A10 is designed with a CMOS array with a spectral range from 201 to 810 nm. It offers a minimum sample volume of 2 ml with a rapid analysis time of 10 seconds. Our spectrometer is equipped with multi-element analysis, allowing it to detect and quantify a wide range of elements in oils and lubricants. It integrates oil data trend analysis and automatic condition diagnosis for effective oil quality monitoring.
Applications:
Oil Emission Spectrometer is ideal for oil condition monitoring, wear metal detection, contaminant analysis, research and development.
Standard Accessories:
- Top Electrode
- Bottom Electrode
- Sample Cup
Optional Accessories:
- Disc Electrode (ODΦ12.5mm, IDΦ3.18mm, thickness 5.08mm)
- Rod Electrode (DΦ6.15mm, length 150mm)
- Sample Cup (ODΦ17.5mm, IDΦ15.5mm, height 10.7mm)
