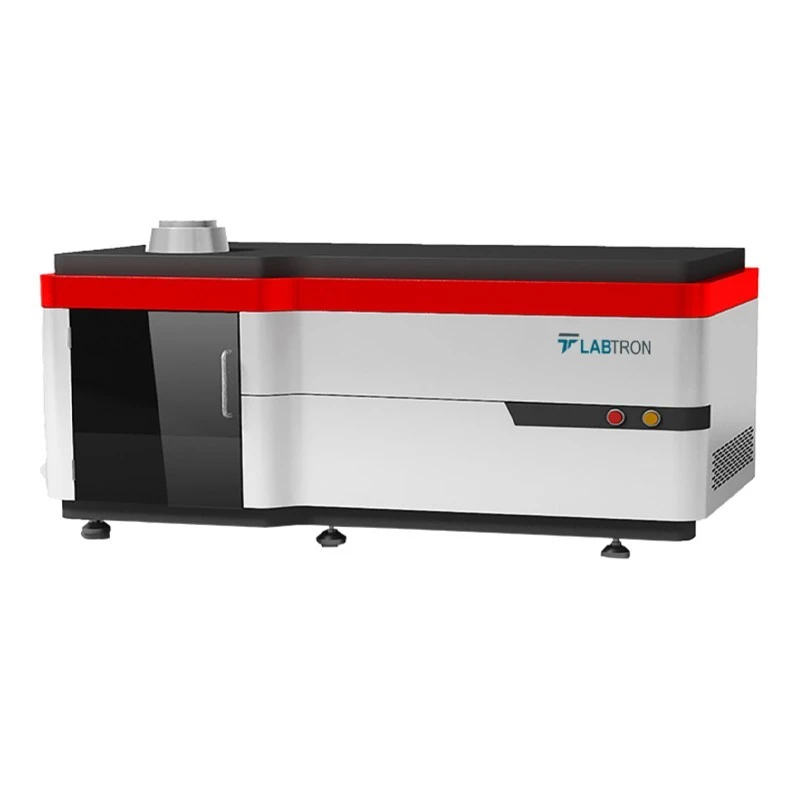

Labtron LICP-C11 ICP Optical Emission Spectrometer
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | Less than 0.065 nm at 200 nm |
| Power Consumption | 880 to 1500 W |
| Frequency | 27.12 MHz ± 0.05% |
| Brand | Labtron |
| Power Supply | 220V / 30A |
| Dimension | 1250 x 693 x 645 mm |
| Model | LICP-C11 |
| Wavelength Range | 160 to 1000 nm |
| Weight | 205 Kg |
| Type of Product | Spectrometer |
| Grating | Middle step grating / 52.67 lp/mm / 64° sparkle angle |
| Numerical aperture | F Less than 8 / ultra-high luminous flux |
| Cooling Water Temperature | 20 to 25°C |
| Cooling Water Flow Rate | Greater than 5 L/min |
| Target Size | 27.6 mm x 27.6 mm / 1024 x 1024 addressing detection units |
| Astigmatism | Equivalent background concentration of 10000 ppm Ca solution at As 189.042 nm Less than 2 ppm |
| Light Chamber | Precision constant temperature / 35 ± 0.1°C / nitrogen flowing 1.8 L/min / 3.8 L/min |
| Plasma Argon Flowmeter | 100 to 1000 L/h (0.16 to 1.6 L/min) |
| Auxiliary Argon Flowmeter | 100 to 1000 L/h (0.16 to 1.6 L/min) |
| Auxiliary Carrier Argon Flowmeter | 100 to 1000 L/h (0.16 to 1.6 L/min) |
| Pressure Maintaining Value | 0 to 0.4 MPa |
| Cooling Water Hydraulic Pressure | Greater than 0.1 MPa |
| Output Working Coil Inner Diameter | 25 mm |
| Torque Tube | Three concentric / external diameter 20 mm |
| Coaxial Nebulizer | Outer diameter 6 mm |
| Double Barrel Atomizing Chamber | Outer diameter 34 mm |
| Circuit Type | Solid-state RF Power supply / with auto match function |
| Frequency Stability | Less than 0.1% |
| Power Output Stability | Less than 0.3% |
| Escaped RF Radiation | 30 cm away from instrument / Electric Field — E Less than 2 V/m |
Key Features
- Fully automatic matching technology
- Stable performance
- Sample injection automation
- NDRO, FF, and RAI modes for flexible data logging
Product Description
ICP Optical Emission Spectrometer LICP-C11 operates over a wavelength range of 165 to 1000 nm. The circuit type is a solid-state RF power supply designed with an automatic matching function to optimize power delivery and stability during operation. It uses a middle-step grating, enhancing spectral resolution and light dispersion. Our ICP Optical Emission Spectrometer includes a three-way gas control for precise adjustment of plasma, auxiliary, and carrier gas flows, enhancing overall performance and stability.
Applications:
ICP Optical Emission Spectrometer LICP-C11 is used to analyze trace elements in substances soluble in nitric, hydrochloric, and hydrofluoric acids, in fields like environmental protection, petroleum, rare earths, semiconductors, geology, metallurgy, clinical medicine, food safety, forensics, and agriculture.
Standard Accessories:
Cable × 1 line, Plastic drum × 1 pcs, Argon Gas Reduction × 2 pcs, PU tube 30 m × 1 pcs, PU tube 10 m × 1 pcs, PVC transparent tube × 1 meter, Plug × 1 pcs, Ground copper braided wire × 15 lines, Brass tube × 1 pcs, Filter element of filter tank × 4 pcs, Capillary tube × 0.5 meter, Torch pipe × 2 pcs, Double cylinder fog chamber × 2 pcs, Atomizer × 1 pcs, Pump head hose of Peristaltic Pump (Ф1.65 L45cm) × 3 line, Electronic Fuses(10A,250V,6×30mm) × 2 line, Electronic Fuses (6.3A,250V,5×20mm) × 2 line, Cylindric atomizer × 2 pcs, Silicone tube (Inner 2mm, outer 4mm, hardness:55HRC) × 0.3 meter, Hose adapter (ZCJH-2*6 INNER 6-2) × 4 pcs, Hose adapter (ZC-1/16*3/32 INNER 1.6-2.4) × 4 pcs, Spherical connector clamp- 1 pcs, O shape seal ring (32.5×3.55) × 2 pcs, O shape seal ring (5.6×1.8) × 4 pcs, Quick Connector(Φ6) × 2 pcs, Raw material belt (26mm×20m, thin:0.1~0.2mm) × 1 roll, Ribbon × 30 line, Toolkit- 1 set, Computer (Lenovo) × 1 set, Displayer (Lenovo) × 1 set, Canon Printer (Laser printer) × 1 set, Cooling water tank × 1 set
Optional Accessories:
Automatic Sampler
