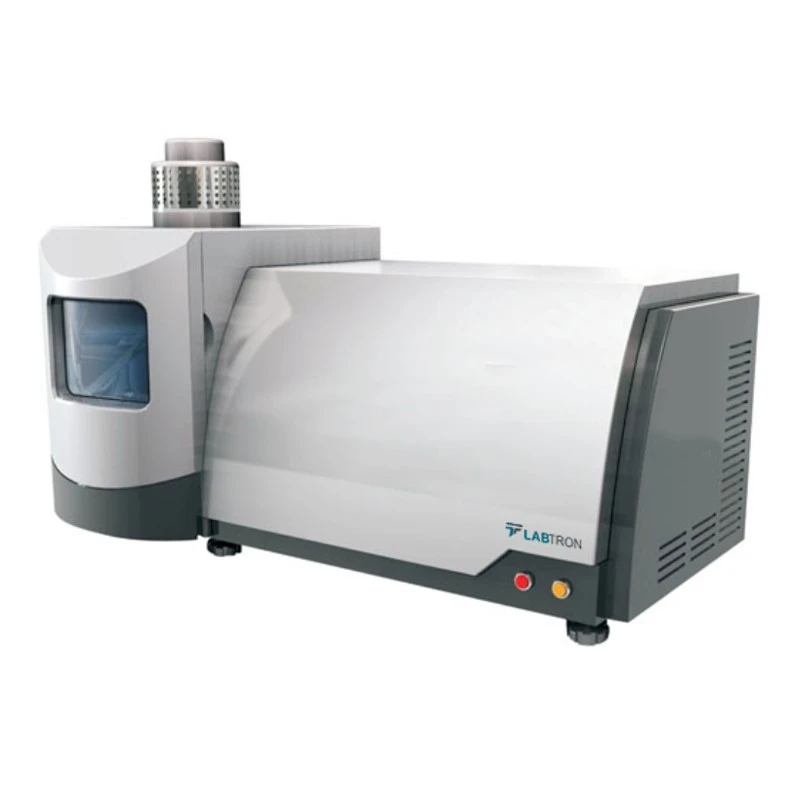

Labtron LICP-B10 ICP Spectrometer
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Short-term stability — RSD ≤ 1.5% | Long-term stability — RSD ≤ 2% |
| Resolution | ≤ 0.015nm (3600 line grating) / ≤ 0.030nm (2400 line grating) |
| Frequency | 27.12 MHz / Frequency stability — Less than 0.05% |
| Brand | Labtron |
| Model | LICP-B10 |
| Wavelength Range | 195 to 500 nm for 3600 line grating / 195 to 800 nm for 2400 line grating |
| Output Power | 800 W to 1600 W / adjustable with power efficiency more than 65% |
| Type of Product | Spectrometer |
| Focal Length | 1000 mm |
| Spray Chamber | Scott double pass spray chamber |
| Test Speed | 5 to 8 elements/min |
| Optical Type | Czerny turner |
| Grating Specifications | Huge holographic grating with 3600 L/mil or 2400 L/mil and 80 mm × 100 mm of ruling area |
| Output Power Stability | ≤ 0.05% |
| Induction Coil | 25 mm × 3 ID (Internal diameter) / equipped with three concentric quartz torch tubes 35 mm ED (External diameter) |
| Suitable Sample Content Range | Liquid sample — 0.01 ppm to several thousand ppm | Solid or power sample — 0.001% to 70% |
| Limits of Detection (LOD) | 1ppb to 10ppb for most elements |
| Photomultiplier Tube Specification | R212 / R928 |
| Negative High Voltage (V) | -50 to -1000 V |
| Circuit Measuring Range | (10^(-12) to 10^(-4)) A |
| Signal Acquisition | VF conversion |
| Temperature for Storage and Transportation | 15°C to 25°C |
| Humidity for Storage and Transportation | ≤ 70% |
| Power Stability | 220 ± 10V | 50 to 60 V |
| Packaging Dimension and Gross Weight | 1st case — 188 x 111 x 105 / 348 kg | 2nd case — 60 x 60 x 55 / 25 kg | 3rd case — 59 x 67 x 97 / 80 kg | 4th case — 38.5 x 38.5 x 63 / 47 kg |
Key Features
- Highly advance optical design
- Holographic grating for minimum scattering of light
- Correction of spectral interference to improvise detection
- System controlled torch movement for optimized position
- System controlled mass flow controller for carrier gas, auxiliary gas and plasma gas
- 27.12 MHz RF generator for efficient ionization
- Auto-coupling system
- Peristaltic pump for stable flow rate and drainage of sample
- Argon gas cylinder last up to 8 hours
- Auto-sampler can be provided
Product Description
ICP Spectrometer LICP-B10 is an instrument which measures elements in ppb levels with least interference and reduces the time taken for analysis by detecting 5 to 6 elements in 1 min. Excellent analytical precision, high optical resolution, fully automated, wide wavelength range with 2400 line grating, powerful analysis software, high performance solid-state RF system, high accuracy, etc., are some of the characteristic features. The equipment consists of a Scott-type spray chamber, quartz torch, spectrophotometer with Czerny-Turner monochromator, detector with photomultiplier tube, and data processing system, which allows multi-element measurement along with high resolution.
Applications:
It is used for quantitative and qualitative analysis of elements in the given sample. Various fields like petrochemicals, pharmaceuticals, agriculture, environmental, food industry, metallurgy, processing industry, etc. require it for several operations.
Standard Accessories:
- Gas pressure regulator
- Water cooling system
- Voltage stabilizer
- ICP 2060T power cable
- Copper cable for ground
- Sampling system: nebulizer, spray chamber, plasma torch
Optional Accessories:
- Auto-sampler
Software Details:
- Allows selection of multiple elements and parameters for analysis
- Faster Calibration function
- Correction of background interference
- Report generation with single button press
- Many export options
- Real-time graphical display of instrument status
- Plasma ignition with one button press
- Large database to select spectral lines according to requirement
