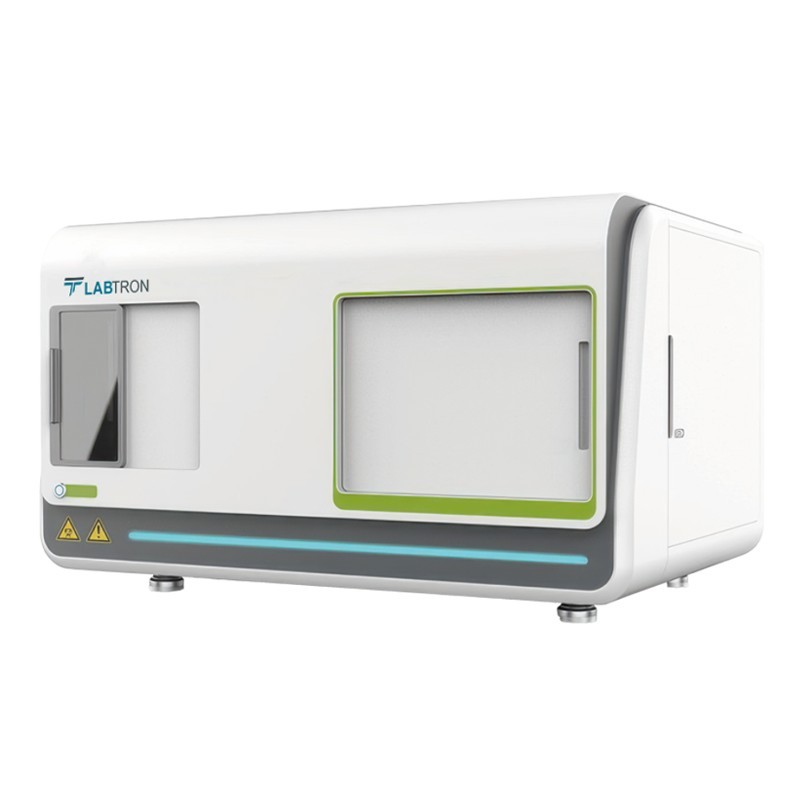

Labtron LFPS-A10 Fluorescence Pathology Slide Scanner
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Focus | Automatic Z-axis focusing / using a piezoelectric ceramic motor / focusing accuracy of 10 nm |
| Light Source | Monochrome LED solid-state hybrid excitation light source |
| Model | LFPS-A10 |
| Weight | 170 kg |
| Type of Product | Pathology Slide Scanner |
| Camera | Fluorescent high sensitivity camera / brightfield high-resolution RGB camera |
| Objective | 20x NA 0.8 / 40x NA 0.95 |
| Dimension (L × W × H) | 1050 × 725 × 569 mm |
| Focus Mode | Automatic/manual |
| Scanning Capacity | 20 |
| Acceptable Slides | 26 × 76 mm (1 × 3 inch) / 52 × 76 mm (2 × 3 inch) |
| Sample Loading Method | Automatic loading by mechanical arm / with electric control |
| Sample Identification | Automatic identification / manually adjustable area |
| Scanning Mode | Single-slide scanning / multi-slide scanning |
| Multi-layer Scanning | Yes |
| Brightfield Scanning Time | ≤ 40 s (20x / 15 × 15 mm area) |
| Image Format | TIFF / SVS |
| Browsing Mode | Support local software / browser / mobile viewing |
| Fluorescence Model | DAPI / FITC / CY5 (filter cube up to 8) |
| Digital Slide Format | Proprietary digital slide format SDPC / supports SVS and TIFF slide formats |
Key Features
- Automatic sample loading
- Sample Identification
- Multi-layer Scanning
- High-sensitivity Cameras
- Various Fluorescence Channels
- TIFF/SVS Image Formats
Product Description
Fluorescence Pathology Slide Scanner LFPS-A10 accommodates up to 20 slides, supporting both single-slide and multi-slide scanning modes. It is compatible with standard slides measuring 26 × 76 mm and larger slides of 52 × 76 mm. The system uses a monochrome LED hybrid light source, ensuring stable lighting for brightfield and fluorescence. Its focus via a piezoelectric ceramic motor-driven Z-axis achieves exceptional 10 nm accuracy. Our scanner comes with a manual focus adjustment ideal for digitizing histology and cytology samples.
Applications:
Our Fluorescence Pathology Slide Scanner LFPS-A10 is a versatile tool with applications in clinical diagnostics, education, research, and telepathology. It digitizes slides for pathology, enabling precise analysis and facilitating telepathology consultations.
