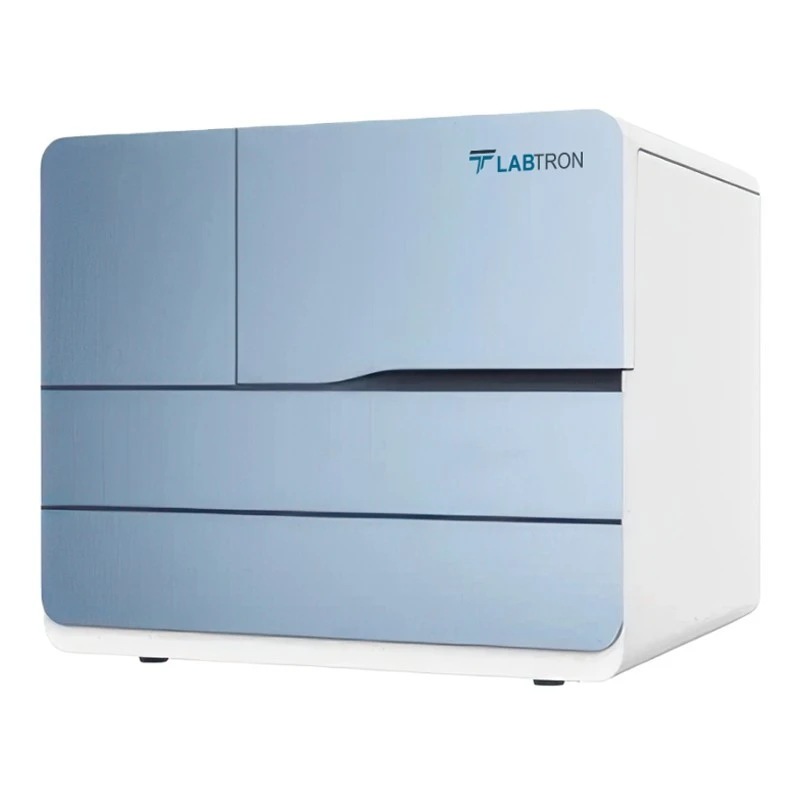

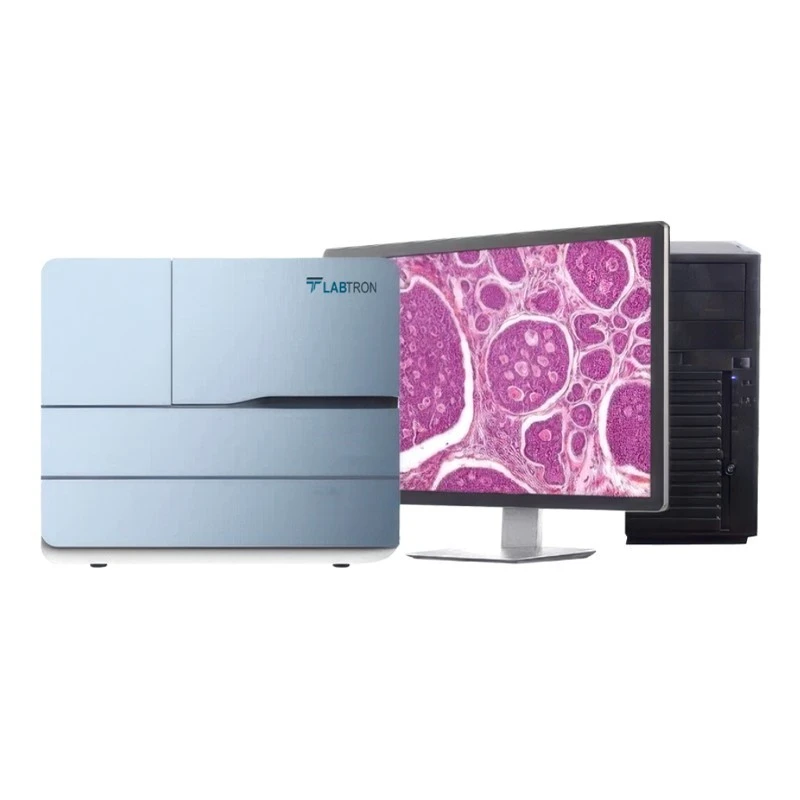

Labtron LDPS-A15 Digital Pathology Slide Scanner
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | ≤ 0.25 μm/pixel (20x) / ≤ 0.125 μm/pixel (40x) |
| Brand | Labtron |
| Focus | Automatic Z-axis focusing / using a piezoelectric ceramic motor / focusing accuracy of 10 nm |
| Model | LDPS-A15 |
| Weight | 60 kg |
| Type of Product | Pathology Slide Scanner |
| Scanning Speed | Less than 25 s (20x — 15 × 15 mm) / Less than 90 s (40x — 15 × 15 mm) |
| Magnification | 20x / 40x |
| Objective | 20x APO NA 0.8 / 40x APO NA 0.95 |
| Movement Control | Magnetic linear control |
| Dimension (L × W × H) | 635 × 595 × 571 mm |
| Focus Mode | Automatic / Manual |
| Scanning Capacity | 60 |
| Acceptable Slides | 1 × 3 inch / 2 × 3 inch |
| Light Source Scanning | LED long-life light source |
| Sample Loading Method | Automatic loading / with electric control |
| Sample Identification | Automatic identification / manually adjustable area |
| Multi-layer Scanning | Yes |
| Brightfield Scanning Time | ≤ 35 s (20x — 15 × 15 mm) |
| Image Format | SDPC / TIFF / SVS |
| Positional Accuracy | 20 nm |
| Label Identification | Linear code / QR code |
Key Features
- Fast Scanning
- Smart Identification
- High Resolution
- Dual Magnifications
- Magnetic linear contro
Product Description
Digital Pathology Slide Scanner LDPS-A15 can scan up to 60 slides, ensuring high-throughput efficiency. It accommodates both 1×3-inch and 2×3-inch slides, offering versatility for various sample sizes. The scanner utilises advanced apochromatic objectives for superior clarity and high numerical aperture imaging. Its 20 nm positional accuracy and 10 nm Z-axis focusing, achieved via a piezoelectric motor, ensure precision. Our Digital Pathology Slide Scanner uses cutting-edge technology and precise optics to deliver reliable results.
Applications:
Our Digital Pathology Slide Scanner LDPS-A15 ensures high-resolution imaging, multi-layer scanning, and efficient workflow in laboratories and healthcare settings. It is ideal for pathology, biomedical research, and clinical diagnostics.
