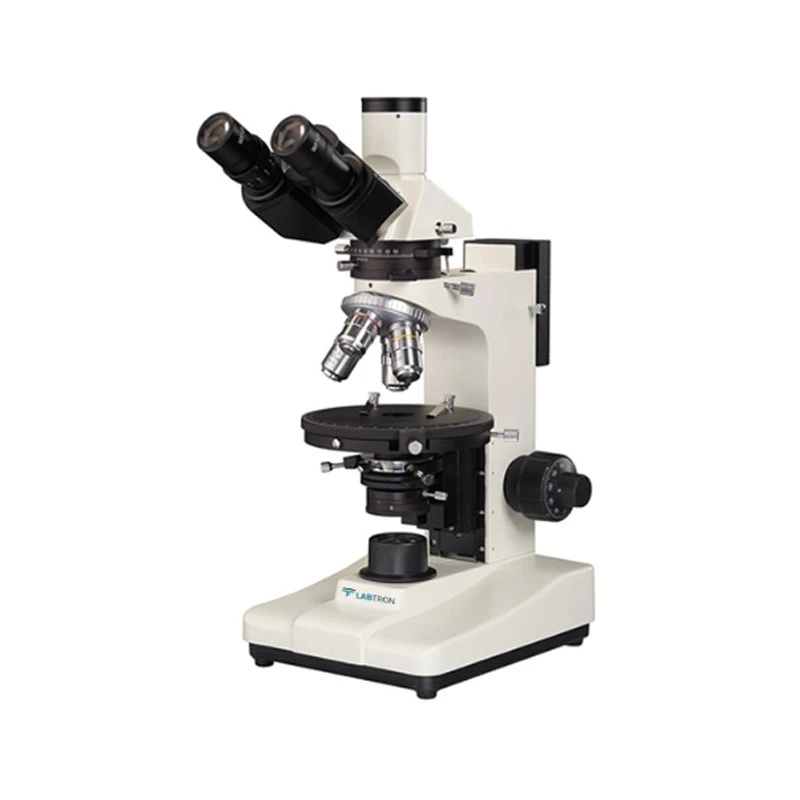

Labtron LPM-B10 Polarizing Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Dimension | 400 × 280 × 530 mm |
| Model | LPM-B10 |
| Optical System | Finite Optical System |
| Weight | 12 Kg |
| Type of Product | Microscope |
| Condenser | Abbe condenser NA 1.25 with rack and pinion adjustable mechanism |
| Objectives | Strain-free achromatic objective (no cover glass) — PL 5X/0.12 / PL L 10X/0.25 / PL L40X/0.60 (spring) / PL L 60X/0.75 (spring) |
| Focusing | Coaxial coarse/fine focus system / with tension adjustable and limit stopper / minimum division of fine focusing — 0.002 mm |
| Eyepiece | Eyepiece WF10X/18 with Division eyepiece 10X/18 mm 0.10 mm/div |
| Viewing Head | Trinocular viewing head / 30° inclined |
| Nosepiece | Quadruple (Frontward ball bearing inner locating) |
| Transmitted Illumination | Polarizer 360° rotatable / have 0 / 90 / 180 / 270 four scale / Collector for halogen lamp illumination / Illumination 6V / 20W / halogen lamp / adjustable brightness |
| Reflected Illumination | Rotatable Polarizer 6V / 20 W / halogen lamp / adjustable brightness |
| Revolving Round Stage | Rotatable stage / Diameter Φ150 mm / 360° graduated (in 1° increments) / minimum retardation resolution 6 inch / center adjustable and with tightener |
Key Features
- Trinocular viewing head, 30° inclined
- 5.1 MP CMOS senor to be mounted on top
- Equipped with polarizer and analyzer for polarizing effect
- Revolving round stage Diameter Φ150 mm, 360° graduated
- Optical compensator: λ Slip (first class red), 1/4λ Slip, quartz wedge
- Polarizer and Analyzer attachment with Bertrand lens
- Dual illumination system, i.e. Transmitted and Reflected
Product Description
Polarizing Microscope LPM-B10 is an upright microscope with a trinocular viewing head inclined at 30°. The 5.1 MP CMOS sensor is mounted on top for capturing still images and videos. It offers a dual illumination system — transmitted and reflected — for flexible observation. The focusing system includes a coaxial coarse and fine focusing mechanism with adjustable tension and up stop, featuring a 2 µm minimum fine focusing division. The sliding in/out polarizer is located at the top of the collector, and the 0°–90° gradation rotatable analyzer is used to observe single polarization. High-quality and high-contrast images are produced using this microscope.
Applications:
Polarizing Microscope is used in electronics, geology, metallurgy, mining, medicine, and pharmaceutical studies to analyze the depth and details of the specimen under observation.
CMOS Camera:
- Camera Sensor Type: CMOS (Micron) APTINA MT9P001
- Sensor Size: 1 / 2.5 inch (5.7 mm × 4.28 mm)
- Resolution: 2592 × 1944 (5.1 MP)
- Pixel Size: 2.2 × 2.2 µm
- Frame Rate: 5 fps @2592×1944, 18 fps @1280×960, 60 fps @640×480
- Sensitivity: 0.53 V / lux-sec
- Signal to Noise Ratio (SNR): 40.5 dB
- Dynamic Range: 66.5 dB
- A/D Converter: 10-bit, 8-bit RGB to PC
- Spectral Range: 380 to 650 nm (IR Filter)
- Binning: 1×1, 2×2, 4×4
- Exposure Time: 0.294 ms to 2000 ms
- Color Rendering Technique: Ultra fine™ Color Engine
- White Balance: One Push ROI, Manual Temp-Tint Adjustment
- Capture-Control API: Native C/C++ SDK, DirectShow, Twain
- Capture Mode: Still Picture and Video
- Compatible Operating Systems: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux (Kernel 2.6 or Above)
- PC Requirements - CPU: Equal to Intel Core 2.2, 2.8 GHz or higher, Memory: 2 GB or More, USB Port: USB 2.0
- Operating Temperature: -10 to 60°C
- Operating Humidity: 30% to 80% RH
- Power Supply: Over USB Port
Polarizing Attachment:Polarizer — Sliding in/out of optical path / located on top of collector / Analyzer — Rotatable analyzer with gradation 0–90° / Bertrand lens — Sliding in/out of optical path / Optical Compensator — λ Slip (first class red) / 1/4λ Slip / Quartz wedge
