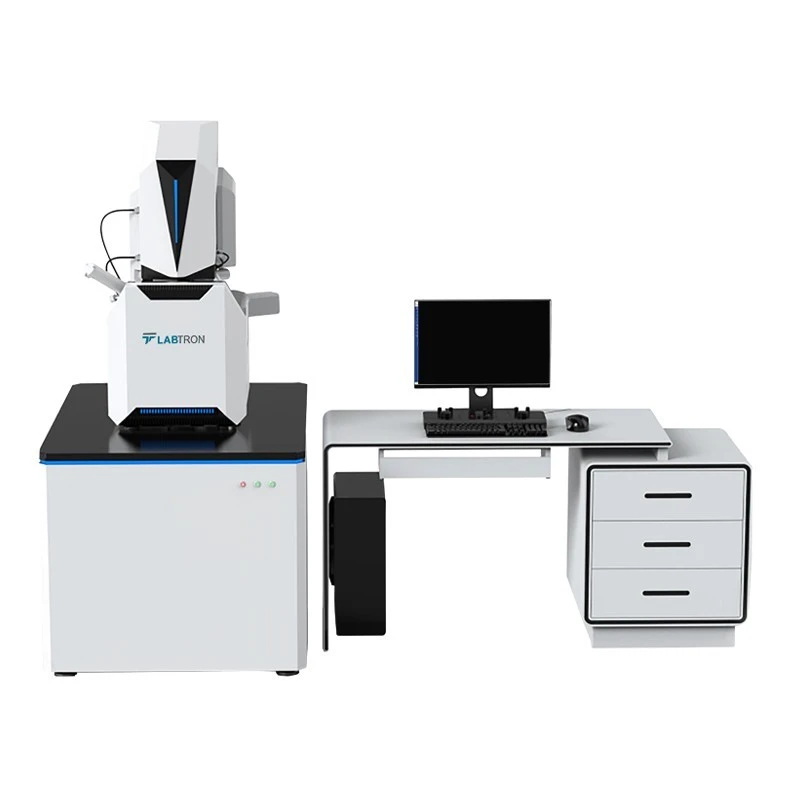

Labtron LSEM-A10 Scanning Electron Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Resolution | 1.0 nm at 15 kV (SE) / 1.5 nm at 1 kV (SE) / 0.8 nm at 30 kV (STEM) |
| Display | Multi-Channel Display |
| Brand | Labtron |
| Power Supply | AC 220 V (±10%) / 50 Hz / 2 kVA |
| Voltage (V) | 20 V to 30 kV |
| Humidity | Less than 50% |
| Detector | Secondary Electron Detector (ETD) / High Angle Electron Detector in lens |
| Model | LSEM-A10 |
| SOFTWARE | SEM Operation Software |
| Temperature | 20 to 25°C |
| Type of Product | Microscope |
| Magnification | 1× to 2 /500 /000× |
| Camera | Vertical Optical Navigation CCD / Horizontal Monitoring CCD |
| Working Stage | 5 Axes Auto Stage / X — 120 mm / Y — 115 mm / Z — 150 mm / T — -10° to +90° / R — 360° |
| Electron Gun | Schottky Field Emission Electron Gun / In-cylinder Deceleration / Electromagnetic Composite Objective / Water-cooled Thermostatic Objective |
| Vacuum System - Type | Fully Auto Control Oil Free Vacuum |
| Sample Room Pressure | ≤ 5×10⁻⁴ Pa |
| Electron Gun Pressure | Less than 9×10⁻⁸ Pa |
| Mechanical Pump Flow Rate | Greater than 6 m³/h |
| Turbo Molecular Pump Flow Rate | Greater than 240 L/s |
| Ion Pump Flow Rate | Greater than 25 L/s |
| Navigation | Gesture navigation |
| Image Enhancement | Auto Brightness Contrast / Auto Focus / Auto Astigmatism |
| Image Format Support | TIFF / JPG / BMP / PNG |
| Computer Specs | 16 GB RAM / 512 GB SSD / 24" Monitor / Windows 10 |
| Installation Room - Size | L Greater than 3000 mm / W Greater than 4000 mm / H Greater than 2300 mm |
Key Features
- High-pressure Super Tunnel technology ensures resolution at low voltage
- No crossover in the electronic optic path improves resolution
- Water cooling constant temperature objective lens ensures stability
- HD photos of sample station helps in quick sample location
- Quick adjustment of astigmatism for improved imaging
- One-click functions enables fast imaging
- Adjusts brightness and contrast for optimal image clarity
- Allows for widefield observation to obtain overall morphology
- Rich scalability of Scanning Electron Microscope
Product Description
Scanning Electron Microscope LSEM-A10 provides high brightness for achieving excellent quality images. It offers magnification of 1 to 2,500,000x and has an accelerating voltage of 20 V to 30 kV. The main goal of this microscope is to yield high-resolution imaging and effective navigation. This device has a wide range of applications in various scientific and industrial fields.
Applications:
Scanning Electron Microscope has a wide range of applications across different fields such as chemical, biomedical, environmental protection, nanotechnology, etc.
Optional Accessories:
- BSE (Backscattering Electron) Detector
- EDS (Energy Dispersive Spectroscopy)
- EBSD (Electron Backscatter Diffraction)
- EDS + EBSD System
- STEM (Scanning Transmission Electron Microscopy)
- EBIC (Electron Beam-Induced Current)
- CL (Cathodoluminescence)
- Knob Control Panel & Trackball
- Sample Exchange System
- Beam Gate & Electron Optics
- Low Vacuum Detector (LV Module, Works with BSE)
- Double Anode (Tetrode)
- Tungsten Filament (6 pcs in 1 box)
- Large Size Image Stitching Software
