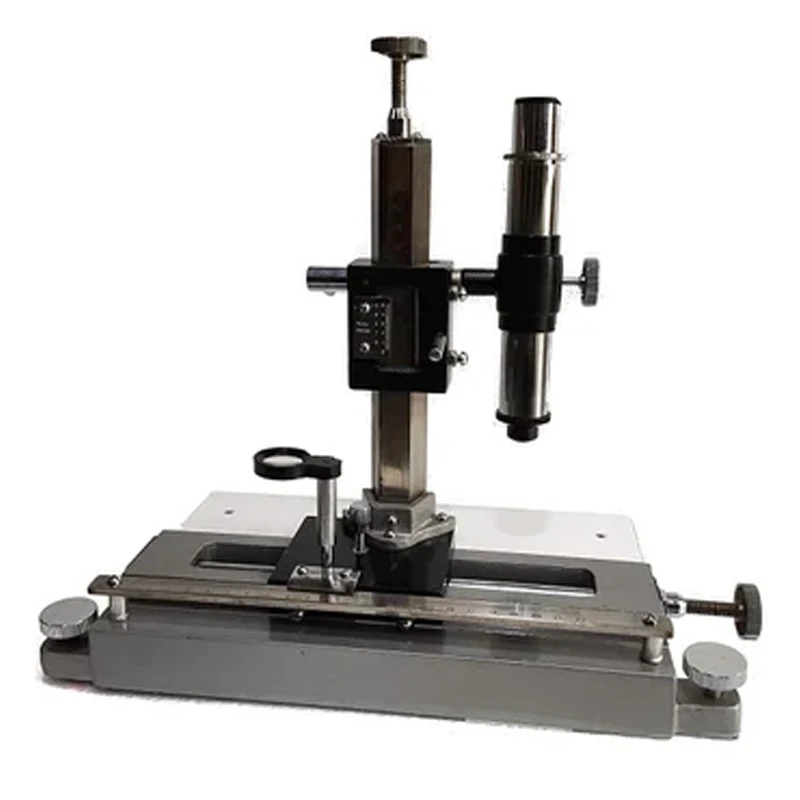

Travelling Microscope XY Motion - Intermediate
Specifications
| Material | Cast Iron |
|---|---|
| Type | Travelling Microscope |
| Applications | Laboratory |
Key Features
- Consists of a cast iron base fitted with three levelling screws, thoroughly aged and machined over which slides a metal carriage. Slide can be clamped at any position by means of clamping screw
Product Description
Consists of a cast iron base fitted with three levelling screws, thoroughly aged and machined over which slides a metal carriage. Slide can be clamped at any position by means of clamping screw. A sliding carriage slides along a metal vertical pillar fitted on the horizontal carriage. The microscope with rack and pinion is fitted on this vertical carriage and can be clamped in a vertical or horizontal position. Stage for placing objects for measurement is fitted with Perspex sheet. Horizontal and vertical scales of brass steel. Achromatic lenses have been used. Horizontal scale 0 to 18/20cm, Vertical scale 0 to 16cm, 10x Eyepiece, FL 50 mm approx. Vernier reading 0.01 mm. Supplied in wooden case.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The travelling microscope features a cast iron base, which provides stability and support for the instrument.
The horizontal scale measures from 0 to 18/20 cm, while the vertical scale measures from 0 to 16 cm.
It is equipped with achromatic lenses, which are designed to reduce chromatic aberration and improve image quality.
The microscope includes a 10x eyepiece, allowing for magnified viewing of specimens.
The slide can be clamped at any position using a clamping screw, providing flexibility in positioning for measurements.
The vernier reading accuracy is 0.01 mm, allowing for precise measurements.
This model is intended for laboratory applications, making it suitable for various scientific measurements and observations.
The travelling microscope is supplied in a wooden case, providing protection and ease of transport.
The microscope is fitted on a vertical carriage that slides along a metal vertical pillar, allowing for vertical or horizontal positioning adjustments.
The horizontal scale measures 18/20 cm in length, while the vertical scale measures 16 cm in length.
The cast iron base is fitted with three levelling screws, which help stabilize the microscope during operation.
The metal carriage slides over the cast iron base, allowing for smooth motion in the XY direction for precise measurements.
