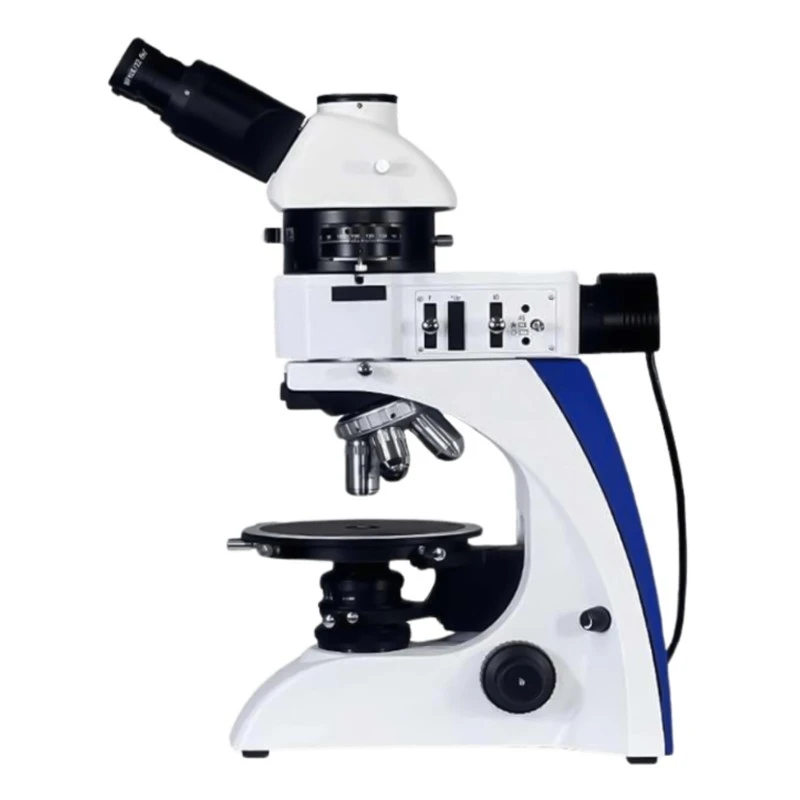

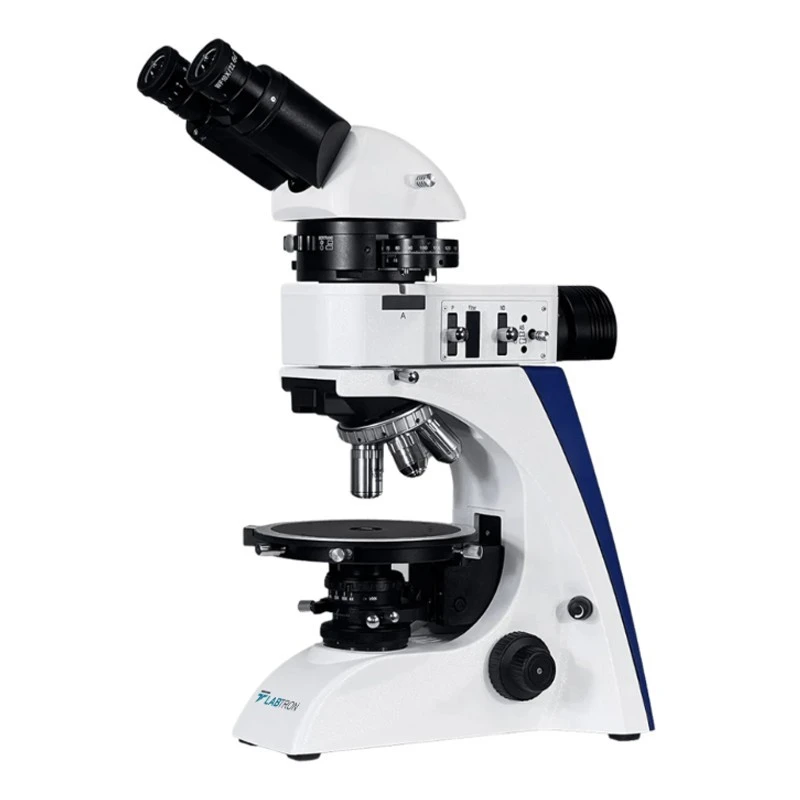

Labtron LPM-A14 Polarizing Microscope
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Labtron |
| Net Weight | 12.5 kg |
| Dimensions | 520mm × 470mm × 430mm |
| Model | LPM-A14 |
| Optical System | Infinite Optical System |
| Gross Weight | 16 Kg |
| Type of Product | Microscope |
| Illumination | Transmitted — 5W LED / Reflected — 5W LED / 100V–240V input |
| Focusing | Coaxial Coarse & Fine Adjustment / Range 25mm / Fine Stroke 0.2mm / Fine Division 0.002mm |
| Eyepiece | WF10x/22 mm (Reticule 0.1mm) |

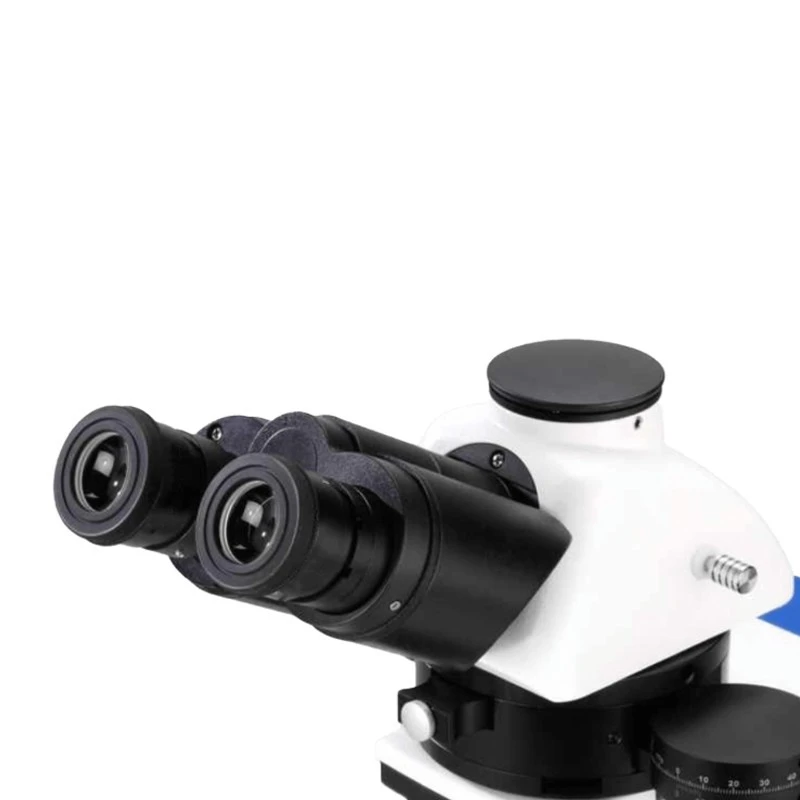

| Viewing Head | Seidentopf Trinocular Head / inclined at 30° / 360° Rotatable |
| Nosepiece | Quintuple nosepiece / center adjustable |
| Polarizing Unit | With Scale / Rotatable 360° / Can Be Locked |

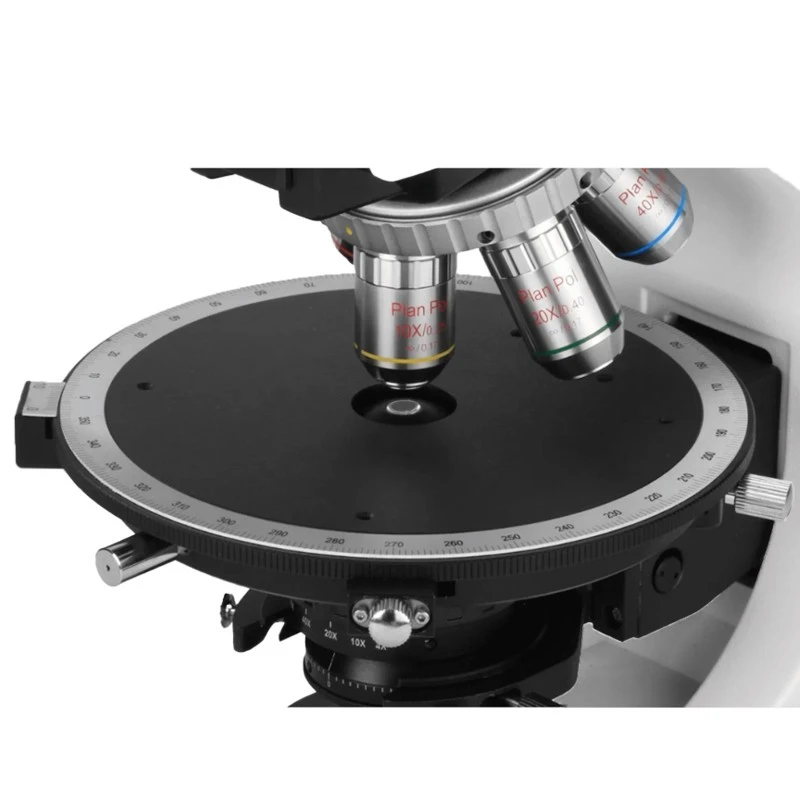

| Revolving Round Stage | Diameter Ø156mm / Rotatable 360° / Center Adjustable / Division 1° / Vernier Division 6′ |
| Swing-Out Condenser | N.A. 0.9 to 0.13 swing-out condenser |
| Infinite Strain-Free Plan Achromatic Objective (Transmitted) | 4X/0.10 / 10X/0.25 / 20X/0.40(S) / 40X/0.66(S) / 60X/0.80(S) |
| Stain-free Infinity Long Working Distance Plan Objectives (Reflected) | 50X/ NA 0.55 / WD equal to 10.0mm |

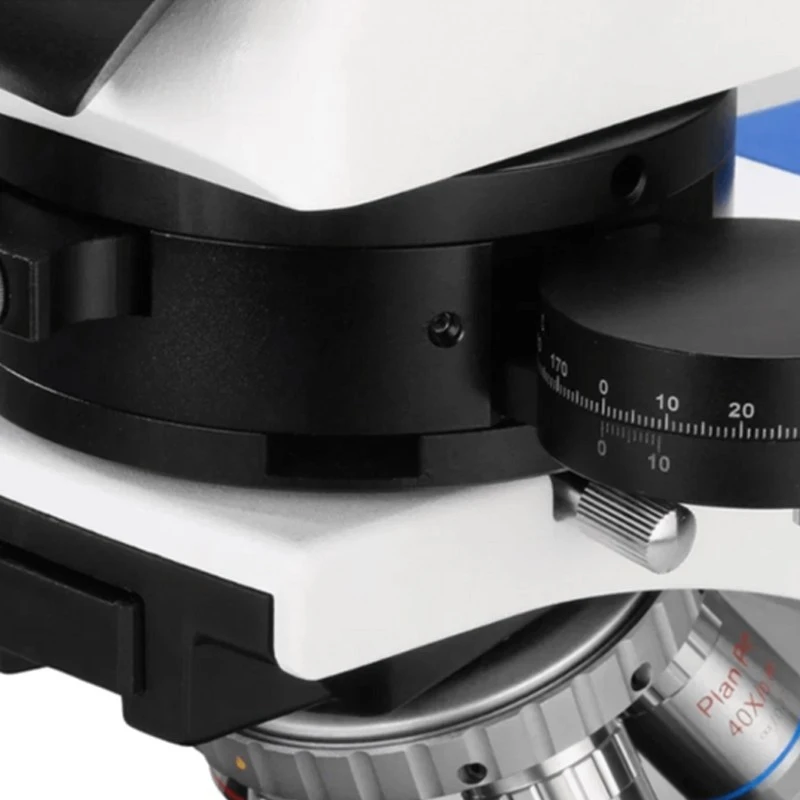

| Analyzer Unit | Rotatable 360° / module type / can be locked |
| Bertrand Lens | Built-in / center adjustable |
| Optical Compensator | λ Slip (First Class Red) / 1/4λ Slip / Quartz Wedge (I-IV Class) |
| Attachable Mechanical Stage | Polarizing Attached Mechanical Stage with X-Y movement |
Key Features
- Adjustable and lockable polarizing unit
- Durable and ergonomic microscope body
- Wide-field 10× eyepiece
- Attachable mechanical stage
- Coaxial coarse fine focus
- Optical compensator with quartz wedge
- High-resolution imaging system
Product Description
Polarizing Microscope LPM-A14 is designed with an infinite optical system and 5W LED transmitted illumination for high-resolution imaging. It includes a 360° rotatable analyzer unit and a Bertrand lens for precise polarization analysis. The microscope is equipped with a 100x water objective and a swing-out condenser for enhanced image clarity. Its unique centering nosepiece and rotatable stage ensure accurate sample positioning. Our Polarizing Microscope is suitable for research and analysis in geology, mineralogy, and material sciences.
Applications:
Our Polarizing Microscope LPM-A14 is used in geological studies, mineral identification, and material analysis. Its advanced optical system ensures detailed birefringent material examination for research and industry.
